Atomos Ninja Flame Basic Kit
Overview

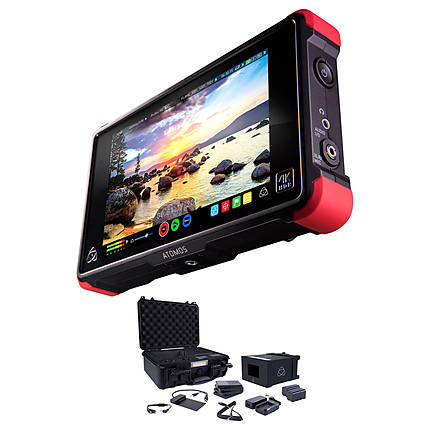

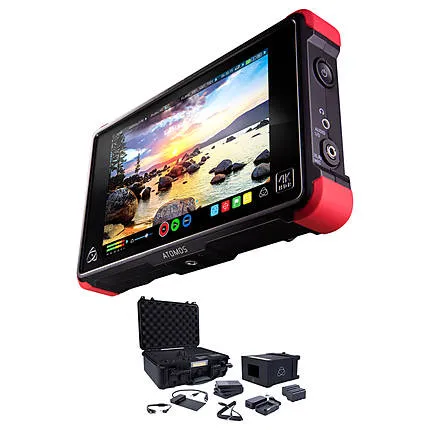

Advanced in technology and loaded with features, the Atomos Ninja Flame Basic Kit is an indispensable choice for every film set. The kit includes the Atomos Ninja Flame 7-inch 4K HDMI recording monitor, an AC adapter, a Master Caddy II 2.5-inch drive enclosure, and a travel case. The monitor has a 7-inch screen that offers a resolution of 1920×1200 pixels and comes with a 1500 cd/m² brightness rating. The inbuilt 4K HDMI ports support clean 4K UHD video signals at a resolution of 3840×2160 pixels. The monitor records videos, using the 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs, to a 2.5-inch HDD or an SSD, which can be attached by using the included Master Caddy II. The included travel case lets you carry the monitor during your travels.
In the Box
- Atomos Ninja Flame Basic Kit
- Ninja Flame 4K HDMI recording monitor
- 7” screen with 1920×1200-pixel resolution
- 1500 cd/m² brightness rating
- 4K HDMI ports
- Records to 2.5” SSD/HDD
- Master Caddy II drive enclosure
- AC adapter
- Travel case
- AtomHDR technology
- Inbuilt armor with silicone-covered corners
- Material: ABS polycarbonate
Brand
brand
| Brand | Atomos |
display & viewfinder
| Screen Size | 7.1" (18 cm) |
| Display Type | IPS capacitive touchscreen |
physical specifications
| Dimensions | 8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm) |
| Weight | Without Batteries & Media: 1.4 lb (0.62 kg); With Batteries & Media: 2.3 lb (1.06 kg) |
a/v mode
| Video Resolution | 1920 x 1200, 325 ppi |
camera attributes
| Aspect Ratio | Native: 16:9 |
detailed specifications
| Power Requirements | 6.2 to 16.8 VDC (battery or DC power input) |
| Material | ABS polycarbonate |
| Max. Power Consumption | 10 to 24 W |
| Battery Life | 5200 mAh: Up to 1.5 hours (monitor and record 4K); 7800 mAh: Up to 2.2 hours (monitor and record 4K) |
power system
| Battery Type | 2 x Sony L-Series type |
paper handling
| Brightness | 1500 cd/m² |
