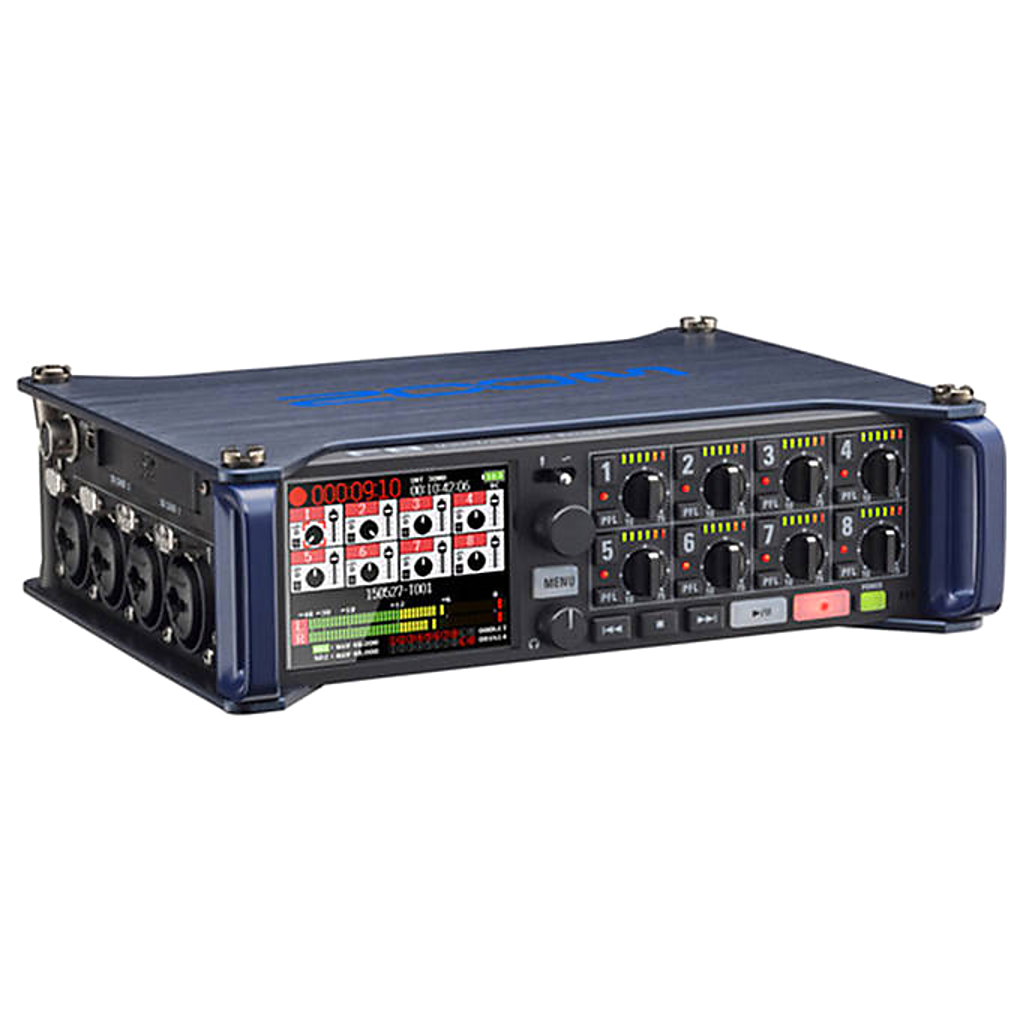

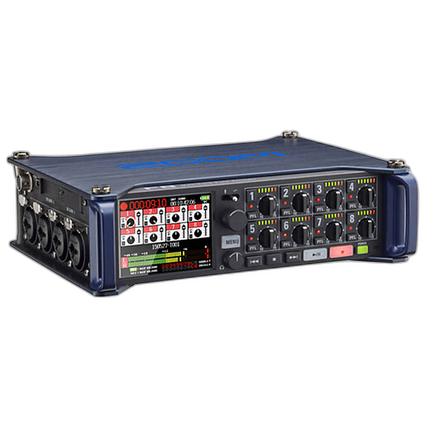

Zoom F8 Multi-Track Field Recorder

Name: Zoom F8 Multi-Track Field Recorder
Brand: Zoom
SKU: RENZOM2018
Price: 699 USD
Availability: InStock

Zoom

Product # RENZOM2018MFR #RENZOM2018ASIN: RENZOM2018

ZoomProduct # RENZOM2018MFR #RENZOM2018ASIN: RENZOM2018

0.0(0) reviews

In Stock

$699.00

699 U-REWARDS

Sorry, this item is currently unavailable

In Stock

$699.00

699 U-REWARDS

Sorry, this item is currently unavailable

Have any questions?1-800-631-0300

Brand

(Zoom)

brand

Brand

Zoom

hardware & software data

Interface & Connectivity

As multi-track audio interface operation, Class: USB 2.0 high speed, Specifications: 44.1/48/96 kHz sampling rate, 16/24-bit bit rate, 8 in/4 out; Stereo Mix audio interface operation (no driver required), Class: USB 2.0 full speed, Specification: 44.1/48 kHz sampling rate, 16-bit rate, 2 in/2 out

detailed specifications

Batteries	8x AA
Impedance	XLR Inputs: 3.3 kOhms; Line Inputs: 22 kOhms; Main Outputs: Main Out 1/2: 150 ohms or less, Sub Out 1/2: 150 ohms or less, Headphones: 15 ohms or less; Time Code: Output Impedance: 50 ohms or less
Input Level	XLR Inputs: +14 dBu (at 0 dBFS, limiter ON); Time Code: 0.2 - 5.0 Vpp
Type of Outputs	Main Out 1/2: +10 dBV (normal output type), -20 dBV (mic output type), 1 kHz, 600 ohms load, Sub Out 1/2: +10 dBV (normal output type), -20 dBV (mic output type), 1 kHz, 600 ohms load, Headphone: 100 mW + 100 mW (1% or lower THD+N, 32 ohm load); Time Code: 3.3 Vpp
USB Port	Class: USB 2.0 high speed
Connectors	Inputs: 8x XLR/TRS combo jacks; Main Outputs: Main Out 1/2: TA-3 Connectors, balanced output (2: hot), Sub Out 1/2: 3.5 mm stereo mini unbalanced output jack, Headphone: 1/4" unbalanced stereo output jack; Time Code: BNC
Overall Frequency Response	Line Inputs: 10 Hz to 80 kHz
Frame Rate	23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
Recharging Time	Using a 32 GB card: 30:51:00 (48 kHz/24-bit stereo WAV), 7:42:00 (192 kHz/24-bit stereo WAV)

physical specifications

Dimensions	7.02 x 5.50 x 2.16" (178.2 x 139.8 x 54.8 mm)
Weight	2.1 lb (0.95 kg)
Color	Black

detailed specs

Dynamic Range

Line Inputs: 120 dB typ (-60 dBFS input, A-weighted); Main Outputs: D/A: 106 dB typ (-60 dBFS input, A-weighted)

power system

AC Adapter	AD-19 DC12V 2A (center plus)
Battery Type	When recording 2 channels at 48 kHz/16-bit, Alkaline Batteries: 7 hours or more, NiMH (2450 mAh): 9.5 hours or more; When recording 8 channels at 48 kHz/24-bit, Alkaline batteries: 2.5 hours or more, NiMH: 7 hours or more; When recording 8 channels at 192 kHz/24-bit with headphones, phantom power and display backlighting; NiMH (2450 mAH): 1.5 hours or more
