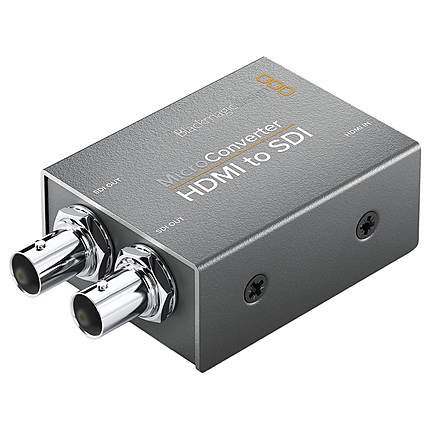

The Blackmagic Design Micro Converter HDMI to SDI transforms a single HDMI signal into two 3G-SDI signals. Ideal for professional video workflows, the converter automatically senses the input signals to determine the output resolution and format. You can update the firmware via the USB 2.0 port. A power supply cable and international adapters are provided with the converter.
Environmental Conditions | Operating temperature: 32 to 104°F / 0 to 40°C; Storage temperature: -4 to 140°:F / -20 to 60°C; Relative humidity: 0 to 90% non-condensing |
Power | Power input: 5 VDC via USB Micro-B; Power consumption: 2.0 W; Operational voltage range: 4.4 to 5.25 VDC |
Type of Outputs | 2 x SD/HD/3G-SDI BNC output; 1 x micro-USB |
Type of Input Connector | 1 x HDMI type A input |
Color Space | YUV and RGB |
Weight | 5.3 oz (150g) |
Dimensions | 3 x 1.8 x 1" (76 x 46 x 25mm) |
Brand | Blackmagic |
