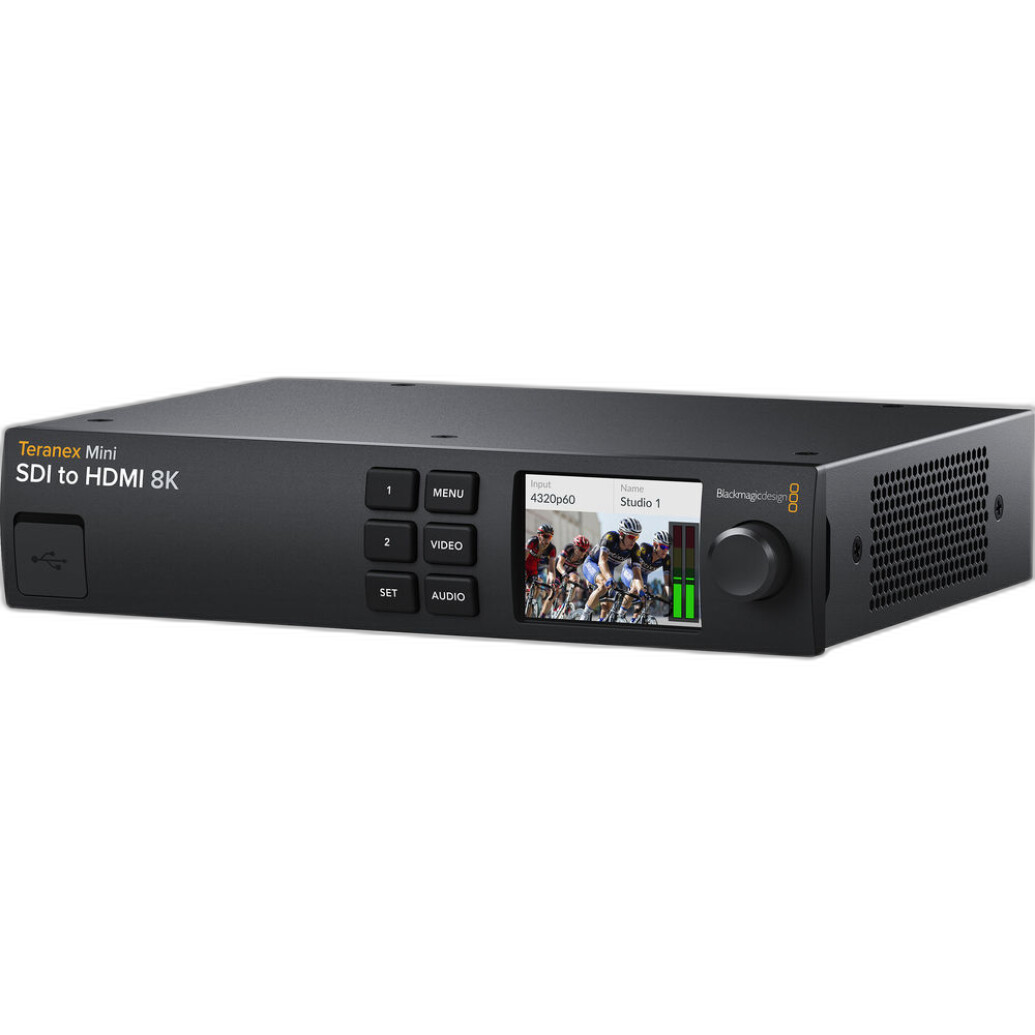

Blackmagic Teranex Mini SDI to HDMI 8K
Key Features
- Supports DCI 4K, DCI 8K, 4K, 8K, UHD, 2K, and HD
- 12G-SDI I/O and HDMI Outputs
- For converting SDI sources to HDMI in all HD, Ultra HD and 8K formats up to 4320p60
Recommended Accessories
Giottos Rocket Blaster Cleaning Kit
- Natural and environmentally-friendly rubber
- Air inlet value design prevents air's back flow from air nozzle
Zeiss Microfiber Cleaning Cloth
- Premium Zeiss microfiber cleaning cloth designed for safe cleaning of lenses, filters, eyeglasses, and optical surfaces
- Soft, lint-minimizing fabric helps remove dust, fingerprints, and smudges without scratching delicate coatings
Kinetronics Soft Microfiber Anti-Static Cloth - 10 Inch x 18 Inch (250x450)
- Kinetronics anti-static microfiber cloth
- Designed for cleaning photographic films
OVERVIEW
Advanced 8K HDMI monitoring solution for converting SDI sources to HDMI in all HD, Ultra HD and 8K formats up to 4320p60. Includes 4 HDMI 2.0 output connections, built in down converter, HDR formats, 33 point 10-bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration and more.
Brand
a/v details
| Video Connectors | 4x BNC (12G-SDI) |
| Other I/O | 1x RJ45 PoE<br>1x USB Type-C</br> |
| Power Connectors | 1x IEC C14 Input |
physical specifications
| Dimensions | 8.27" x 1.73" x 6.93" |
| Color | Black |
lens specification
| Weight | 2.65 lbs |
capture card attributes
| HDMI Output | HDMI (4:4:4/4:2:2 RGB, YUV) 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
monitor specifications
| Display Size | 2.2" |
wireless transmitter specifications
| Video Format (SDI/BNC) | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps |
- Blackmagic Teranex Mini SDI to HDMI 8K HDR
- Welcome wallet with QR code for software download
