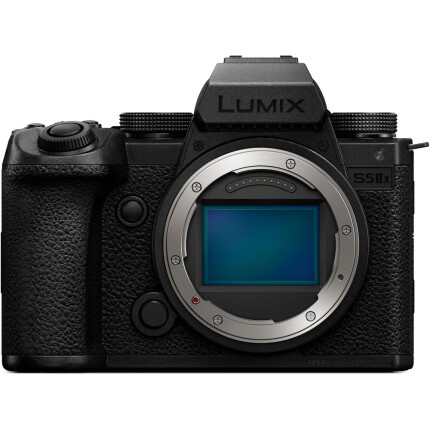

Panasonic LUMIX S5IIX Hybrid Full Frame Mirrorless Camera (Body Only)
Key Features
- New 24.2MP Image Sensor and New Engine with L² Technology
- Phase Hybrid AF
- 4:2:2 10-bit C4K/4K 60p/50p Unlimited Rec Time
- 6K 30p/25p 4:2:0 10-bit
- HFR 4:2:2 10-bit C4K/4K 48p, FHD 120p/100p, S&Q 10-bit C4K/4K 1-60fps, FHD 1-180fps
- 96MP High Resolution Mode
- REAL TIME LUT
- Active I.S. Technology
- 14+ stops of V-Log/V-Gamut / Dual Native ISO/Cooling Fan/Double SD Slot
- HDMI RAW video data output
- High-bitrate video (USB-SSD recording, All-Intra recording, ProRes recording)
- Live Streaming (Wireless IP streaming, USB tethering to smartphones, Wired IP streaming)
- First Lumix All-Black Design
- Weather-Sealed Construction
OVERVIEW
Offering fast, accurate phase hybrid autofocus, the LUMIX S5IIX mirrorless camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus) with 5-axis Dual I.S. 2 image stabilization and an imaging engine that's been developed to achieve high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14+ stop V-Log/V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and livestreaming, the S5IIX is developed to meet the demands of ambitious creators with an assertive shooting style. With 5.8K Pro-Res, Pro-Res internal, RAW over HDMI, Wireless/Wired IP streaming.
24.2-Megapixel 35mm Full-Frame CMOS Sensor: Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L² Technology
Fast, Accurate Phase Hybrid Autofocus: Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects
Powerful Image Stabilization: LUMIX newly developed Active I.S., which supports walking shots, to further enhance image stabilization in video recording
Expressive Video Functionality: 14+ stop V-Log/V-Gamut capture delivers a high dynamic range and broad colors; in-camera photo and video color grading; 5.8K Pro-Res, Pro-Res internal, RAW over HDMI, Wireless/Wired IP streaming
Unlimited Video Recording and Livestreaming: Heat dispersion mechanism combines a small fan and high-efficiency heat sink to achieve unlimited video recording and livestreaming while keeping the camera size compact
Brand
camera attributes
| Image Sensor Size | 35.6 x 23.8 mm (Full-Frame) CMOS |
| Electronic Shutter | Electronic Front Curtain Shutter 1/2000 to 60 Seconds Up to 30 Minutes in Bulb Mode Electronic Shutter 1/8000 to 60 Seconds Up to 60 Seconds in Bulb Mode |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Lens Mount | L-Mount |
| Image Sensor Type | CMOS |
| Recording File Format (Image) | JPEG, Raw |
| Recording File Format (Video) | H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit |
| Aspect Ratio | 1:1, 2:1, 3:2, 4:3, 16:9, 65:24 |
| Continuous Shooting | Mechanical Shutter Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Electronic Shutter Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG) Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| ISO Sensitivity | 100 to 51,200 (Extended: 50 to 204,800) |
| White Balance Mode | 2500 to 10,000K Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Self Timer | 2/10-Second Delay |
| Maximum Resolution | Actual: 25.28 Megapixel Effective: 24.2 Megapixel (6000 x 4000) |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Audio Recording | MP4 / AAC |
| Autofocus Points | Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set. |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Camera Body Weight | Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap) |
| Mechanical Shutter | Yes / 1/8000 to 60 Seconds Up to 30 Minutes in Bulb Mode |
| Extended ISO | 50 to 204,800 |
| Camera Format | Mirrorless |
physical specifications
| Weight | 1.45 lb / 658 g (Body Only) 1.64 lb / 744 g (With Recording Media) |
| Dimensions | 5.29 x 4.03 x 3.55" / 13.44 x 10.24 x 9.02 cm (Without Protrusions) |
focusing control
| Focus Modes | AFS (Single) / AFC (Continuous) / MF |
flash attributes
| Maximum Sync Speed | 1/250 Second |
| Built-in Flash | No |
| Flash Modes | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| External Flash Connection | Hot Shoe |
power system
| Battery Type | 1 x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots) |
lens specification
| Focus Type | AFS (Single) / AFC (Continuous) / MF |
| Mount Type | L-Mount |
detailed specifications
| Megapixels | Actual: 25.28 Megapixel Effective: 24.2 Megapixel (6000 x 4000) |
| Compatible Media | Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap) |
display & viewfinder
| Screen Size | 3" |
| Display Type | LCD |
| Monitor Resolution | 1,840,000 Dot |
| Viewfinder Resolution | 3,680,000 Dot |
| Diopter Adjustment | -4 to +2 |
interface
| Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Connectivity | Wifi / Bluetooth |
viewfinder specifications
| Viewfinder Type | Built-In Electronic (OLED) |
- Panasonic Lumix S5 IIX Mirrorless Camera
- Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
- AC Adapter
- USB-C to USB-A Cable Shoulder Strap
- Body Cap
- Hot Shoe Cover
- Battery Grip Connector Cover
