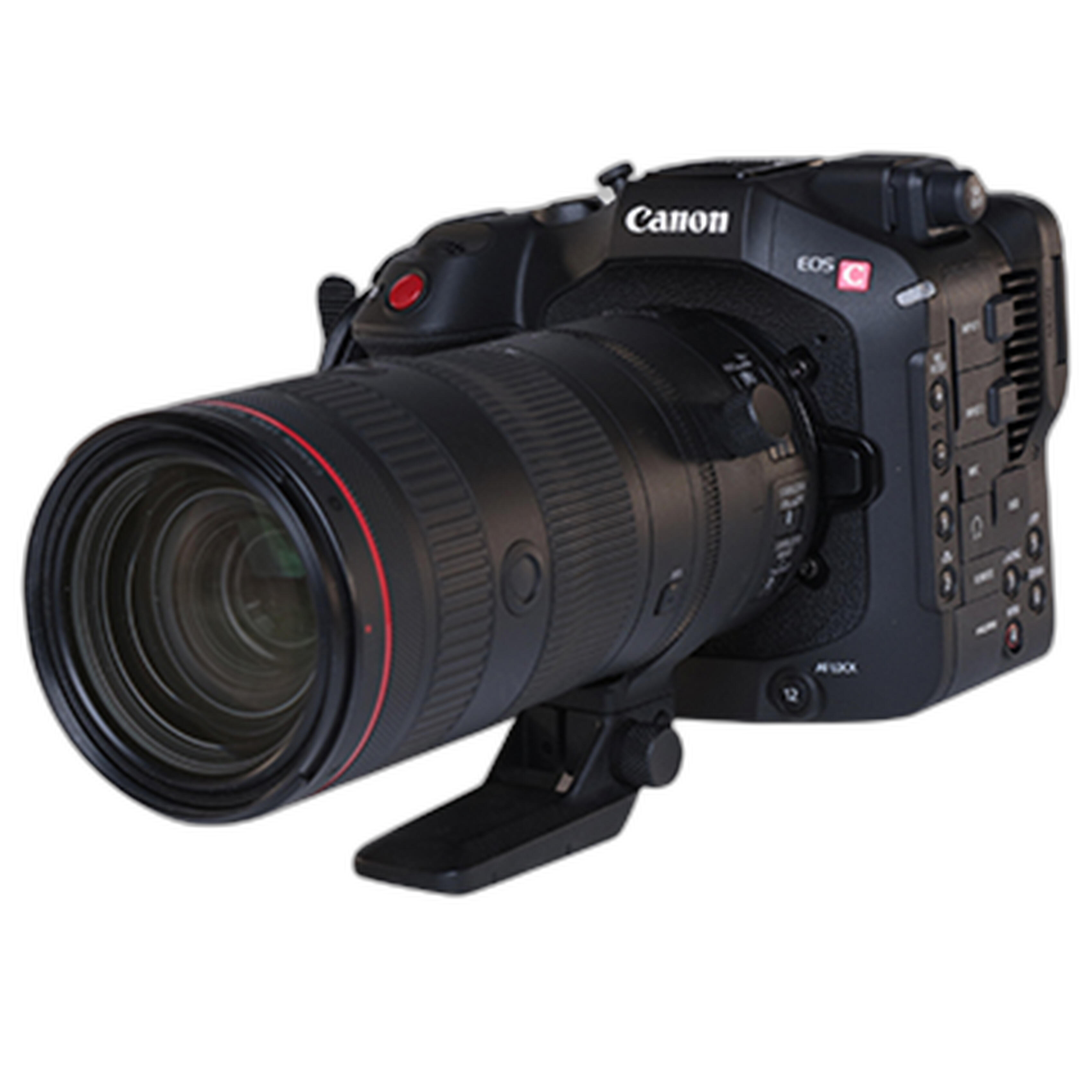

Canon EOS C80 RF 24-105mm F2.8L IS USM Kit

OVERVIEW

CANON C80

The EOS C80 camera is designed for limitless creative vision. The compact, full-featured camera body includes Canon’s 6K full-frame, Back-Illuminated Stacked CMOS sensor, Cinema RAW Light and 4K/120p internal recording, Canon’s next-generation Dual Pixel CMOS AF II, and a 12G-SDI interface. The C80 seamlessly integrates into almost any production providing the ultimate flexibility and outstanding image quality.

6K Full Frame Back-illuminated Stacked CMOS Sensor

The EOS C80 features our 6K back-illuminated stacked full frame CMOS sensor. The sensor offers exceptional low noise, enabling the camera to excel in a wide variety of lighting situations and maximizing the camera’s full dynamic range. The new sensor delivers faster read-out speeds than previous EOS sensors and when compared to a front-illuminated CMOS sensor, the new sensor’s architecture provides improved sensitivity as it increases light capturing efficiency and improves 4K image quality with 6K oversampling.

Triple Base ISO (800, 3200 and 12,800)

Our full frame 6K back-illuminated stacked sensor offers triple-base ISO, which allows the EOS C80 to deliver stunning imagery in a wide range of lighting conditions. With base ISOs of 800, 3200, and 12,800, you will be able to maximize the full dynamic range of the sensor in brilliantly lit or low-light shooting conditions.

Internal Recording: 6K 30P Cinema RAW Light, XF-AVC, XF-HEVC S and XF-AVC S

The EOS C80 can record up to 6K 30P in Cinema RAW Light.

Other recording options include our standard XF-AVC codec which can record in 10-bit 4:2:2 with oversampling from the 6K sensor, creating rich detail and smooth imagery, at frame rates up to 120P, without the need for cropping the image from the sensor. For slow or fast motion recording, the EOS C80 can support up to 4K 120P and 2K 180.

Two additional recording codecs are now available: XF-AVC S and XF-HEVC S. These formats feature an easy-to-manage naming system and folder structure, while recording in the familiar MP4 format and preserving metadata.

Additionally, the EOS C80 also supports 6K/60P HDMI RAW output.

High-frame Rate Recording With Auto Focus and Subject Detection

When recording in slow and fast motion (Slow & Fast, 4:2:2 10-bit), the EOS C80 enables Dual Pixel AF II for frame rates of 100 and 120fps and Subject Detection for frame rates between 72-120fps.

Dual SD Card Slots

The EOS C80 features two SD Card slots supporting simultaneous recordingii and a variety of recording modes, such as simultaneous recording for backup or proxy files for editing, simultaneous recording of different formats and resolutions, and relay recording, which is critical for lengthy video shoots. The slots are compatible with SD UHS-II, V90-class cards.

Dual Pixel CMOS AF II

The EOS C80 supports the next generation of Canon’s acclaimed Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II. The camera’s back-illuminated stacked sensor provides better light-capturing efficiency, widening the area of the sensor that can be used for AF.

EOS iTR AF X (People Detection)

With outstanding speed, precision, and a wide autofocus range, Dual Pixel CMOS AF II uses the EOS Intelligent Tracking and Recognition (iTR AF X) algorithm, developed with deep learning technology, to enable high-performance detection of human beings. In addition to human eyes, face, and head, the camera can detect a human body and follow it with high accuracy.?

EOS iTR AF X (Animal Detection)

iTR AF X Animal Detection detects the eyes, face, or the entire body of an animal to enable highly accurate focusing and tracking not affected by subject size or face orientationiii.

12G-SDI and a Variety of Interfaces?

The EOS C80 has a diverse set of interfaces making it a versatile camera for variety of productions. The EOS C80 distinguishes itself with built-in 12G or 3G SDI and a second full-sized BNC output for Time Code, which enable uncompressed video signal transfer with a secure cable connection.

Other interfaces include: two three-pin mini-XLR audio inputs (INPUT 1 and INPUT 2), a Microphone terminal (3.5mm stereo mini-jack), and REMOTE terminal (2.5mm stereo mini-mini), a full-size HDMI interface (HDMI OUT, Type A Terminal).

Ethernet, and Wi-Fi Control

The built-in Ethernet port and Wi-Fi enable Canon's IP-based remote control XC Protocol. XC Protocol maximizes operability and remote control of camera settings. Using the XC Protocol, the camera can be operated by Canon’s RC-IP1000 and RC-IP100 controllers (sold separately), and XC Protocol-enabled third-party remote control panels (RCP) can remotely shade the camera.

Additionally, Canon’s Remote Control Camera Application (RCCA) can control camera settings as well as multiple cameras. The camera also features SRT protocol, enabling IP streaming of video and audio.

Built-in ND Filters, Improved Body Design, Compact and Lightweight

The EOS C80’s compact mechanical ND filter assembly is specifically designed for the RF mount's short flange back. Buttons for direct control of ND filters are located on the right-hand side of the camera.

The EOS C80 provides up to ten stops of ND filtration, allowing users to shoot in various lighting conditions. The use of ND filters allows a camera operator to adjust exposure while maintaining the depth of field.

The RF mount’s short flange back allows the EOS C80’s body to be small and lightweight, making the camera just as comfortable on a drone or a gimbal as it is on your shoulder, a tripod, or any configuration where compact size and light weight are important.

Mount Adapter PL-RF with Cooke/i Technology Compatibility

The Mount Adapter PL-RF, new to the RF ecosystem, unlocks a broad assortment of PL mount lenses for Canon’s RF cameras. The adapter is compatible with Cooke/i Technology’s metadata protocol and includes lock plates to ensure a secure lens mount.

Auto Clear Scan Mode

The Auto Clear Scan setting available in the EOS C80, is an automatic shutter mode setting that can detect the frequency of light sources between 50.0 Hz to 2011.2 Hz to help reduce or virtually eliminate the flickering in some LED walls.

Canon Multi-Camera Control App

The EOS C80 is compatible with the Canon Multi-Camera Control App for iPhone.

This app empowers camera operators to have control over recording start and stop, focus, zoom and iris, ND Filters, ISO, Shutter, White Balance, Custom Picture and more, all while viewing the image from the camera.

Remote Control Camera Application

The EOS C80’s built-in Ethernet and Wi-Fi connectivity enables centralized control via the Remote Camera Control Application (RCCA). RCCA provides simultaneous camera control for up to nine cameras with video - achieving a "multi-camera operation".

At a video production or broadcasting site, an operator can select a camera from the videos displayed on the "Connected Camera List", within the application and operate it from the "Camera Control Area" in the control panel of the software. The software is included and can be installed immediately without having to prepare a hardware controller in advance making it easy to use for the operator while creating an effective one-person operation.


---

Canon RF 24-105mm f/2.8 L IS USM Z Lens

The RF24-105mm F2.8 L IS USM Z is the world’s first 24-105mm focal length lens combined with consistent f/2.8 aperture. With its constant f/2.8 max aperture, full-frame coverage, and its ability to zoom past the traditional 70mm roadblock to a true portrait-length 105mm, this lens is an incredible standard zoom solution for many different applications. An optional, dedicated Power Zoom Adapter PZ-E2 transforms the video operation possibilities with its smooth and versatile zooming. Even in low light, this lens will excel for weddings and events, photojournalism, portraiture, studio work, and video creation.

Outstanding Optical Performance with Consistent f/2.8 Maximum Aperture

By taking advantage of the large diameter RF mount and short back focus, the RF24-105mm F2.8 L IS USM Z is able to achieve a maximum aperture of f/2.8 throughout its entire zoom range. This enables you to continuously shoot up to the frequently used 105mm without switching lenses, opening a world of possibilities for both photo and movie shooting.

Supports Optional Canon Power Zoom Adapters

The RF24-105mm F2.8 L IS USM Z crosses the worlds of photography and movies. The optional Power Zoom Adapters PZ-E2 and PZ-E2B enable smooth, high-precision zoom control during movie shooting. Plus, attachment and detaching can be managed without the use of a special tool. The Power Zoom Adapter PZ-E2B comes equipped with a 20-pin port for compatibility with cinema or broadcast lens accessories such as zoom servo grip or focus demand. This lens and Power Zoom Adapter combination makes unassisted single-person video shooting operation easy and within reach.

Eleven Aperture Blades for Rich Bokeh

With eleven aperture blades and a large f/2.8 aperture, the RF24-105mm F2.8 L IS USM Z produces a beautiful, almost circular bokeh effect — even when stopped-down. The wide aperture also allows for faster shutter speeds in low light situations and helps prevent subject blurs.

Iris Ring for Precise Lens Aperture Control

The RF24-105mm F2.8 L IS USM Z is equipped with an iris ring (aperture control), the first among RF lenses.  This allows video users to manually control exposure adjustment and the degree of background blur while shooting video, with click-less, smooth operation — similar to the operability in a cinema lens.

Close-focusing to Under 1.5 ft., Max. Magnification 0.29x

With a minimum focusing distance of approximately 1.5 ft./0.45m, the RF24-105mm F2.8 L IS USM Z lens helps you get close to your subjects. The maximum magnification is 0.29x at 105mm, allowing you to capture subtle details more expansively and clearly. Focus shifts during zooming are minimal — plus, it supports focus breathing correction, in which the camera digitally corrects for changes in angle of view caused by focus movement during video recording, especially during closeup shooting.

Optical Image Stabilization

For consistently sharp results, the RF24-105mm F2.8 L IS USM Z features built-in optical Image Stabilization, providing enhanced shake reduction for up to 5.5 stops of shake correction. When paired with an EOS R-series camera that has In Body Image Stabilization (IBIS), the Coordinated IS allows for up to 8.0 stops of correction4. This means more reliable handheld performance and clear detail in low-light situations, without having to increase the ISO or decrease the shutter speed. Additionally, an IS Mode switch is featured for the first time among Canon RF standard zoom lenses.

Nano USM Maintains Focus While Zooming

The RF24-105mm F2.8 L IS USM Z features two Nano USM (ultrasonic motors) focus drive system, powering both its autofocus, and its “floating” optics which move independently to ensure maximum image quality. Nano USM provides quiet and smooth AF, especially useful during movie recording. In addition, the Nano USM maintains focus while zooming to suppress aberration fluctuations during high-speed burst or movie shooting.

Excellent Handling

With its fixed-length lens barrel design and balanced center of gravity, the RF24-105mm F2.8 L IS USM Z provides excellent handling for any shooting style and especially advantageous when using accessories for shooting video. The lens comes with a tripod mount that can be easily attached and detached with a lock release button, without the need of a special tool. Also available is the LH-E1 lens holder (sold separately), which supports the lens when combining with a rig.

Durable and Dependable Build

The RF24-105mm F2.8 L IS USM Z boasts amazing durability and endurance you’d expect from an L-series lens. The lens barrel does not move during zooming or focusing; both are achieved entirely internally.  Weather-resistant sealing is applied to areas such as the operation rings and switch panel to help prevent water and dust from entering the unit. Fluorine coating is applied on the front lens to prevent water, oil and other surface residue like fingerprints from sticking to the lens, which facilitates quick and easy wiping without the use of solvents. This dust- and water-resistant design allows for outstanding performance even in inclement weather conditions.
