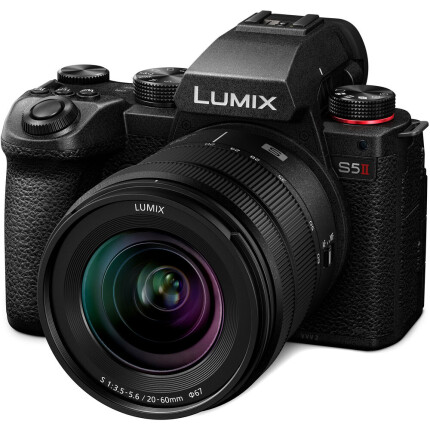

Panasonic LUMIX S5II Full-Frame Mirrorless Camera with 20-60mm Lens


Key Features
- New 24.2MP Image Sensor and New Engine with L² Technology
- Includes Panasonic Lumix S 20-60mm f/3.5-5.6 Lens
- Phase Hybrid AF
- 4:2:2 10-bit C4K/4K 60p/50p Unlimited Rec Time
- 6K 30p/25p 4:2:0 10-bit
- HFR 4:2:2 10-bit C4K/4K 48p, FHD 120p/100p
- S&Q 10-bit C4K/4K 1-60fps, FHD 1-180fps
- 96MP High Resolution Mode
- REAL TIME LUT
- Active I.S. Technology
- 14+ stops of V-Log/V-Gamut
- Dual Native ISO
- Cooling Fan
- Double SD Slot
Available for Rent
OVERVIEW
Offering fast, accurate phase hybrid autofocus, the LUMIX S5II mirrorless camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus) with 5-axis Dual I.S. 2 image stabilization and an imaging engine that's been developed to achieve high resolution, natural description, and approximately 2 x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14+ stop V-Log/V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and livestreaming, the S5II is developed to meet the demands of ambitious creators with an assertive shooting style.
24.2-Megapixel 35mm Full-Frame CMOS Sensor: Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L² Technology
Fast, Accurate Phase Hybrid Autofocus: Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects
Powerful Image Stabilization: LUMIX newly developed Active I.S., which supports walking shots, to further enhance image stabilization in video recording
Expressive Video Functionality: 14+ stop V-Log/V-Gamut capture delivers a high dynamic range and broad colors, plus a REAL TIME LUT function is provided to enable in-camera photo and video color grading, with LUT6K 30p Open Gate unlimited recording
Unlimited Video Recording: Heat dispersion mechanism combines a small fan and high-efficiency heat sink to achieve unlimited video recording while keeping the camera size compact
Brand

camera attributes
| Camera Format | Mirrorless |
| Electronic Shutter | Yes |
| Lens Mount | L-Mount |
| Extended ISO | Normal: Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) V-Log: Auto / 320* / 640-51200 (1/3 or 1 EV step) HLG: Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) |
| Light Metering Modes | Multiple / Center Weighted / Spot / Highlight Weighted |
| Audio Recording | MP4: H.264/MPEG-4 AVC, H.265/HEVCMOV: H.264/MPEG-4 AVC, H.265/HEVC MP4: H.264/MPEG-4 AVC, H.265/HEVCMOV: H.264/MPEG-4 AVC, H.265/HEVC MP4: H.264/MPEG-4 AVC, H.265/HEVCMOV: H.264/MPEG-4 AVC, H.265/HEVC MP4: H.264/MPEG-4 AVC, H.265/HEVCMOV: H.264/MPEG-4 AVC, H.265/HEVC MP4: H.264/MPEG-4 AVC, H.265/HEVC |
| Self Timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Camera Body Weight | Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap) |
| Recording File Format (Video) | H.264/MPEG-4 AVC, H.265/HEVC |
| Recording File Format (Image) | JPEG (DCF, Exif 2.31), RAW |
| Image Sensor Type | CMOS |
| Aspect Ratio | 3:2 |
| Image Sensor Size | 35mm full-frame (35.6mm x 23.8mm) |
| White Balance Mode | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
| Image Stabilization | B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] |
| Maximum Resolution | 12000x8000(XL) in 3:2 High Res Mode |
| Autofocus Points | AFS (Single) / AFC (Continuous) |
| Continuous Shooting | Yes |
flash attributes
| Flash Modes | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| Built-in Flash | No / TTL External Flash (sold separately) |
| Maximum Sync Speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. |
| External Flash Connection | TTL |
display & viewfinder
| Display Type | LCD |
| Monitor Resolution | Approx. 1.84 million dots |
| Screen Size | 3.0-inch (7.6cm), 3:2 aspect |
| Viewfinder Resolution | Approx. 3.68 million dots |
| Diopter Adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
interface
| Memory Card Slot | Slot 1, Slot 2 SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards |
| Connectivity | 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) 5GHz bands (STA) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3 / Bluetooth® v5.0 (Bluetooth Low Energy (BLE) |
physical specifications
| Dimensions | Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions) Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions) |
| Weight | Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap) |
lens specification
| Mount Type | L-Mount |
| Focus Type | Phase Detection AF system / Contrast AF system |
| Lens Filter Size | 67mm |
viewfinder specifications
| Viewfinder Type | OLED Live View Finder |
power system
| Battery Type | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) |
focusing control
| Focus Modes | AFS (Single) / AFC (Continuous) / MF |
detailed specifications
| Megapixels | 24 |
| Compatible Media | SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
- Panasonic LUMIX S5II Hybrid Full Frame Mirrorless Camera
- Panasonic Lumix S 20-60mm f/3.5-5.6 Lens
- Panasonic Lithium-Ion Battery
- AC Adapter
- USB Type-C to USB Type-A Cable
- Shoulder Strap
- Body Cap
