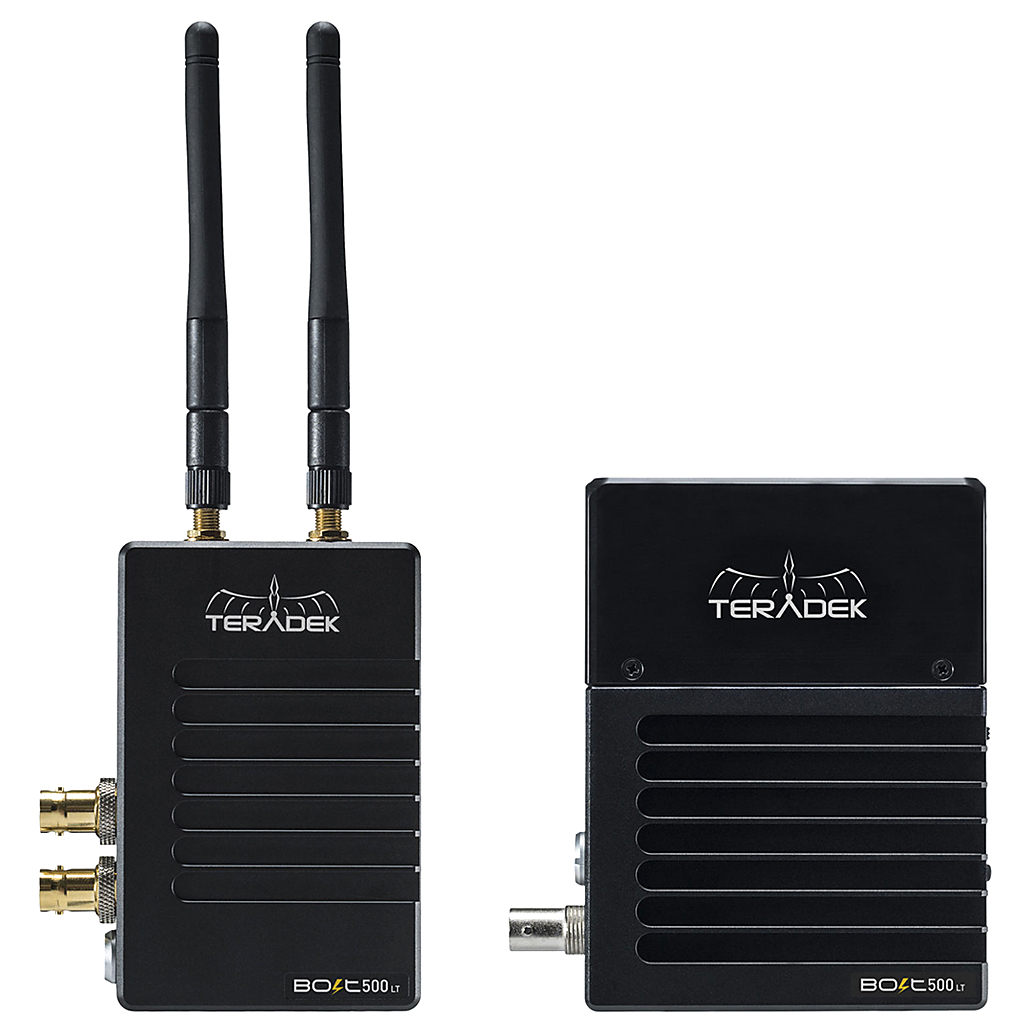

Used Excellent Teradek Bolt 500 LT 3G-SDI Wireless Transmitter and Receiver
Key Features
- Teradek Bolt 500 LT 3G-SDI Wireless Transmitter and Receiver
- Bolt 500 LT 3G-SDI Wireless Transmitter
- Bolt 500 LT 3G-SDI Wireless RX
- Working range of 500 feet
- 3G-SDI Input
- Zero latency
- 1080p60 resolution support
- AES-128 encryption
- 2.4 and 5.8 GHz noise rejection
- Transmitting capability of 4 receivers
- 2-pin connector
- D-Tap power cable included
OVERVIEW
Ideal for professional video production, the Teradek Bolt 500 LT 3G-SDI Wireless Transmitter and Receiver ensures zero latency for lossless 3G signals. You can use the Bolt LT with 3rd-generation Bolt systems. You can attach the transmitter unit to the camera or an HDMI recorder using the 1/4"-20 mounting holes, M3, or ARRI-standard connectors. A shoe mount is included in the kit for DSLRs and mirrorless cameras. With the provided antennas, the unit offers a working range of up to 500 feet in the line of sight. Both the transmitter and receiver has a built-in AES-128 encryption that ensures security against unauthorized interception of the signal. The noise-cancellation feature keeps the sound crisp when working within 2.4 and 5.8 GHz bands. These two units also include SDI ancillary data support such as metadata, timecode, and start/stop flags for select camera brands. You can power the transmitter and receiver with the built-in 2-pin connector. The included D-Tap power chord allows you to charge the battery internally.
Brand
brand
| Brand | Teradek |
hardware & software data
| Interface & Connectivity | Wireless Transmitter: Switches: On/Off and Reset, Desktop App: Feature-rich Bolt Manager application for OS X and Windows, USB Interface Functionality: Upgrade via mini-USB; Wireless RX: Switches: On/Off and Reset, Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows, USB Interface Functionality: 1 x USB 3.0 Micro |
power system
| Power Input | Wireless Transmitter: 2-pin connector, 7 to 17 VDC; Wireless RX: 2-pin connector, 7 to 17 VDC |
interface
| Video Output Terminal | Wireless Transmitter: 3G/HD/SD-SDI: 1 x BNC (75 Ohm); Wireless RX: 3G/HD/SD-SDI: 1 x BNC (75 Ohm, loop out) |
physical specifications
| Dimensions | Wireless Transmitter: 0.95 x 2.6 x 4.47" (2.41 x 6.6 x 11.35cm); Wireless RX: 1 x 3.4 x 4.5" (2.54 x 8.64 x 11.43cm) |
| Weight | Wireless Transmitter: 8 oz (226g); Wireless RX: 10.1 oz (288g) |
| Color | Black |
detailed specs
| Other Resolutions | Wireless Transmitter: 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080PsF: 30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 576i: 50, 480i: 59.94; Wireless RX: 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080psF: 30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 480i: 59.94, 576i: 50 |
detailed specifications
| Max. Power Consumption | Wireless Transmitter: Nominal 7.3 W (measured at 1080p60); Wireless RX: Nominal 7.3 W (measured at 1080p60) |
