Sennheiser XSW-D XLR Female Plug-On Transmitter Only (2.4 GHz)

Product #:
Manufacturer #:
  • XLR Microphone Input connector
  • For use with XSW-D wireless mic system
  • For Handheld and Shotgun Mics
  • Easy to use, Plug & Play operation
Battery Runtime:
5 Hours (Lithium Rechargeable)
Frequency Band:
2400 to 2483.5 MHz
Our Price: $179.95

Earn 360 U-REWARDS Loyalty Points

Usually Ships in 7-14 days.

Pickup unavailable at Fairfield, NJ

Alert icon Alert me when this item is in-stock

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).

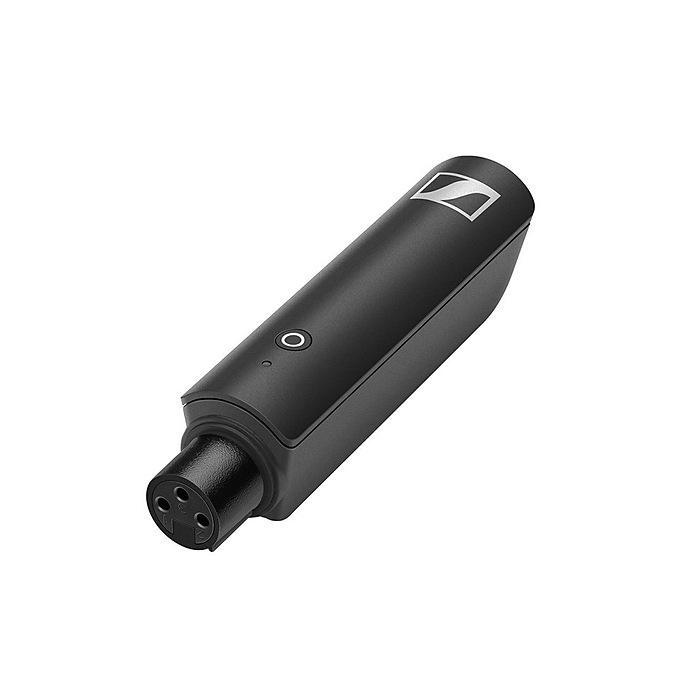

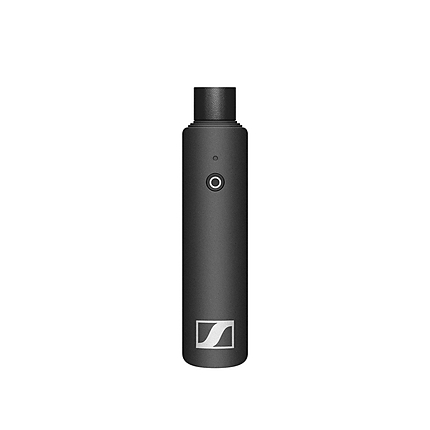

XSW-D XLR female plug-on TX is part of Sennheiser XSW-D digital wireless system, the XSW-D XLR female plug-on TX is available as individual component to be used as an additional transmitter or as a replacement unit. It features a XLR input connector ready to connect to your handheld dynamic vocal microphone or battery powered shotgun mic. This unit does not provide phantom power.


  • Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
  • 5-hour total battery life gives you plenty of performance time
  • Conveniently recharge batteries via USB while in operation or during breaks throughout the day
  • Up to five systems can be operated simultaneously in the same environment
  • Low 3.9ms latency with aptX Live codec designed to maximize digital wireless microphone performance
  • Mute from either transmitter or receiver
  • Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

Product Reviews

There are no reviews for this product.

Write a review


Detailed Specifications
Transmission System: 2.4 GHz
Transmission System:
This is the type of wireless transmission system for a remotely triggered device, such as a pocketwizard.

View All Attribute Definitions

Transmission Range: 250' / 76.2 m (Line of Sight)
Transmission Range:
This the range of operation for a wireless trigger system.

View All Attribute Definitions

Form Factor: Plug-On
Overall Frequency Response: 80 Hz to 18 kHz
Overall Frequency Response:
This is used to indicate the accuracy of electronic components or systems, primarily in audio equipment.

View All Attribute Definitions

Physical Specifications
Dimensions: 1.1 x 4 x 0.9" / 28 x 102 x 24 mm
The measurements of an object.

View All Attribute Definitions

Wireless Transmitter Specifications
Latency: <4 ms
Audio Input: XLR 3-Pin Female Unbalanced Input
Power System
Battery Capacity: 850 mAh
Battery Type: Built-In Rechargeable(Not Replaceable)
Battery Type:
The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries.

View All Attribute Definitions

Battery Runtime: 5 Hours (Lithium Rechargeable)
Brand: Sennheiser
Two-Way Radio Specifications
Frequency Band: 2400 to 2483.5 MHz

In The Box

  • XSW-D XLR Female TX Plug-on Transmitter (2.4GHz)
  • USB-A to USB-C charging cable
