Sennheiser XSW-D Vocal Set Wireless (2.4 GHz)
Key Features
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
Overview

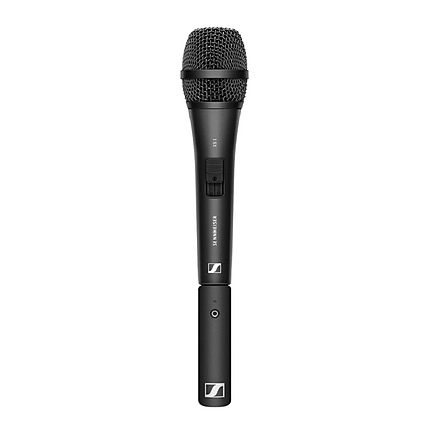

XS Wireless Digital Vocal Set. One-touch ease-of-use wireless audio set with XSW-D XLR female transmitter, XSW-D XLR male receiver, XS 1 cardioid dynamic vocal microphone, mic clip and USB-A to USB-C charging cable.
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an XS 1 microphone, this elegant solution makes wireless vocals easier than ever before while maintaining a reliable connection.
Brand
wireless receiver specifications
| Power Supply | Built-In USB-Rechargeable Lithium-Ion |
| Audio Output | Consumer Line-Level Output Only: -12 dBu (Maximum) |
detailed specifications
| Type of Microphone | Handheld Microphone |
| Signal-to-Noise Ratio | >=106 dB |
| Transmission Range | 250' / 76.2 m (Line of Sight) |
| Overall Frequency Response | 80 Hz to 18 kHz |
| Frequency Range | 2.400 to 2.483 GHz |
microphone specifications
| Form Factor | Handheld |
| Frequency Response | 55 Hz to 16 kHz |
| Impedance | Nominal Impedance: 300 Ohms (At 1 kHz) Terminating Impedance: 1 kOhm (Minimum) |
| Polar Pattern | Cardioid |
| Transducer Principle | Dynamic |
| Connector Type | XLR-Male |
| Weight | 0.73 lb / 330 g (Without Cable) |
| Sensitivity | 1.8 mV/Pa (Free Field, No Load at 1 kHz) |
physical specifications
| Dimensions | 4.0 x 0.9 x 1.1" / 102 x 24 x 28 mm |
| Dimensions | 1.9 x 7.1" / 48 x 180 mm |
| Dimensions | 4.3 x 0.9 x 1.1" / 109 x 24 x 28 mm |
wireless transmitter specifications
| Power Supply | Built-In USB-Rechargeable Lithium-Ion |
| RF Output Power | 10 mW |

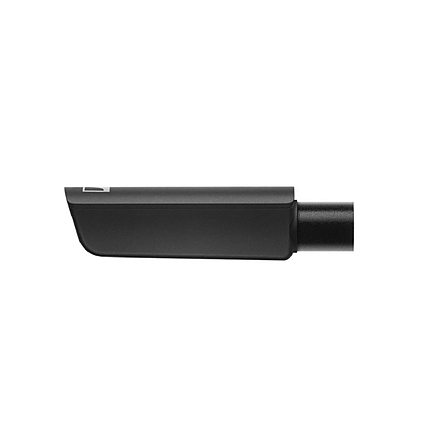

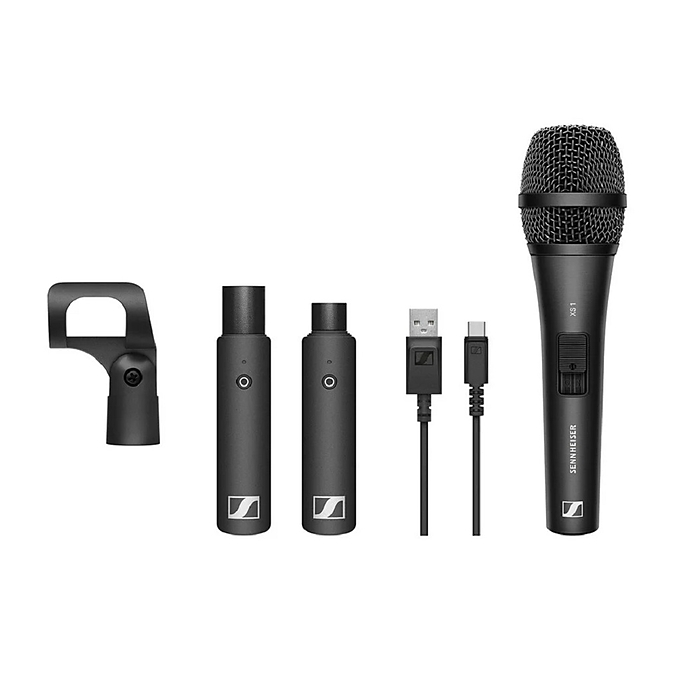

- XSW-D XLR female transmitter

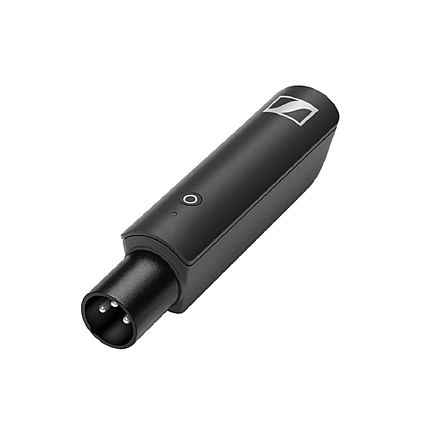

- XSW-D XLR male receiver

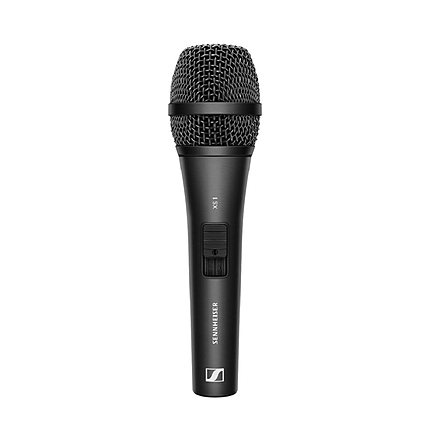

- XS 1 cardioid dynamic vocal microphone

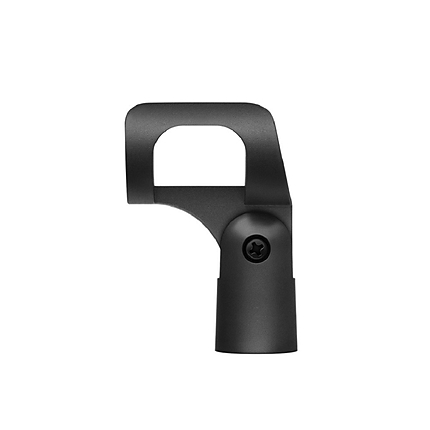

- Mic clip

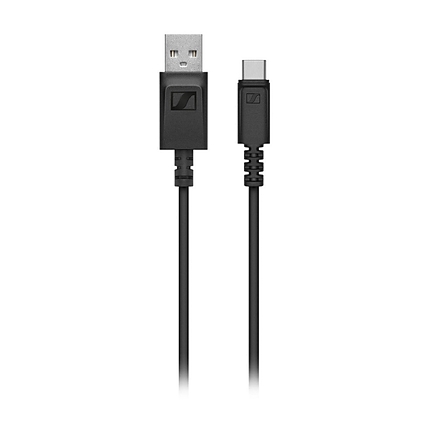

- USB-A to USB-C charging cable
