Sennheiser AVX-835 SET Digital Camera-Mount Wireless Handheld Mic Set 1.9GHz
Key Features
- Fast-Setup System for DIY Videographer
- MMD 835 Dynamic Cardioid Mic Capsule
- Lightweight Handheld Transmitter
- Ultra-Compact Plug-In Receiver
- Plugs directly into XLR audio input
- Switches on/off by P48 Phantom power
- Optimized dynamic range
- Auto frequency management
- AES 256 encryption
- License free
- Accessories included for DSLR use
- Metal housing
- Made in Germany
Overview

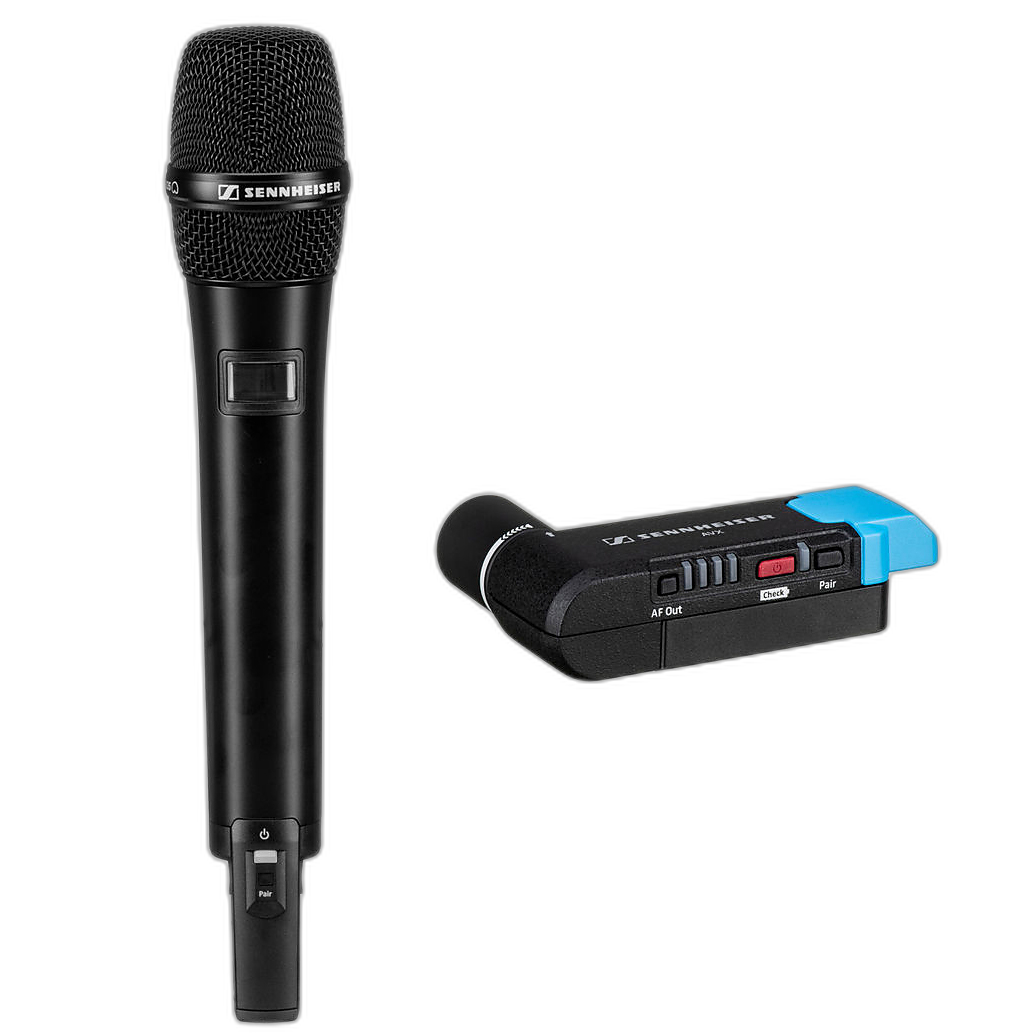

The AVX-835 SET includes a handheld microphone, the plug on receiver and all accessories to operate out of the box with camcorders as well as DSLR cameras. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone. From professional wedding video to documentaries, from street interviews to corporate videos, the AVX just works allowing you to concentrate on creativity.
Brand
wireless receiver specifications
| Power Supply | Battery (1 x Sennheiser Accupack Included), Bus Power (USB) |
| Audio Output | XLR Output: -30 to 0 dB (Balanced) |
| Weight | 3.1 oz / 87 g (with Batteries) |
| Antenna Connector | https://www.bhphotovideo.com/c/product/1135457-REG/sennheiser_avx_835_set_4_us_avx_wireless_handheld_set.html/specs |
| RF Sensitivity | 15 dBm |
detailed specifications
| Type of Microphone | Handheld Microphone |
| Signal-to-Noise Ratio | > 90 dB(A) |
| Runtime | > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack) |
| Overall Frequency Response | 20 Hz - 20000 Hz |
| Frequency | 1880 - 1930 MHz (Country specific) |
microphone specifications
| Form Factor | Handheld Capsule |
| Polar Pattern | Cardioid |
| Capsule | Dynamic |
| Sound Field | Mono |
| Sensitivity | 2.1 mV/Pa |
| Maximum SPL | 154 dB SPL Peak |
wireless transmitter specifications
| AF Frequency Response | 50 Hz to 20 kHz (Mic) |
| Weight | 9.9 oz / 282 g (without Batteries) |
| Power Supply | Battery (1 x Sennheiser Accupack Included), Bus Power (USB) |
| RF Output Power | Up to 250 mW |
| Material | Metal |
physical specifications
| Dimensions | 1.6 x 10.8" / 40 x 275 mm |
| Dimensions | 0.8 x 2 x 3.2" / 21 x 51 x 81 mm |
| Color | Black |
- Plug-on receiver
- Energy pack
- Hot shoe mount
- Beltclip
- XLR to mini jack cable
- USB charger
- USB charging cable
- Handheld transmitter
- MMD 835 microphone head
- Energy pack
- Microphone clamp
- Pouch
