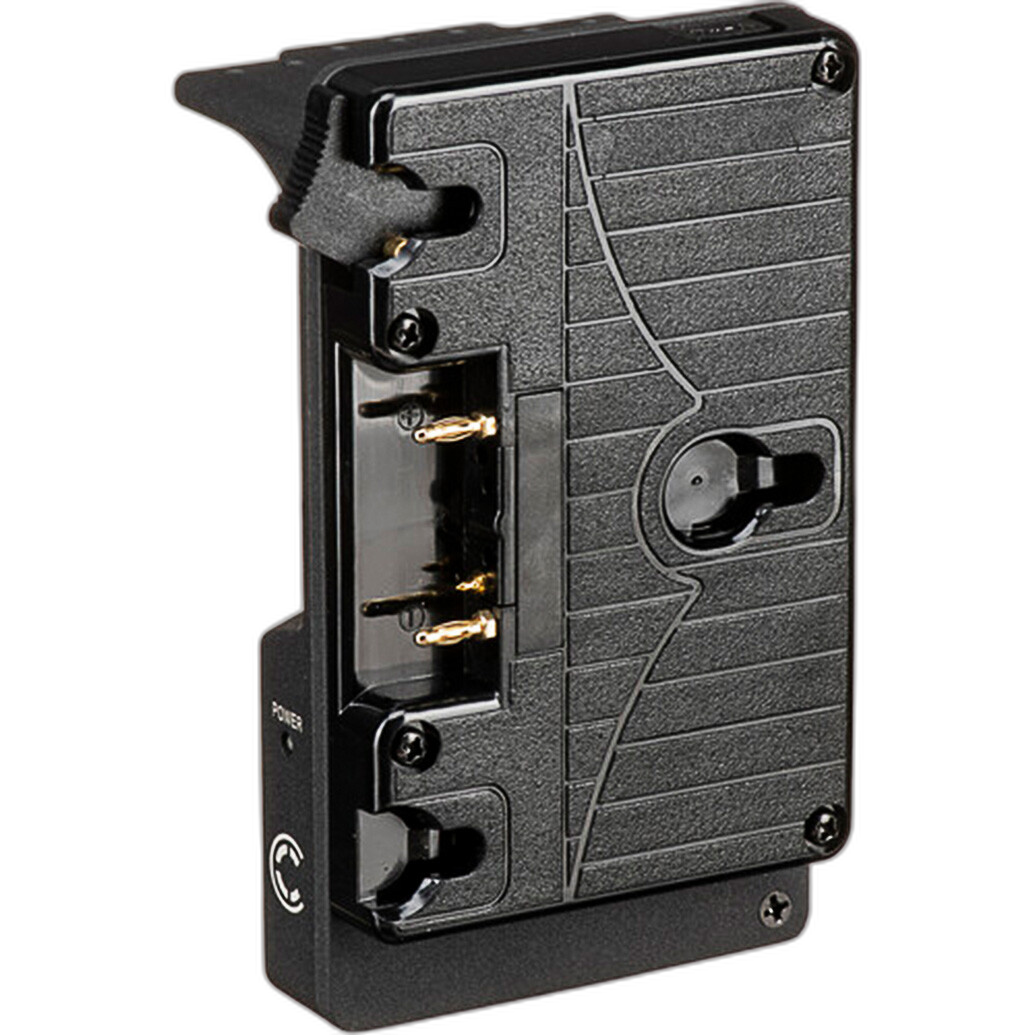

Core SWX Battery Plate for Sony PXW-FX9 (Gold Mount)

Questions? Ask our experts
Key Features
- Attaches Directly to Rear of the Camera
- Connects via 19.5 VDC Output Cable
- 4-Pin XLR Input for Hot-Swapping
- Two D-Tap Outputs
- Compatible with Core SWX Hypercore 150Wh Battery (Gold Mount)
Questions? Ask our experts
overview
The CXA-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminum product inserts into the battery slot of the camera and also attaches into the top of the camera(with included screw hardware) to provide a secure platform for mounting gold mount batteries directly onto the FX9 camera. It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories and three 1/4-20 threads on the top to attach accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.
A BP-U30 or BP-U35 battery pack fits inside of the battery cavity on the camera, allowing the user to hotswap batteries. Once the 3-stud on-board pack dies, it will automatically pull power from the BP-U30 and you will see the battery indication on the viewfinder change. To make it easier to take the CXA-FX9 plate on-and-off, M4-8mm thumbscrews can be purchased separately.
Brand
battery/charger attributes
| Weight | 1.2 lbs / 0.54 kg |
| Dimensions | 5.4 x 3.35 x 3.7" |
| Connector | 1 x DC Jack | 1 x 4-Pin XLR | 2 x P-Taps | 3 x 1/4-20 threads |
battery adapter attributes
| Battery Adapter Type | Gold Mount |
power system
| AC Input | 11.9 to 16.8 VDC |
| DC Output | 19.5 VDC (DC Jack) |
