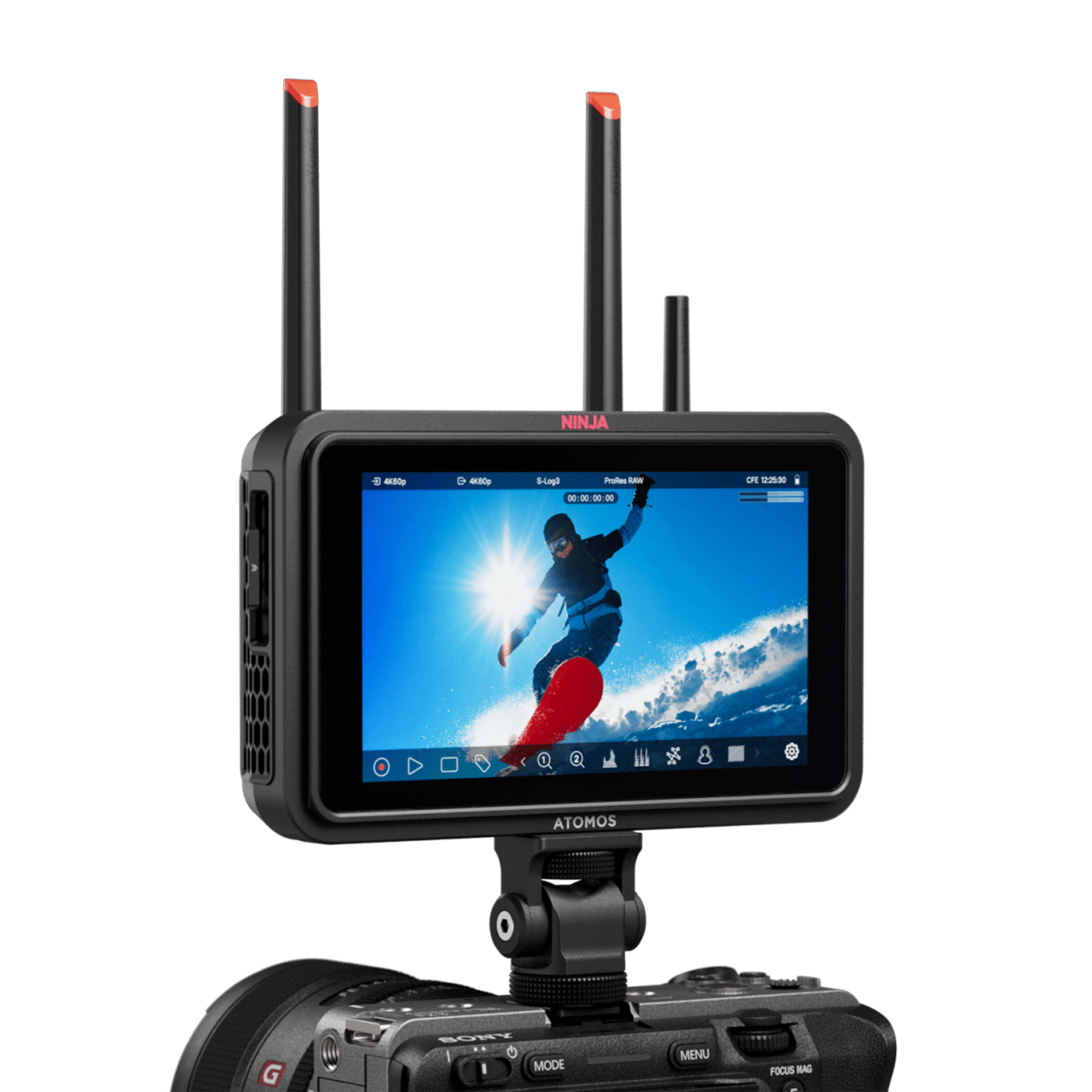

Atomos Ninja TX 5.2in Monitor and Recorder
Product # AVR094MFR #ATOMNJTX01ASIN: none
0.0(0) reviews
In Stock
$999.00
1998 U-REWARDS
Pickup at Fairfield & Philadelphia
- Record in Apple ProRes, Avid DNx or H.265/H.264
- Capture to CFexpress Type B or USB-C storage
- Super-bright, 1500nit 5-inch touchscreen display
- HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
- Direct upload to ATOMOSphere, Frame.io, Dropbox
- Timecode sync over RF or Bluetooth
- Powered by USB-C, NP-F battery or AC adaptor
- Get 20GB cloud storage FREE with ATOMOSphere
In Stock
$999.00
1998 U-REWARDS
Pickup at Fairfield & Philadelphia
Have any questions?1-800-631-0300
OVERVIEW
Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools. It features built-in camera-to-cloud with free ATOMOSphere membership, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. No other monitor-recorder packs so much performance and compatibility into such a compact, connected device.
In the Box
- Ninja TX unit
- USB-C locking cable adaptor/li>
- USB-C locking cable (45cm)
- HDMI locking cable adaptor
- Wi-Fi antenna + antenna caps
- AirGlu antenna + antenna caps
- Quick Start Guide
Brand
detailed specifications
| Type of Outputs | 1 x HDMI 2.0 Output | 1 x BNC (12G-SDI) Output | 1x 1/8" / 3.5 mm Headphone Output |
| HDMI Terminal | 1 x HDMI 2.0 Input | 1 x HDMI 2.0 Output |
| Power Requirements | 1x USB-C (16.8 VDC) Input | 1x L-Series Mount on Fixed Plate |
| Material | Aluminum, Plastic |
| Compatible Media | CFexpress Type B [Record/LUT/Firmware] |
| Mounting Threads | 1x ARRI Anti-Twist 1/4"-20 | 2x 3/8"-16 Female |
physical specifications
| Weight | 14.1 oz / 400.00 g |
| Dimensions | 5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm |
| Color | Black |
power system
| Battery Type | 1x L-Series Mount on Fixed Plate |
interface
| Audio Output | 1x 1/8" / 3.5 mm Headphone Output |
display & viewfinder
| Screen Size | 5.2" |
| Display Type | IPS-Type LCD |
| Monitor Resolution | 1920 x 1080 |
a/v mode
| Audio Input | 1x 1/8" / 3.5 mm Input |
monitor specifications
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m2 |
| Bit-Depth / Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| Color Gamut | 100% Rec. 709 |
camera attributes
| Aspect Ratio | 16:9 |
battery/charger attributes
| Compatible Battery | 1x L-Series Mount on Fixed Plate |
