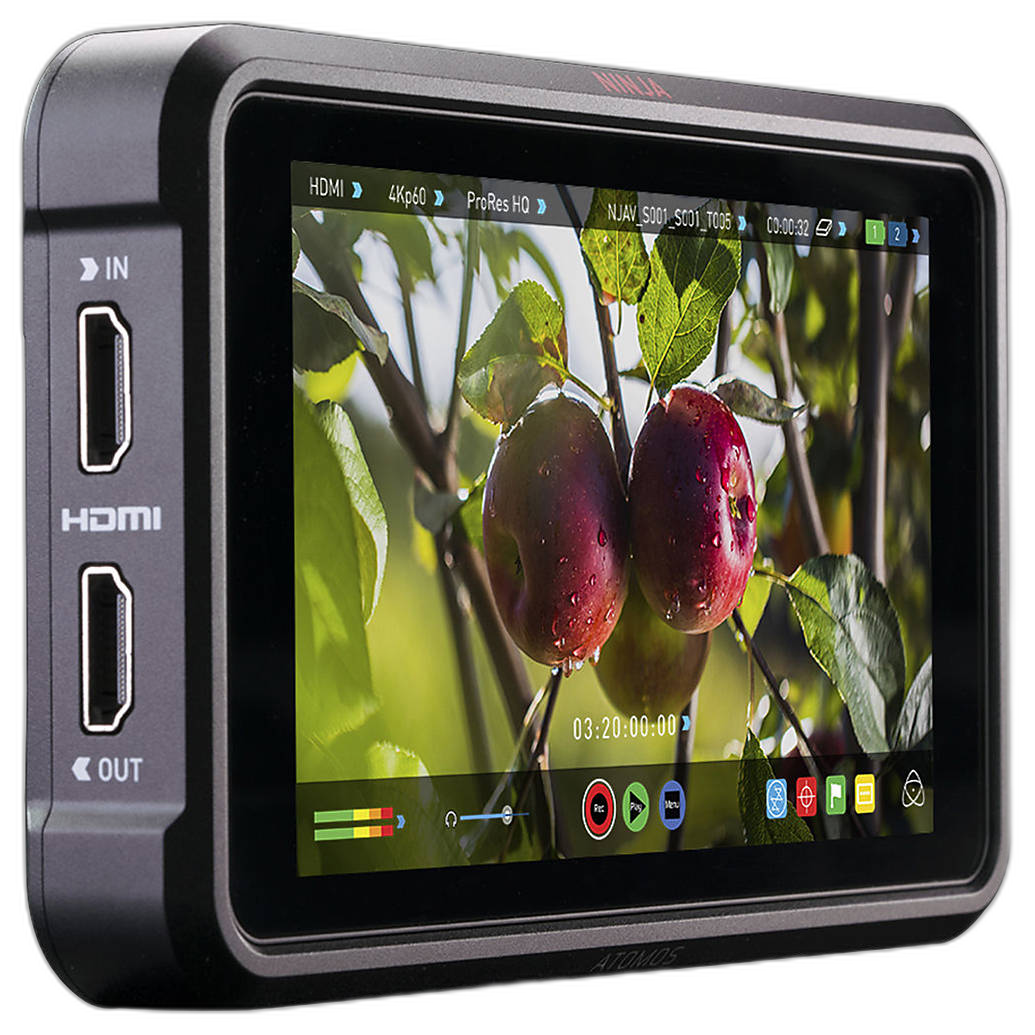

Atomos Ninja V 5in 4K HDMI Recording Monitor

Be the first to write a review

Atomos Ninja V 4K HDMI Recording Monitor
With Master Caddy II
10-bit FRC IPS screen
Brightness of 1000 cd/m²
AtomHDR display technology
Log gamma support
Anamorphic de-squeeze
Built-in SSDs
XLR audio input
Headphone jack
Aluminum chassis
Sony L-series battery slot

Screen Size:: 5"

Screen Size:: The size of the screen listed by height and width.

View All Attribute Definitions

Color:: Black

Color:: The color of the item.

View All Attribute Definitions

overview

Compose your scenes on the Atomos Ninja V 5 4K HDMI Recording Monitor to get an accurate idea of exposure and white balance. The monitor is designed for professional video camera systems such as ARRI and RED, and displays imagery on the 10-bit FRC IPS screen, having a brightness of 1000 cd/m². The AtomHDR display technology shows the log gamma footage without its characteristic flat tone. This Atomos video monitor supports LUTs meant for the ARRI, Canon, Fujifilm, JVC, Sony, Panasonic, and RED log formats. The recorder accepts 4K HDMI signals to store them in DCI or UHD formats for up to 60 fps. With the anamorphic de-squeeze, you can view anamorphic videos having a squeeze of 2×, 1.5×, 1.33×, and Panasonic 8:3. An XLR audio input with 48V phantom power is also provided for professional audio recording. Monitor the captured sound by plugging in a headphone to the output jack. Expand the operational capabilities of the Atomos Ninja V with the bidirectional video port.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Atomos

Display & Viewfinder
Screen Size:	5"
Screen Size: The size of the screen listed by height and width. View All Attribute Definitions

Detailed Specifications
Batteries:	Sony L-series
Batteries: The type of battery the device uses. These types range from short-term disposable (Alkaline), long-term single-use (Lithium) and rechargeable (NiCd, NiMH, LiIon). View All Attribute Definitions
Type of Outputs:	1 x HDMI type A, v2.0; 1 x 3.5 mm, headphone; 1 x 10-pin LEMO, analog audio (also serves as input)
Type of Outputs: The available outputs for video and audio on a camera. View All Attribute Definitions
HDMI Terminal:	2- or 8-channel, up to 24-bit (camera dependent)
HDMI Terminal: This is a type of high quality video output on a camera. View All Attribute Definitions
Power Requirements:	6.2 to 16.8 VDC (battery or DC power input)
Power Requirements: This is the battery or adapter necessary to power a device. View All Attribute Definitions
Max. Power Consumption:	10-19 W
Max. Power Consumption: Maximum power consumption that a scanner uses. View All Attribute Definitions
Type of Input Connector:	1 x HDMI type A, v2.0; 1 x 2.5 mm, LANC; 1 x 10-pin LEMO, analog audio (also serves as output)
Type of Input Connector: This is the type of input connector. View All Attribute Definitions
Max Resolution:	1920 x 1200; 427 ppi
Max Resolution: The highest resolution that a display device can support. View All Attribute Definitions
Battery Life:	5200 mAh: Up to 2 hours (monitor and 4K 60p recording); 7800 mAh: Up to 3 hours (monitor and 4K 60p recording)
Battery Life: The amount of time a battery stays charged. View All Attribute Definitions

Physical Specifications
Dimensions:	5.94 x 3.6 x 1.22" (15.1 x 9.15 x 3.1cm)
Dimensions: The measurements of an object. View All Attribute Definitions
Weight:	Without Batteries & Media: 11.3 oz / 320 g
Weight: The physical weight of the item without packaging. View All Attribute Definitions
Color:	Black
Color: The color of the item. View All Attribute Definitions

Power System
Battery Type:	Sony L-series
Battery Type: The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries. View All Attribute Definitions
