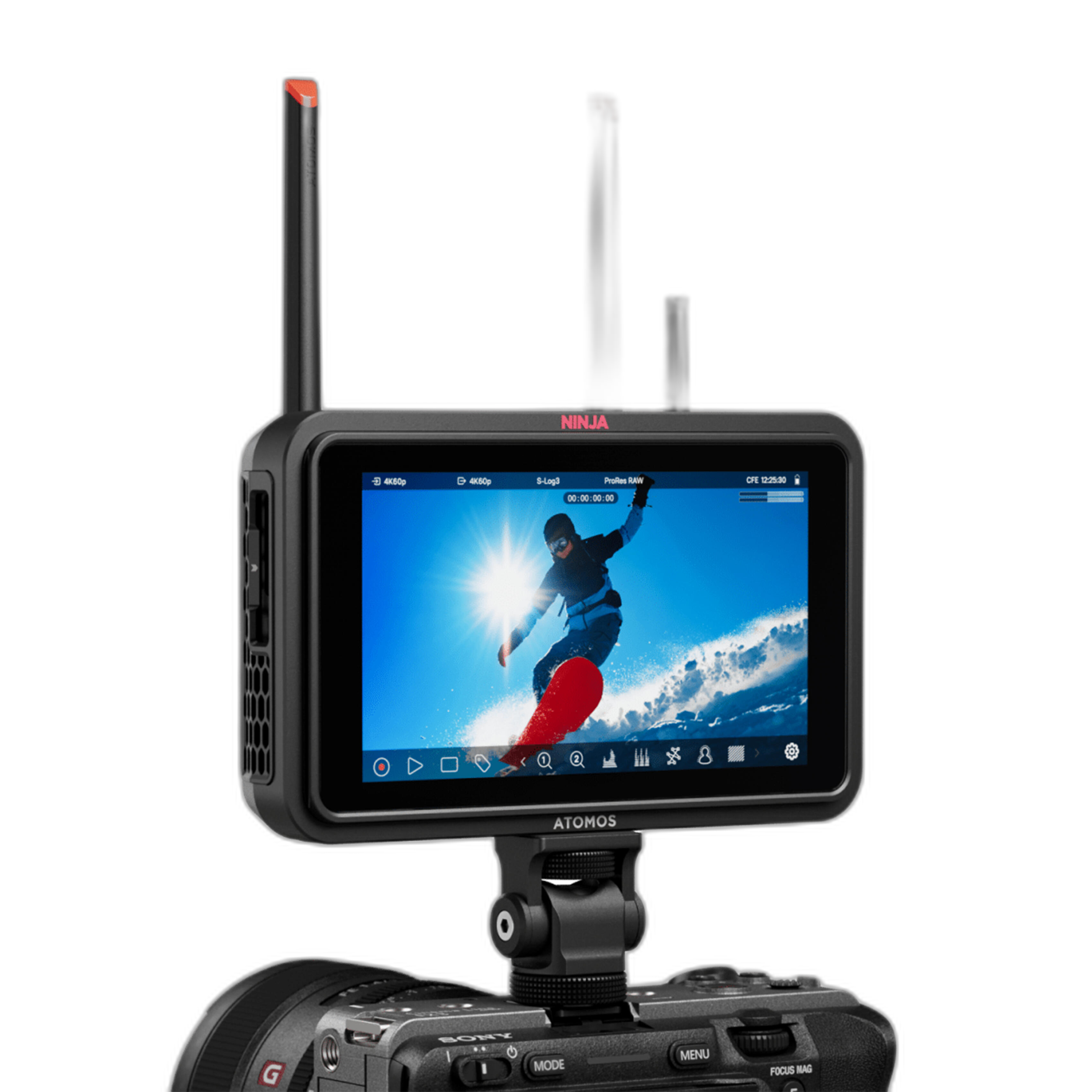

Atomos Ninja TX 5.2in Monitor and Recorder
Key Features
- Record in Apple ProRes, Avid DNx or H.265/H.264
- Capture to CFexpress Type B or USB-C storage
- Super-bright, 1500nit 5-inch touchscreen display
- HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
- Direct upload to ATOMOSphere, Frame.io, Dropbox
- Timecode sync over RF or Bluetooth
- Powered by USB-C, NP-F battery or AC adaptor
- Get 20GB cloud storage FREE with ATOMOSphere
Available for Rent
OVERVIEW
Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools. It features built-in camera-to-cloud with free ATOMOSphere membership, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. No other monitor-recorder packs so much performance and compatibility into such a compact, connected device.
Brand
display & viewfinder
| Screen Size | 5.2" |
| Display Type | IPS-Type LCD |
| Monitor Resolution | 1920 x 1080 |
detailed specifications
| Type of Outputs | 1 x HDMI 2.0 Output | 1 x BNC (12G-SDI) Output | 1x 1/8" / 3.5 mm Headphone Output |
| HDMI Terminal | 1 x HDMI 2.0 Input | 1 x HDMI 2.0 Output |
| Mounting Threads | 1x ARRI Anti-Twist 1/4"-20 | 2x 3/8"-16 Female |
| Power Requirements | 1x USB-C (16.8 VDC) Input | 1x L-Series Mount on Fixed Plate |
| Material | Aluminum, Plastic |
| Compatible Media | CFexpress Type B [Record/LUT/Firmware] |
physical specifications
| Dimensions | 5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm |
| Weight | 14.1 oz / 400.00 g |
| Color | Black |
monitor specifications
| Touchscreen | Yes |
| Bit-Depth / Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| Maximum Brightness | 1500 nits / cd/m2 |
| Color Gamut | 100% Rec. 709 |
camera attributes
| Aspect Ratio | 16:9 |
a/v mode
| Audio Input | 1x 1/8" / 3.5 mm Input |
power system
| Battery Type | 1x L-Series Mount on Fixed Plate |
interface
| Audio Output | 1x 1/8" / 3.5 mm Headphone Output |
battery/charger attributes
| Compatible Battery | 1x L-Series Mount on Fixed Plate |
- Ninja TX unit
- USB-C locking cable adaptor/li>
- USB-C locking cable (45cm)
- HDMI locking cable adaptor
- Wi-Fi antenna + antenna caps
- AirGlu antenna + antenna caps
- Quick Start Guide
No creators have tagged this product yet.
Articles featuring this product
Location Sound Buying Guide: Microphones, Wireless Systems, and Accessories for Better Video Audio
May 8, 2026
·
Unique Photo
RAW Processing Software Buying Guide: Faster Workflows, Smarter Plugins, and Pro Picks
May 3, 2026
·
Unique Photo
Community questions about this gear
Ask a question
0
votes
1
answers
117
0
votes
2
answers
100
What’s the difference between the Yongnuo YN560-TX and YN-E3-RT flash transmitters?
Photography Stack Exchange contributor
8y ago
0
votes
2
answers
91
How can I reduce high-ISO noise from a Kodak EasyShare Z981 for concert photos?
Photography Stack Exchange contributor
14y ago
0
votes
2
answers
101
Can a Yongnuo YN-622C-TX remotely control a YN-560 IV without a receiver?
Photography Stack Exchange contributor
10y ago
You may also like
Atomos Ninja V+ 5.2 8K HDMI H.265 Raw Recording Monitor
- 8Kp30 and 4Kp120 continuous recording in ProRes RAW
- 4Kp60 in 10-bit 4:2:2 from almost every camera manufacturer
Atomos Shogun Ultra 7 inch 8K RAW HDR Monitor/Recorder
- 7-inch 2000nit monitor-recorder
- 12G SDI IN and OUT and HDMI IN and OUT
Atomos Creator Kit for 5in Monitors
- Sun Hood with Frame
Atomos Shogun 7 HDR Pro/Cinema Monitor-Recorder-Switcher
- 7" 1920 x 1200 Touchscreen Display
- 4-Input HD Switching & ISO Recording
Atomos Ninja V 5in 4K HDMI Recording Monitor
- Atomos Ninja V 4K HDMI Recording Monitor
- With Master Caddy II

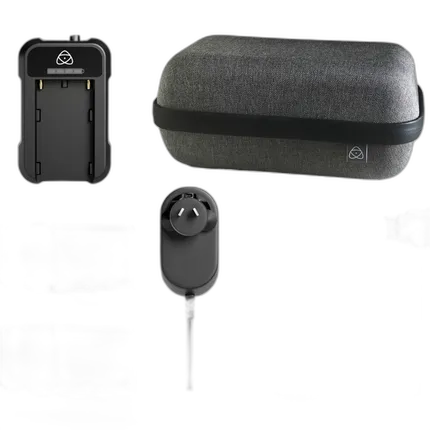

Atomos Universal Power Kit
