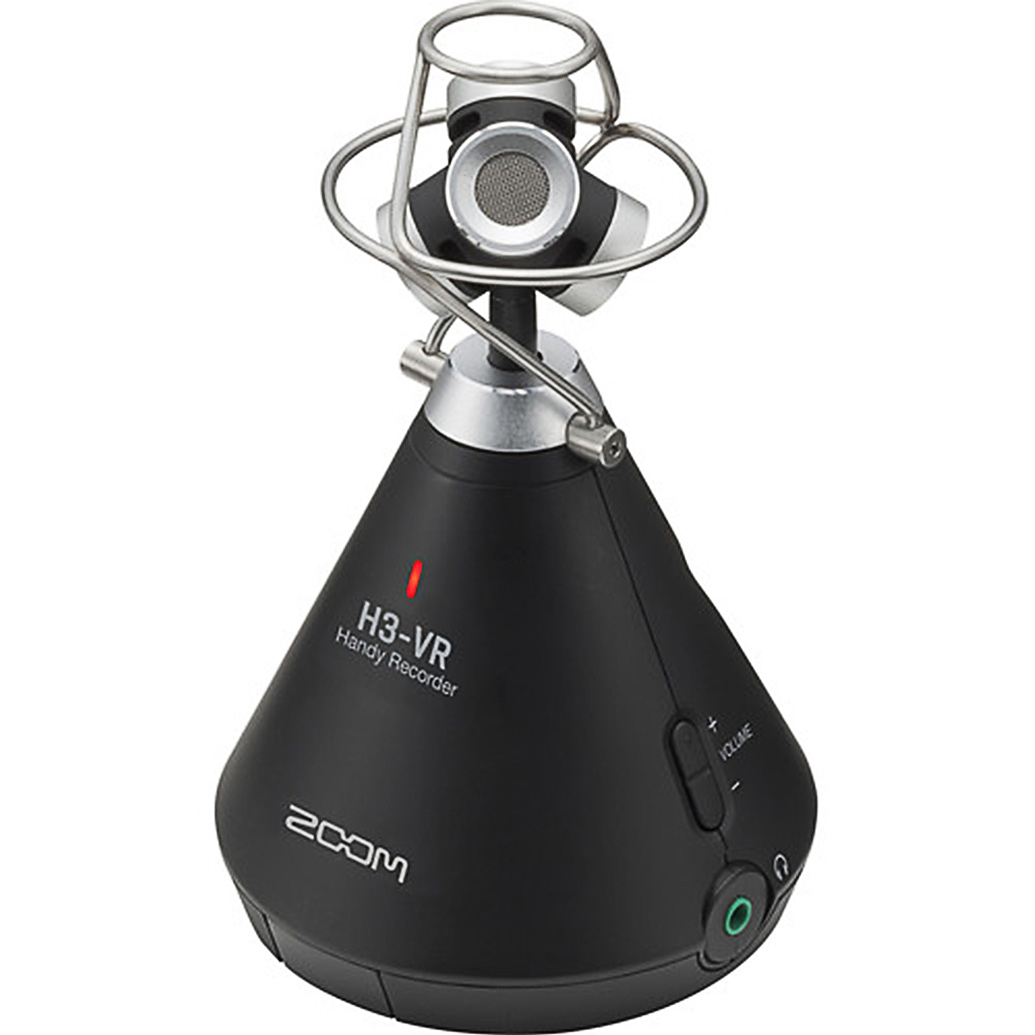

Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array
- 4 built-in mics arranged in an Ambisonic array
- Full-sphere surround sound recording
- Single-knob gain control of all input levels
- Onboard Ambisonics A to B decoding
- Three recording modes: Ambisonics, Stereo Binaural or Standard Stereo
- Record up to 24bit/96kHz
- Stereo binaural monitoring of Ambisonics signal
- Headphone output and line output
- Slate tone
- Extensive metadata
- Auto Mic Position Detection using 6-axis gyroscope
- Level Function to ensure precise angle placement
- Wireless iOS remote control available through the BTA-1 Bluetooth adapter
- Onboard Ambisonics playback with audio rotation
- Accurate internal clock with .5ppm discrepancy
- USB 2.0 Audio Interface Mode
- Zoom PC/Mac post-production software
- Powered by 2 AA batteries or USB bus power
- Records to SD card up to 512GB
OVERVIEW
The Zoom H3-VR Handy Audio Recorder is a compact audio recorder with a built-in Ambisonics mic array offering flexible 360° audio capture. The Zoom H3-VR also has an integrated Ambisonics A-to-B conversion that eliminates the need for external processing. The device goes well beyond VR applications, and is additionally geared towards sound recordists, audio engineers, and content creators in music, audio-for-video, game audio, and AR production.
The H3-VR supports powering via two AA batteries or a USB connection. The power LED will also serve as a clip indicator. A 1/4"-20 threaded hole on the bottom of the H3-VR accommodates attachment to a standard camera tripod. At less than 5" tall and 3" wide, this recorder is discreet and unobtrusive.
Staying out of the shot can be tricky when recording a 360-degree video, which is why the H3 Control App lets you remotely access transport controls, level settings and metadata notes right from your iOS device. Also, the H3-VR enables you to live stream events in 360 degrees so that wherever your fans are, they will have access to the best seats in the house.
In the Box
- Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array
- Foam Windscreen
- Dual Mounting Bracket
- 2 x AA Batteries
Brand
detailed specifications
| Mounting | 1/4"-20 Female |
| Weight | 4.2 oz |
physical specifications
| Dimensions | 3 x 3.1 x 4.8" |
display & viewfinder
| Display Type | Monochrome LCD |
brand
| Brand | Zoom |
| Brand | Zoom |
microphone specifications
| Maximum SPL | 120 dB |
| Gain Adjustment | +18 to +48 dB |
recorder specifications
| Number of Simultaneous Recording Tracks | 4 |
| Recording Media | microSD, microSDHC, microSDXC (Up to 512 GB) |
| Data Type | Ambisonics A, Ambisonics B (FuMa/AmbiX), BWF, WAV, iXML |
| Input Gain | Mic Inputs: +18 to +48 dB |
| Built-In Stereo Mic | Built-In Cardioid Condenser 4-Mic Array |
| USB | 1 x Micro-USB (USB 2.0) |
| Power Requirements | 5 VDC at 1 A (Not Included) |
| Batteries | 2 x AA |
| Continuous Recording Time | FuMa 48 kHz/24-Bit: 11.5 Hours (Alkaline) 11.5 Hours (NiMH) 24 Hours (Lithium) |
