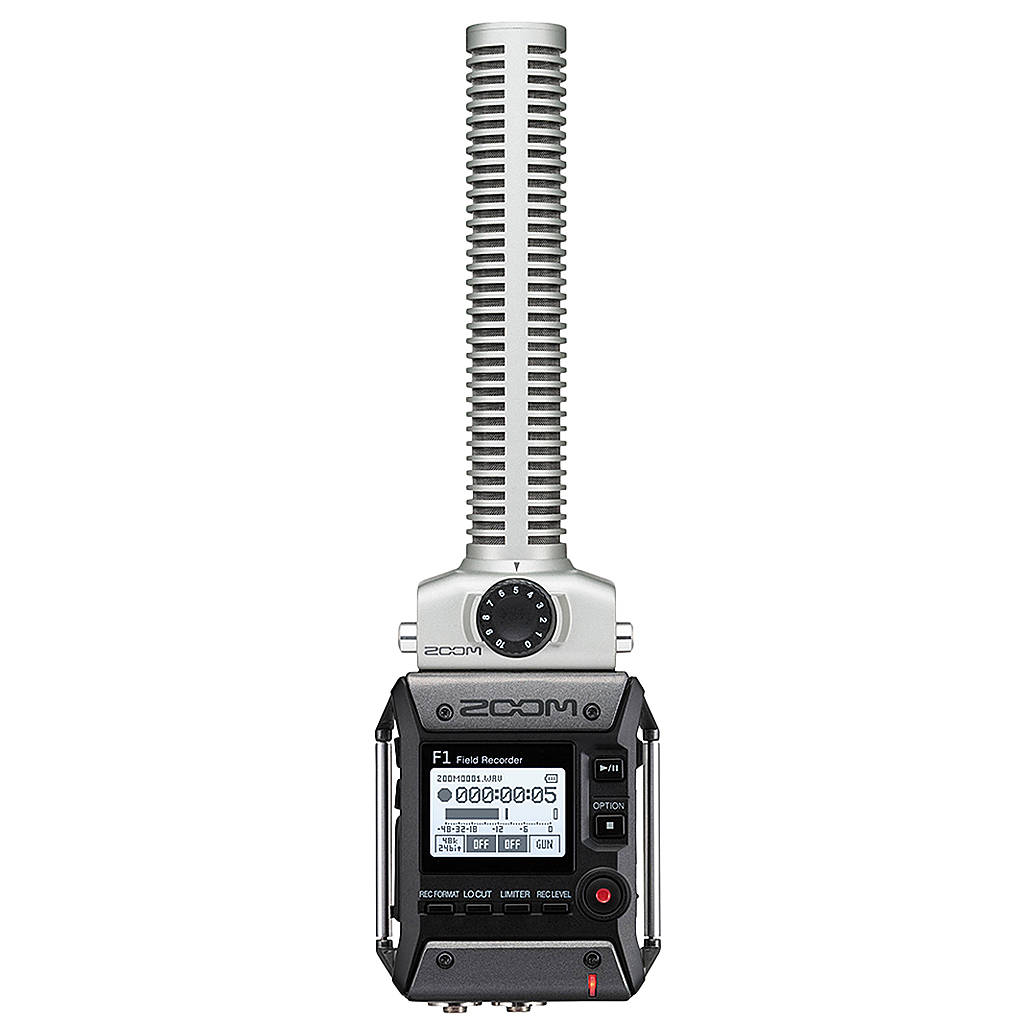

Zoom F1 Field Recorder with Shotgun Microphone
- Zoom F1 Field Recorder
- With SGH-6 shotgun microphone
- 2-channel audio recording
- 24-bit/96 kHz audio support
- Automatically time-stamped BWF
- One-touch button controls
- Record Hold function
- Monochromatic LCD
- Low-cut filter and built-in limiter
- Sound marker function
Overview
The Zoom F1 Field Recorder captures high-quality audio even when the subject is standing far away. An SGH-6 shotgun microphone is provided with the field recorder. The Zoom F1 records 2-channel 24-bit/96 kHz sound in BWF-compliant WAV or MP3 format. It supports microSD or microSDHC cards up to 32 GB. With the dedicated control buttons, you can quickly adjust record level, volume output and make changes in the low-cut filter and limiter control settings. This audio recorder has a proprietary 10-pin connector as well as a 3.5 mm stereo mini jack with its volume control. The monochromatic display can be read in bright conditions comfortably. You can use an audio interface software with the Zoom F1 to record sound directly to your PC. The recorder offers 10 hours of run time on two fully-charged AAA batteries.
In the Box
- Zoom F1 Field Recorder with Shotgun Microphone
- SGH-6 Shotgun Microphone
- SMF-1 Shockmount
- WSS-6 Windscreen
- SMC-1 Stereo Mini Cable for Camera
Brand
detailed specifications
| Type of Microphone | 2-channel audio recorder |
| USB Port | Connector: Micro-USB; Mass Storage Operation: USB 2.0 high-speed; Audio Interface Operation: 2 x in / 2 x out, 44.1 kHz/16-bit, 48 kHz/16-bit, USB class-compliant; Transfer method: Asynchronous |
| Type of Input Connector | Mic In; Proprietary 10-pin connector, compatible with all Zoom mic capsules; Mic/Line In; Connector: 1/8" / 3.5 mm stereo mini, with screw lock; Plug-In Power: 2.5 V; Input Gain: -12 to +36 dB; Input Impedance: 2 kOhms or more |
| Power | 2 x AAA batteries, alkaline, NiMH, or lithium AD-17 AC adapter (available separately): 5 VDC / 1 A |
| Maximum Recording Time | With SGH-6 Shotgun Mic Capsule (48 kHz/24-bit, Mono); Alkaline Batteries: 6.5 hours, approximately; NiMH Batteries (750 mAh): 6 hours, approximately; Lithium Batteries: 11 hours, approximately |
| Practical Maximum Output | 2 x 11 mW (into 32 Ohms load) |
physical specifications
| Weight | 4.2 oz / 120.0 g (without batteries) |
| Dimensions | 2.5 x 3.1 x 1.3" / 64.0 x 79.8 x 33.3 mm |
a/v details
| Recording Formats | WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit; BWF-compliant; MP3: 48, 128, 192, 256, 320 kb/s, Mono/stereo ID3v1 tags supported |
| Recording Media | microSD and microSDHC cards (Class 4 or higher, up to 32 GB) |
brand
| Brand | Zoom |
