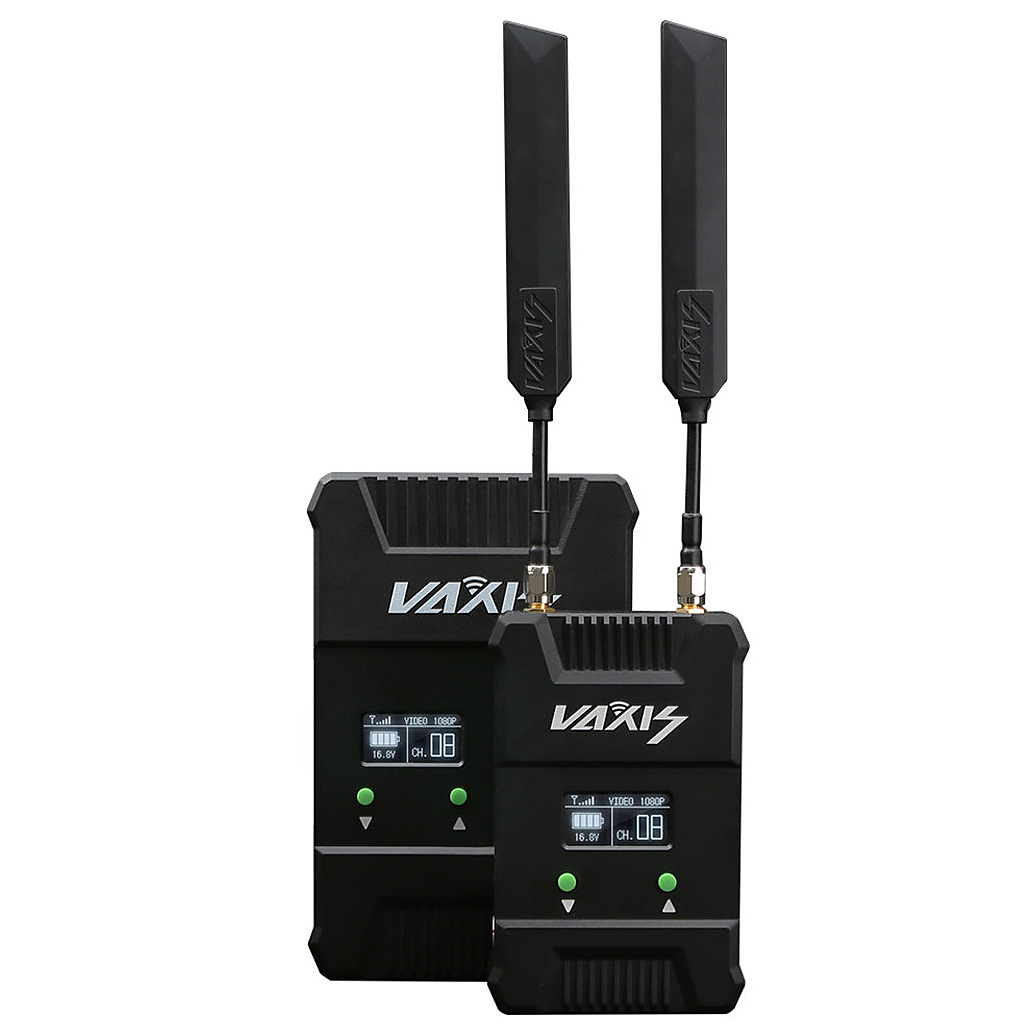

Vaxis Storm 800 HD 0-Latency Wireless Transmission Kit
- Vaxis Storm 800 Wireless Transmission
- Entry-Level Wireless Transmission System
- Up to 1080p60 Uncompressed Transmission
- SDI/HDMI Inputs & SDI Loop Output
- 800 ft. Range (Less Than 1ms Latency)
- SDI/HDMI Outputs
- User-Configurable Frequency Bands
- Receiver: V-Mount Battery Plate
- 2-Pin LEMO Power Inputs
- Built-In HDMI to SDI Converter
- 1/4"-20 Mounting Threads
- Multi-Casting Up to 10 Receivers
Overview
The Vaxis Storm 800 3G/SDI & HDMI Wireless Transmission Kit is a beginner-level, wireless transmission kit, that features an 800 ft. range, supports up to 1080p60 uncompressed signal transmission, & features less than 1ms of latency over the license-free, operation frequency (5.1 to 5.9 GHz). 3G-SDI & HDMI inputs, along with a 3G-SDI loop output, for local monitoring, are featured on the transmitter. The transmitter also comes with an L-series battery plate.
The receiver offers 3G-SDI & HDMI outputs, & features a V-mount battery plate. Both of the units support continuous power, via 2-pin LEMO inputs. In order to run power from D-Tap sources, two D-Tap LEMO cables are included. The units also feature a robust, metal housing.
Both the transmitter, & receiver, feature an OLED screen, to confirm various parameters. The transmitter is able to multicast, to up to 10 receivers at a time, & is able to transmit camera timecode, metadata, & start/stop flags for ARRI, RED, Canon, Sony, & Panasonic cameras. A built-in HDMI to SDI converter is featured as well.
In the Box
- Vaxis Storm 800 3G-SDI & HDMI Wireless Transmission Kit
- Transmitter with L-Series Battery Plate
- Receiver with V-Mount Battery Plate
- 3 x Sword Antenna
- Articulating Arm (7")
- 2 x D-Tap to 2-Pin LEMO Power Cable
- Slim SDI Cable (39")
- 5/8" to 1/4"-20 Light Stand Adapter
- Hard Case
Brand
physical specifications
| Dimensions | 4.57 x 2.52 x 0.91" / 11.6 x 6.4 x 2.3 cm |
| Dimensions | 5.98 x 3.74 x 0.91" / 15.2 x 9.5 x 2.3 cm |
brand
| Brand | |
| Brand | Vaxis |
wireless transmitter specifications
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Wireless Range | 800' / 243.84 m (Line-of-Sight) |
| Channel Bandwith | 40 MHz, 20 MHz |
| Wireless Video Compression | Uncompressed |
| Frequency Range | 5.1 to 5.9 GHz |
| Latency | < 1 ms |
| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output |
| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input |
| Transmitter Video Connectors | 1 x HDMI Input |
| Receiver Video Connectors | 1 x HDMI Output |
| Receiver Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output |
| Encryption | 128-Bit AES |
| Video Format (SDI/BNC) | 1080PsF at 23.98, 24, 25, 29.97, 30 fps |
| Video Format (SDI/BNC) | 720p at 50, 59.94, 60 fps |
| Video Format (SDI/BNC) | 576p at 60 fps |
| Video Format (SDI/BNC) | 1080p at 23.98, 24, 30, 50, 59.94, 60 fps |
| Video Format (SDI/BNC) | 1080i at 50, 59.94, 60 fps |
| Video Format (HDMI) | 576p at 60 fps |
| Video Format (HDMI) | 720p at 50, 59.94, 60 fps |
| Video Format (HDMI) | 1080i at 50, 59.94, 60 fps |
| Video Format (HDMI) | 1080p at 23.98, 24, 50, 59.94, 60 fps |
| Video Format (HDMI) | 1080PsF at 23.98, 24, 25, 29.97, 30 fps |
| Timecode | Yes |
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
| Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x V-Mount |
| Transmitter Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
| Receiver Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
| Transmitter Mounting | 1 x 1/4"-20 Female |
| Receiver Mounting | 1 x 1/4"-20 Female |
| Material | Metal |
| Transmitter Weight | 0.5 lb / 240 g |
| Receiver Weight | 0.8 lb / 355 g |
