Used KMZ Horizon 202 Panoramic Camera - Excellent | Used & Trades

Be the first to write a review

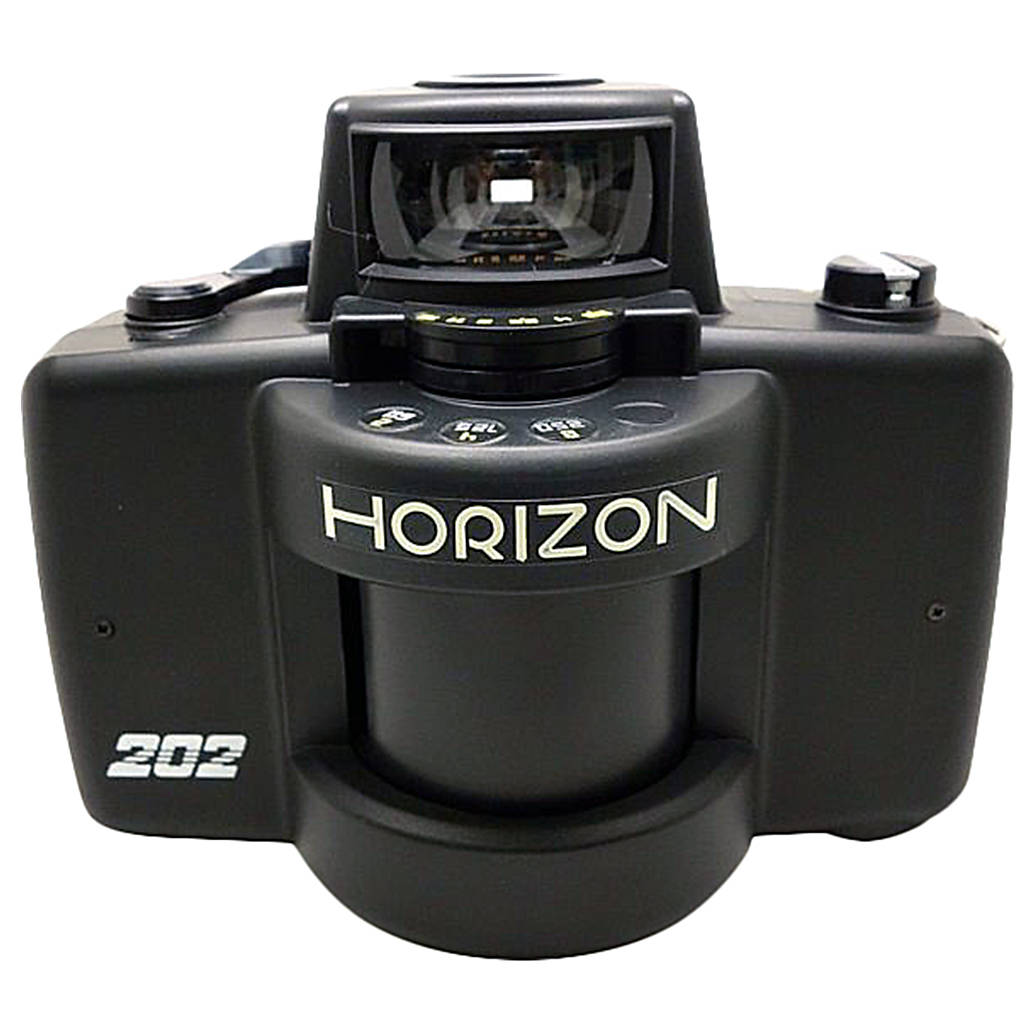

KMZ Horizon 202 Panoramic Camera
With OF-28P fixed rotating lens
28mm focal length
f/2.8 maximum aperture
For 35mm films
0.4× optical viewfinder
Level ball
Mode-selection switch
Aperture and shutter speed lever
Frame counter
Tripod socket
Color: Black

Condition:: Used

Color:: Black

Color:: The color of the item.

View All Attribute Definitions

Excellent Condition:: Almost no signs of prior use

Excellent Condition:: Equipment rated as "Excellent" will show almost no signs of prior use. These items are considered to be anywhere from 90-95% of their original condition. Camera bodies will have only the most minor/small marks on the LCD that will not impact viewing ability at any brightness level. Camera bodies only show minor signs of use with no fatigue on the rubber grips. There may be very minor markings on the bottom of the camera from being mounted on a tripod. Lenses rated as "Excellent" have practically no wear on the housing and the glass elements are in pristine condition with no dust, scratches, or markings. The lens (mount) itself will show almost no signs of being attached to a camera.

View All Attribute Definitions

Used Condition:: Excellent Condition

Used Condition:: View information on Used Condition status definitions - https://www.uniquephoto.com/returns#usedinfo Indicates level of item use. Excellent - Shows almost no signs of prior use. 90-95% of the item's original condition. Good - Small amount of cosmetic wear and some blemishes from regular use. 80-90% of the item's original condition. Fair - Shows cosmetic wear and marks from being used. 70-80% of the item's original condition.

View All Attribute Definitions

Film Type:: 35mm

Film Type:: Refers to the development process by which the particular film uses. The most common are black and white, color negative (C-41), and color reversal (E-6)

View All Attribute Definitions

Film Size:: 2.4 x 5.9 cm

Film Size:: Refers to the format of the film being used. (35mm, 120, 4x5, etc...)

View All Attribute Definitions

Camera Type:: Panoramic

Camera Type:: The type of camera. Examples: SLR, point and shoot, mirrorless.

View All Attribute Definitions

Maximum Aperture:: f2.8

Maximum Aperture:: How wide a lens can be opened.

View All Attribute Definitions

Horizon

Overview

THIS IS A USED ITEM
IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY
Condition: Excellent

The KMZ Horizon 202 Panoramic Camera, as is clear by the name, captures a beautiful panoramic scene in a single frame. The camera comes with a fixed, rotating lens that has a focal length of 28mm and a maximum aperture of f/2.8. The attached lens provides an angular field view of 120°×45° and can work at the highest shutter speed of 1/250th of a second. This camera has an operating mode wheel for adjusting the aperture and shutter speed. It comes with an optical viewfinder that allows 0.4× magnification. You may mount the camera on a tripod with the help of the socket below.

Optics and Focus

This KMZ camera comes with an OF-28P lens that can be rotated for taking panoramic shots in detail. The lens has a 28mm, wide focal length that adds more coverage to the field of view. The OF-28P has four optical elements arranged in three groups. It provides an angular field view of 120°×45°. The maximum aperture of f/2.8 lets in enough light for rendering bright and clear images.

Sensor and Screen

The KMZ Horizon 202 Panoramic Camera has an optical viewfinder that offers a 0.4× magnification. A level ball on top of the camera helps in setting it in line with the horizon. In order to get a distortion-free image, the level ball should appear at the center, which can be checked while using the viewfinder.

Image and Video

This old-world camera from KMZ uses 35mm films for capturing images. When developed, the film generates photographs in a dimension of 175.5×146×73mm. You may attach a light filter on the lens for unique effects on images.

Other Features

The KMZ Horizon 202 Panoramic Camera comes with a film-rewind crank and shutter-disengaging button that reduces the time of preparing the next frame. A frame counter lets you know how many frames are used. The film counter resets to the initial count of 0 on reloading a film. Further, capturing a panoramic shot of a vast landscape becomes easy when you mount the camera on a stable base by using the tripod socket.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Horizon

Shutter
Shutter Speeds:	Up to 1/250
Shutter Speeds: The amount of time the shutter stay open for exposure. Measured in fractions of seconds. View All Attribute Definitions

Physical Specifications
Weight:	0.75 kg
Weight: The physical weight of the item without packaging. View All Attribute Definitions
Color:	Black
Color: The color of the item. View All Attribute Definitions

Used Condition
Excellent Condition:	Almost no signs of prior use
Excellent Condition: Equipment rated as "Excellent" will show almost no signs of prior use. These items are considered to be anywhere from 90-95% of their original condition. Camera bodies will have only the most minor/small marks on the LCD that will not impact viewing ability at any brightness level. Camera bodies only show minor signs of use with no fatigue on the rubber grips. There may be very minor markings on the bottom of the camera from being mounted on a tripod. Lenses rated as "Excellent" have practically no wear on the housing and the glass elements are in pristine condition with no dust, scratches, or markings. The lens (mount) itself will show almost no signs of being attached to a camera. View All Attribute Definitions
Used Condition:	Excellent Condition
Used Condition: View information on Used Condition status definitions - https://www.uniquephoto.com/returns#usedinfo Indicates level of item use. Excellent - Shows almost no signs of prior use. 90-95% of the item's original condition. Good - Small amount of cosmetic wear and some blemishes from regular use. 80-90% of the item's original condition. Fair - Shows cosmetic wear and marks from being used. 70-80% of the item's original condition. View All Attribute Definitions

Brand
Brand:	Horizon

Film Specifications
Film Type:	35mm
Film Type: Refers to the development process by which the particular film uses. The most common are black and white, color negative (C-41), and color reversal (E-6) View All Attribute Definitions
Film Size:	2.4 x 5.9 cm
Film Size: Refers to the format of the film being used. (35mm, 120, 4x5, etc...) View All Attribute Definitions

Camera Attributes
Camera Type:	Panoramic
Camera Type: The type of camera. Examples: SLR, point and shoot, mirrorless. View All Attribute Definitions

Lens
Focal Length:	28mm
Focal Length: The distance between the film and the optical center of the lens when the lens is focused on infinity. View All Attribute Definitions

Lens Specification
Minimum Aperture:	f16
Minimum Aperture: How wide a lens can be opened. View All Attribute Definitions
Maximum Aperture:	f2.8
Maximum Aperture: How wide a lens can be opened. View All Attribute Definitions
Focus Type:	Fixed
Focus Type: The type of focus of the lens from full manual control to auto focus. View All Attribute Definitions
