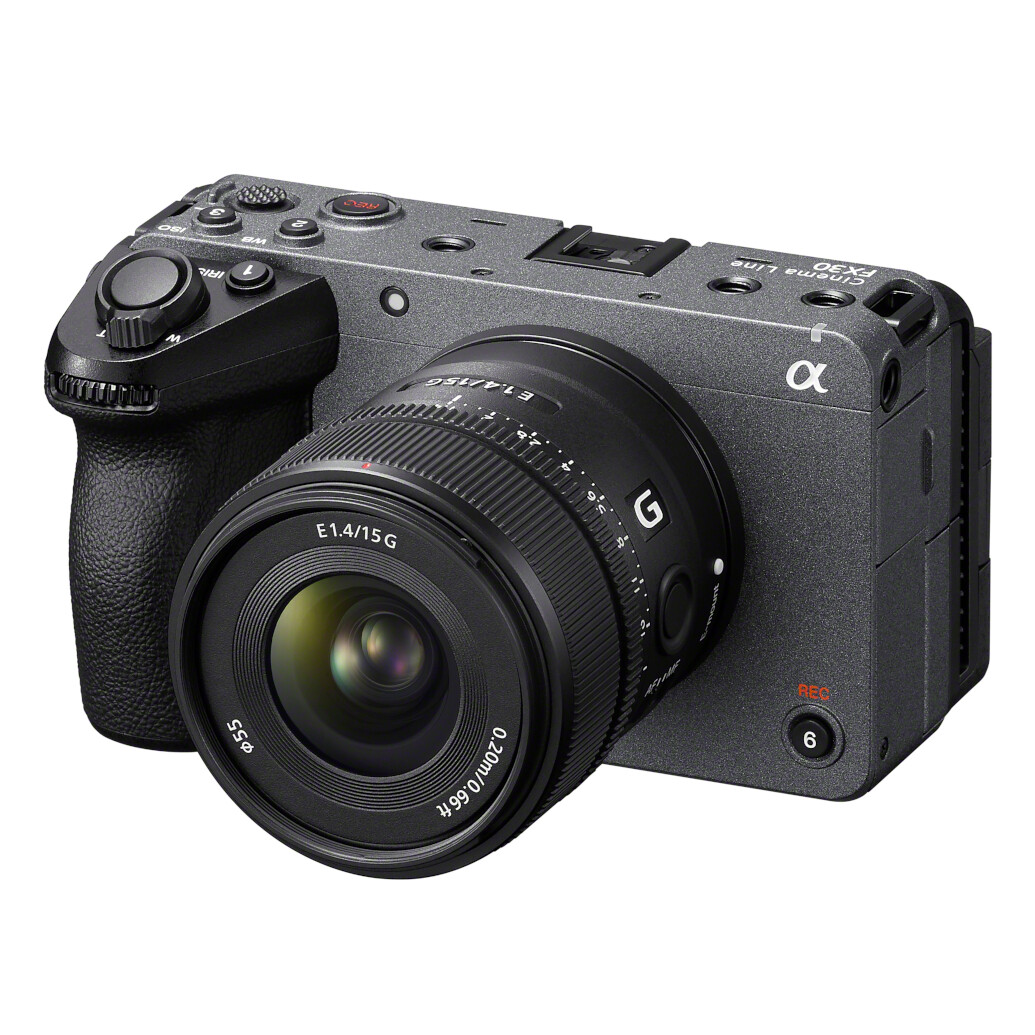

Sony FX30 Digital Cinema Camera with 15mm Lens Kit
- Product #:
- Manufacturer #:
- ILME-FX30B & SEL15F14G
- 20.1 MP Exmor R™ APS-C (Super 35mm format) Image Sensor
- S-Cinetone TM for a cinematic look straight out of the camera without grading
- Flexible ISO, Cine EI Quick and Cine EI Log shooting modes for optimized image quality
- User LUTs can be applied to an HDMI or Monitor Output
- Dual Base ISO and a 14+ stop range for wide latitude and low-noise images
- Log recording for smooth cinematic image quality when color grading
- Dependable, accurate autofocus with Real-time Eye and Real-time Tracking AF
- 4K 16-bit RAW output from HDMI terminal for compatible external recorders
- Time code input synchronization capability
- Flexible, high-resolution touch-panel LCD monitor
- Dual card slots, both compatible with CFexpress Type A and SDXC/SDHC
- Uninterrupted power for extended recording by USB PD support
- Multiple ¼”-20 threaded mounting points make a cage unnecessary
- One Mount: connect seamlessly with E-mount interchangeable lenses
- Video Resolution:
- HDMI: 4672 x 2628 (59.94p, 50p, 29.97p, 25p, 23.98p), 16bit
- Video Resolution:
- The measurement in height x width of a captured video file. Common sizes are VGA, 720p, and 1080p.
- Battery Type:
- Sony NP-FZ100
- Image Sensor Size:
- APS-C type (23.3 x 15.5 mm) Exmor R CMOS sensor
- Image Sensor Size:
- Refers to the actual physical size of the imaging sensor in the camera. A sensor that has the same dimensions as a 35mm frame of film is considered to be "full" frame. Other smaller sensor sizes are described in terms relative to a "full" sized sensor. (e.g. an APS-C 1.5x crop sensor)
- Yes 2.4GHz band/5 GHz band
- Sony NP-FZ100
- Video ISO Range:
- Movie: ISO 100-32000 equivalent
Auto: ISO 100-6400 (selectable lower limit and upper limit)
- Mount Type:
- Sony E-Mount
- Mount Type:
- This is the mount type for the lens to attach to the camera body.
The FX30 captures stunning images with 6K oversampling and a true cinematic look. Its compact size lets you take it anywhere, and sophisticated AF and stabilization makes advanced filmmaking more accessible than ever.
Image Sensor With a Wide Dynamic Sensor
Sony’s acclaimed image sensor technology in a new back- illuminated 20.1 megapixels APS-C Exmor R™ CMOS sensor (Super 35 format) achieves high sensitivity, low noise, and wide dynamic latitude. 6K oversampling compresses a vast amount of information into 4K (QFHD: 3840 x 2160) output, delivering 4K movies with overwhelming resolution. Capture the scene in cinematic 4K resolution with the expressive depth of field, stunning bokeh, and cinematic freedom of an APS-C size sensor. The image sensor maximizes light collection efficiency so that clear, usable images can be captured in dim light. Standard ISO sensitivity is 100 to 32000, and latitude is an impressively wide 14+ stops.
Cinematic Look Without Grading
The FX30 includes S-Cinetone TM, the same color science that produces the highly regarded FX9 and FX6 color and skin tones. Based on technology acquired through development of digital cinema cameras such as Sony’s VENICE, S- Cinetone delivers natural mid-tones that are essential to healthy-looking skin color, plus soft colors and gorgeous highlights. Because S-Cinetone produces all this directly within the camera, it's easy to achieve a beautiful cinematic look without the necessity of post-production grading.
Shooting Modes for Optimized Image Quality
Three modes are provided for recording with the S-Log3 gamma curve (“Log Shooting Setting” in the menu) when post processing will be used to grade and finish the footage. Cine EI, inherited from Sony’s high-end Cinema Line models, offers wide latitude and the highest possible image quality. Cine EI Quick automatically switches the camera’s base ISO according to the selected Exposure Index (EI). And Flexible ISO provides the greatest flexibility for exposure settings.
Apply LUTs directly on HDMI and LCD Monitor Outputs
When recording with the S-Log3 gamma curve, the low- contrast image displayed on the monitor can make it difficult to judge how the final image will look. The FX30 allows custom LUTs to be applied to the LCD monitor and HDMI output, providing a more accurate preview of the final image. LUTs can also be embedded in clips to facilitate post-production processing. The FX30 even includes a new s709 preset LUT that can provide a more cinematic look while monitoring. In addition to the preset LUTs, up to 16 user LUTs (.cube format) can be imported into the camera via memory card.
Dual Base ISO for Wide Latitude and Low-Noise
The Dual Base ISO provides two sensitivity settings - one at ISO 800 and one at ISO 2500. This allows you to select an appropriate noise floor, for clean images, as well as maximize the FX30’s dynamic range when shooting in both bright or low-light conditions. Furthermore, a wide 14+ stop latitude minimizes the risk of blown highlights or blocked shadows over a wide range of lighting conditions, making it easier to shoot top-quality images in just about any shooting situation.
Smooth Cinematic Quality with Color Grading
For full-scale productions, the S-Log3 gamma curve provided in the FX30 has been designed for smooth gradations, and to make it easier to achieve cinematic image quality when color grading in post-production. Both S-Log3 and S-Gamut3.Cine offer high-quality color reproduction over a wide latitude, and special care has been taken to adjust the camera's output to ensure that the highest image quality can be easily achieved during post processing.
Dependable and Accurate Autofocus
Sophisticated tracking features keep your subject in steady focus so you can concentrate on composition. Wide-area AF with intelligent tracking uses focal-plane phase- detection for tenacious subject tracking across almost the entire frame. Real-time Eye AF ensures precise focus on the face and eyes (human, animal, or bird), while Real-time Tracking provides reliable tracking thanks to Sony‘s unique AI-based subject recognition algorithms. Improved tracking is achieved even when shooting at high 120p frame rates.
Active Mode Image Stabilization
Active Mode utilizes an in-body 5-axis sensor shift image stabilizer and provides increased stabilization for movie shooting. A precision gyroscope sensor accurately measures camera shake and compensates optically, making stable video possible even when shooting hand-held without a gimbal, even while walking, and at 4K high resolution.
Extensive Recording Formats
The FX30 can record 10-bit 4:2:2 video internally when using Long GOP or All Intra compression, making it possible to grade for fuller, more natural gradations while generally providing greater editing freedom. In addition to XAVC S AVC/H.264 encoding, XAVC HS format recording, using the HEVC/H.265 codec, roughly doubles the compression efficiency. XAVC S-I 4K and XAVC S-I HD formats provide per-frame Intra compression so the user can choose the most suitable format for the job at hand.
4K Recording up to 120fps
The FX30 offers 4K recording at up to 120 frames per second. Extraordinarily smooth 5x (max.) slow-motion imagery at QFHD resolution with autofocus provides new expressive capability. The ability to capture moving subjects in smooth slow motion opens up a whole new world of creative potential.
4K 16-Bit RAW Output
For demanding post-production workflows, 16-bit RAW output is available over HDMI connection to compatible external recorders while XAVC HS 4K, XAVC S 4K, or XAVC S-I 4K, and proxy, files are simultaneously captured in- camera. RAW video output is 4672 x 2628 [16:9] resolution, exceeding DCI-4K resolution.
A selection of Creative Looks makes it easy to create interesting moods right in the camera. The Creative Look presets can be used as is, or further customized using individual parameter settings such as hue, color depth, brightness, contrast, and sharpness. Fine adjustment of preset looks can be made according to the user's preference, and favorite settings can be registered as custom looks.
Sophisticated Focus Functions
The FX30 makes fast, accurate focusing as easy as possible. AF Assist smoothly switches between auto and manual focus, it enables easy rack focusing, and it can save time even when you are primarily using manual focus. Focus Map makes it easy to visualize depth of field while shooting and Breathing Compensation provides a stable angle of view when rack focusing by minimizing the field- of-view shift that can occur with some lenses. Additional breathing compensation is also available in post-production software supported by camera metadata.
Recording with Cooling Fan Ventilation
For uninterrupted 4K 60p recording, the FX30 features an innovative heat dissipation structure, including a unique Sony Σ (sigma) shaped graphite-alloy heatsink. A complete internal redesign optimized the camera’s airflow and heatsink placement. When required, a silent cooling fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.
Metadata to facilitate Editing
Sony's Catalyst Browse and Prepare software are ideal production partners for the FX30. The camera records five types of metadata: LUTs, image stabilization, focus breathing, camera rotation and shot marks. These can be useful when previewing and preparing to edit in Sony's free Catalyst Browse or purchased Catalyst Prepare software.
Proxy Recording for Efficient Editing Workflow
Low-bitrate HD proxy files can be recorded simultaneously in nearly all recording formats. The smaller proxy video files can be used for editing previews prior to final 4K online editing, reducing computer load and enabling a faster workflow.
Time Code Input Synchronization
The FX30 can be synchronized (TC-IN) to a second camera that has a time code output terminal by connecting the FX30’s Multi/Micro USB terminal to the time code source via an optional VMC-BNCM1 adaptor and standard BNC cable.
Still Image Shooting Functions
Because the FX30 can shoot stills as well as movies, it can be handy to use when you are location hunting. For example, you can use it to shoot stills that will be used in storyboards or pre-production presentations.
New Main Menu Style
The camera’s new list-style main menu gives you access to frame rate, shutter speed, and other essential shooting parameters. Main menu display can be assigned to a custom button so that parameters can be quickly checked and edited as needed prior to shooting.

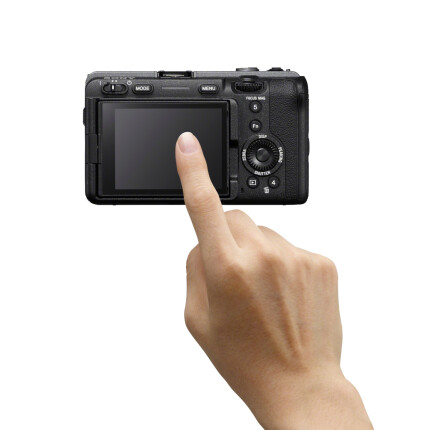

Flexible, High-Resolution Touch-Panel LCD Screen
The FX30 features a side-opening vari-angle rear monitor that allows broad positioning and framing freedom for gimbal-mounted shots, handheld shots, very low ground- level shots, or whatever the shoot requires. The large 3.0 type 2.36 million-dot (approx.) touch-panel LCD monitor provides clear viewing in bright outdoor settings. The function (Fn) menu can be displayed by swiping up on the monitor, for quick access to frequently used assigned functions.

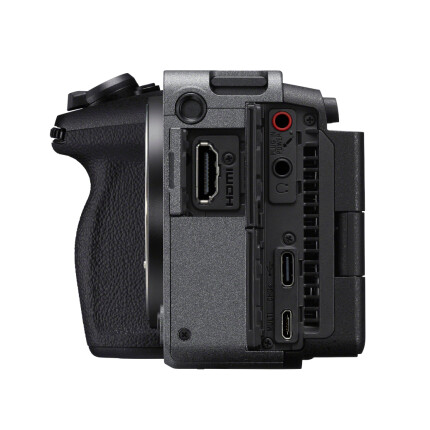

An HDMI Type-A connector can be used to feed 4K, 16-bit RAW, or other movie formats to an external recorder or display device, with the option of status overlays included in the HDMI output. Other connectors include USB Type- C®, Multi/Micro-USB, mic, headphone, and a Multi Interface (MI) Shoe with built-in digital audio interface. The FX30 also supports UVC (USB Video Class) and UAC (USB Audio Class) standards and can serve as a high- performance streaming camera or webcam.

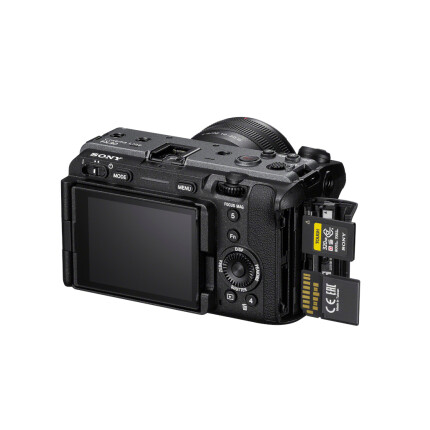

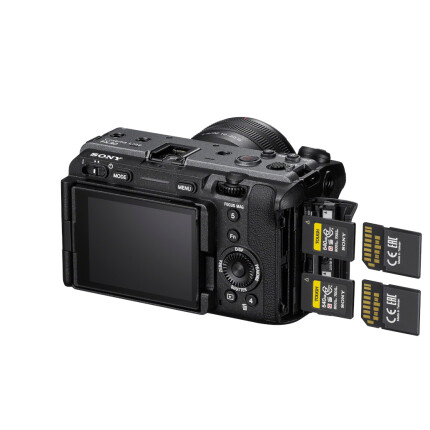

Dual Card Slots
The FX30’s two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes. CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bit rates. Dual slots enable either relay or simultaneous recording.

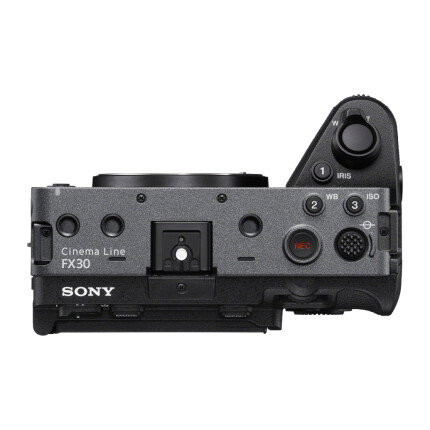

Emphasized Recording Displays
Recording (tally) lamps are provided on the upper front and rear of the camera. The REC button on the top of the camera is also illuminated and linked to the rear recording lamp. To make it clear when the camera is in record mode a red frame appears on the monitor display so that the operator can easily confirm that recording is in progress.
Comprehensive Zoom Control
The zoom lever placed on the top of the grip not only controls compatible powered zoom lenses, but also allows Clear Image Zoom to be used with unpowered zoom and prime lenses with less image degradation. This can significantly reduce the number of lenses required for many projects. Zoom speed can be assigned to a custom button or selected conditionally depending on whether the camera is in standby mode or recording.
Uninterrupted Power for Extended Recording
The FX30 supports USB PD (Power Delivery), allowing higher power to be supplied from an external source so that recording can be continued for extended periods without draining the internal battery.

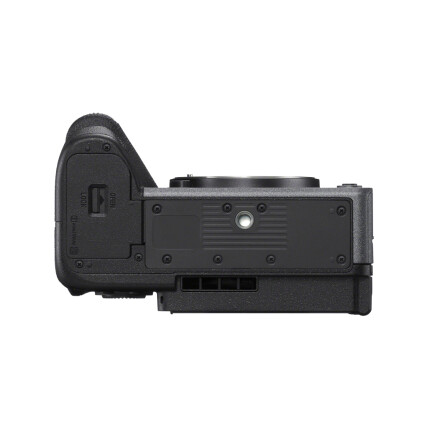

Multiple Threaded Mounting Points
Designed for mobility and efficiency, the FX30 body features five thread holes (1/4-20 UNC) for accessories that make a cage unnecessary. While providing plenty of capacity for accessory attachment, the fact that no cage is required contributes to reduced system size and weight for easier handheld shooting. The XLR handle unit provides three additional thread holes for accessories. External monitors, recorders, batteries, video lights, extension grips, wireless microphone receivers, or other add-ons can be stably and securely attached.
Compact, Lightweight Camera Body Designed for Mobility
The FX30 body is just 77.8 mm high, 129.7 mm wide, and 84.5 mm deep, excluding protrusions. It weighs 646 grams with battery and memory card (951 grams with XLR handle unit) and features a distinctive flat-top design that is suitable not only for handheld shooting, but for gimbal mounting. The camera grip has been designed to provide optimum flexibility, stability, and comfort for extended handheld shooting sessions.
Dust and Moisture Resistant Design
Dust and moisture resistance refinements have been implemented throughout the body. Sealing is provided throughout the body as well as the battery compartment cover, and the media slot has a double sliding cover and lock lever to keep water out. Cooling airflow from inlet to exhaust is completely isolated from the body interior. All routes for dust and moisture entry have been examined to ensure reliable operation in challenging environments.
Durable Magnesium Alloy Chassis
The camera’s body and covers are constructed from a lightweight magnesium alloy to enhance durability and performance even in challenging environments.

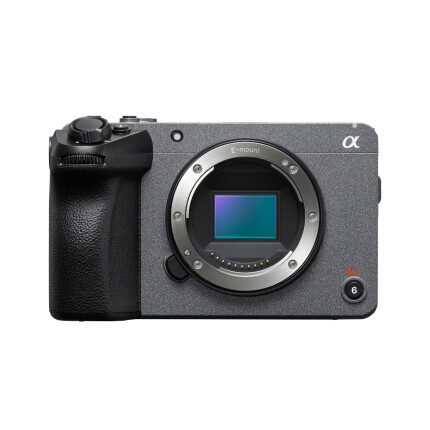

Connect Seamlessly with E-Mount Lenses
The One Mount concept is based on Sony's E-mount platform of interchangeable lenses. The FX30 is compatible with all E-mount lenses, including power zoom and video optimized models, so you can choose the right lens for any situation.
There are no reviews for this product.
|Video Resolution:||HDMI: 4672 x 2628 (59.94p, 50p, 29.97p, 25p, 23.98p), 16bit|
|Dimensions:||5.12" x 3.12" x 3.36"|
Body Only: 562g
With Battery and Memory Card Included: 646g
|Battery Type:||Sony NP-FZ100|
|Memory Card Slot:||2x CFexpress Type A or SD Card|
|Memory Card Specs|
|Memory Card Type:||
2x CFexpress Type A / SD card
(Simultaneous Recording, Sorting, Auto Switch Media, Copying)
|Image Sensor Size:||APS-C type (23.3 x 15.5 mm) Exmor R CMOS sensor|
|Aspect Ratio:||1:1, 3:2, 4:3, 16:9|
|Shutter Type:||Electronic shutter|
|Monitor Size:||3.0" Touch Panel|
Movie ISO: 100-32000 equivalent
Movie Auto ISO: 100-6400 (selective lower and upper limits)
Still Image ISO: 100-32000 (expandable to ISO 50-102400)
Still Image Auto ISO: 100-6400 (selectable lower and upper limit))
|Camera Body Weight:||562g|
|Wi-Fi:||Yes 2.4GHz band/5 GHz band|
|White Balance Modes:||
Color Temperature (2500 to 9900K) & color filter
|Camcorder Type:||Cinema Camera|
LPCM 2 ch(48 kHz 16 bit)
LPCM 2 ch(48 kHz 24 bit)
LPCM 4 ch(48 kHz 24 bit)
|Audio Connectors:||XAVC Proxy: AAC-LC, 128 kbps, 2 channels|
|Video ISO Range:||
Movie: ISO 100-32000 equivalent
Auto: ISO 100-6400 (selectable lower limit and upper limit)
USB Type-C® (x1, SuperSpeed USB 10 Gbps (USB 3.2) compatible)
|Built-In Speaker:||Built-in (monaural)|
|Built-In Microphone:||Built-in (stereo)|
|Focusing System:||Fast Hybrid AF (phase-detection AF / contrast-detection AF)|
|Mount Type:||Sony E-Mount|
In The Box
Sony FX30 Super 35 Digital Cinema Camera (ILME-FX30)
- Rechargeable Battery (NP-FZ100)
- USB battery charger (AC-UUD12)
- Body cap
- MI Accessory shoe cap
- USB-A to USB-C cable (USB 3.2)

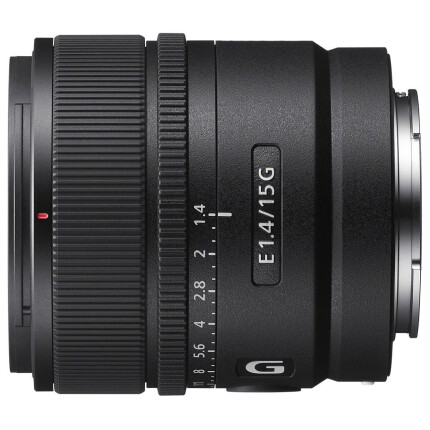

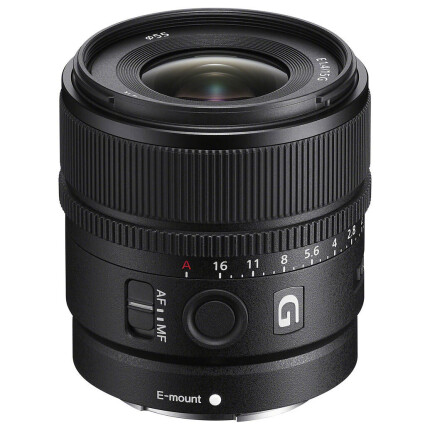

Sony E 15mm f/1.4 G Lens
- Sony ALC-F55S 55mm Front Lens Cap
- Sony ALC-R1EM Rear Lens Cap
- ALC-SH171 Lens Hood
