overview

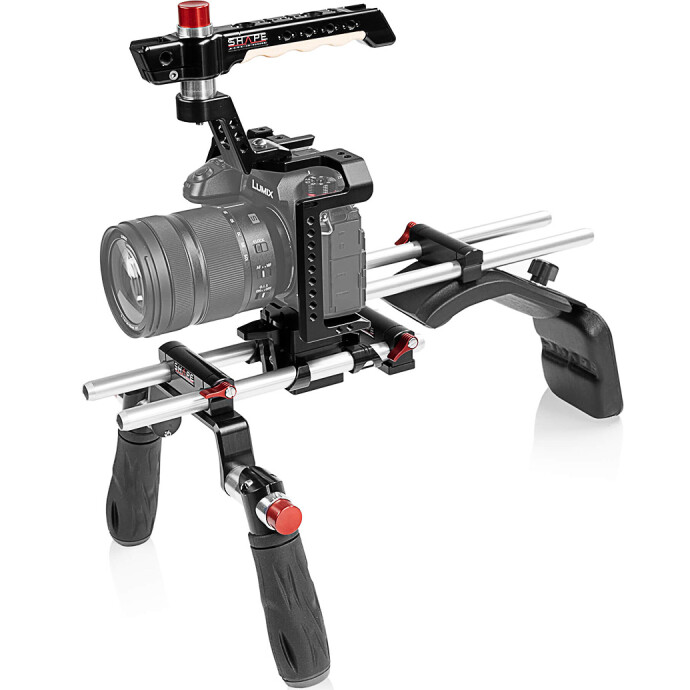

Panasonic Lumix S1R, S1, S1H cage

Made from CNC-machined aluminum, the cage is specially designed for the Panasonic Lumix S1H, S1R and S1. The camera is strongly mounted to the cage using a 1/4-20 screw and an Allen key. The cage is designed with the following mounting options: (1) cold shoe, several 1/4-20 threaded holes and (2) 3/8"-16 threaded holes with anti-rotating Arri hole patterns. The design of the cage also allows easy access to all control buttons, side outputs, the memory card, the battery compartment, the lens release button and the camera hot shoe for the audio unit system. All doors and locks are fully usable when the camera is in the cage and its intelligent design allows you to operate the camera without having to remove the cable doors. In addition, the strap hooks can remain attached to the camera while being inserted into the cage. The cage is also designed with a protective lock system to secure and hold in place your 3 left cables as well as your 4K HDMI cable. The bottom of the cage has (4) 1/4-20 threaded holes and (1) 3/8-16 threaded hole to mount a quick release tripod plate to switch from a tripod to a shoulder configuration. In addition, the design of the cage ensures that the camera stays in place and does not move forward with heavier lens.

Wooden Push-Button Top Handle

The ergonomic and easily removable SHAPE Top Handle was designed to provide the required space for mounting the Panasonic Lumix S1H/S1R/S1 Audio Unit. It offers a comfortable and secure wooden grip for carrying your camera and securing accessories. It also features the SHAPE Push-Button Technology, enabling you to balance the weight and rotate the handle in the position you need for a 360-degree axis. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its locked. This nicely crafted Push-Button Top Handle provides multiple mounting options, including ARRI Standard 3/8"-16 anti-rotating hole patterns on the top, SHAPE Standard 1/4"-20 anti-rotating hole patterns on the top and side, cold shoe mounts, and a 3/8"-16 UNC threaded hole at the front. The SHAPE Rod Clamp at the front (15CTH) can be added, allowing you to directly mount a 15 mm rod onto the handle. Made of CNC Aluminum, the 15 mm LW Clamp (15CTH) can be easily attached to the top Handle. The clamp is designed to support a 15 mm rod such as the SHAPE REVOLT EVF Mount Bracket. The ratchet knob clamp lets you adjust and strongly fix the position of the 15 mm rod to the SHAPE Top Handle and (2) cold shoe mounts, one at the front of the handle and one at the back.

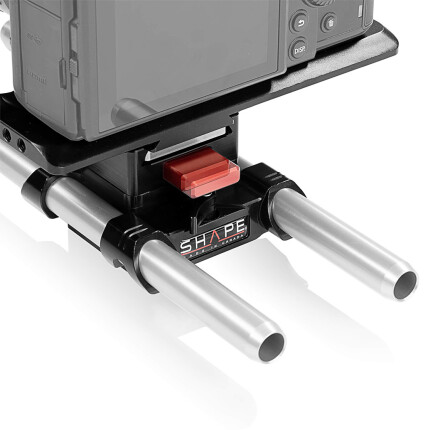

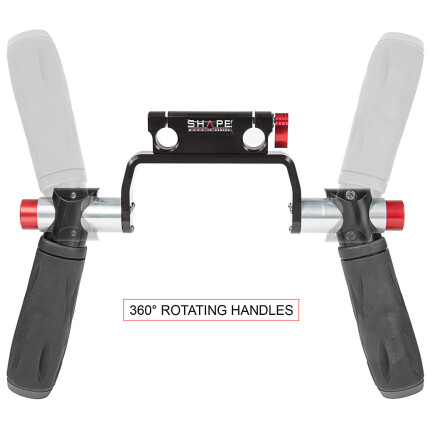

Quick handle rod bloc

The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

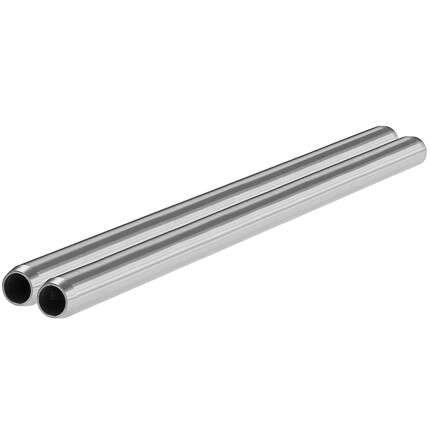

15 mm 10" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 10-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

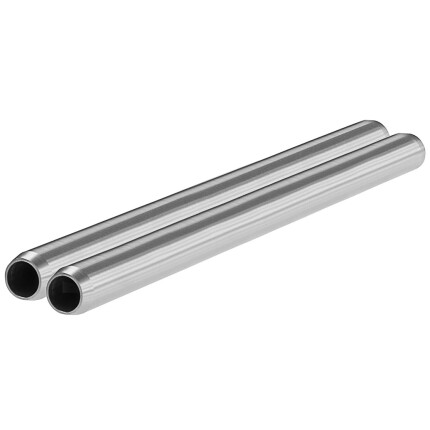

15 mm 12" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 12-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

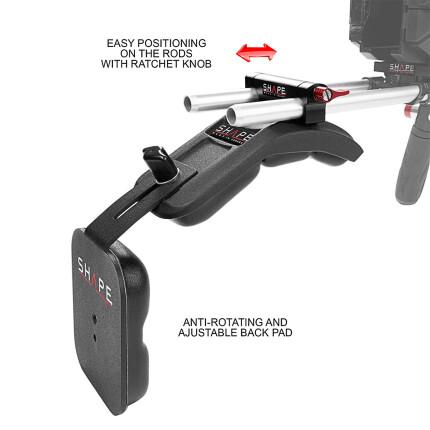

Composite mini shoulder pad

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back pad

The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2" vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.

Product Reviews

In The Box

• SHAPE Quick Handle + Rod Block
• SHAPE Mini Composite Shoulder Pad

• SHAPE Rod Block
• SHAPE Camera Screw Knob (1/4"-20)
• SHAPE Back Pad

• SHAPE Cage with Top Handle and 15mm Rod System for Panasonic Lumix S1, S1R & S1H

• 360° Top Handle with Wooden Grip
• 15mm Lightweight Quick Release Rod Base System
• 2 x 15mm Rod (10")
• SHAPE 15mm Aluminum Rods (Pair, 10")

• SHAPE 15mm Aluminum Rods (Pair, 12")

• Offset Rail Rod Block
