overview

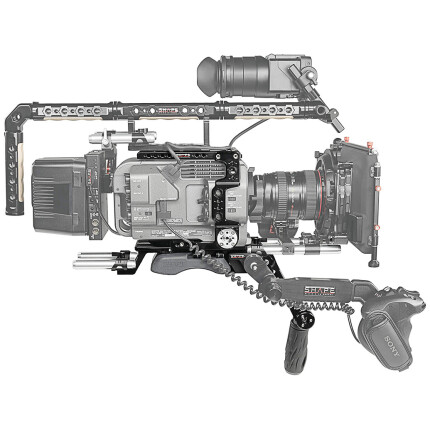

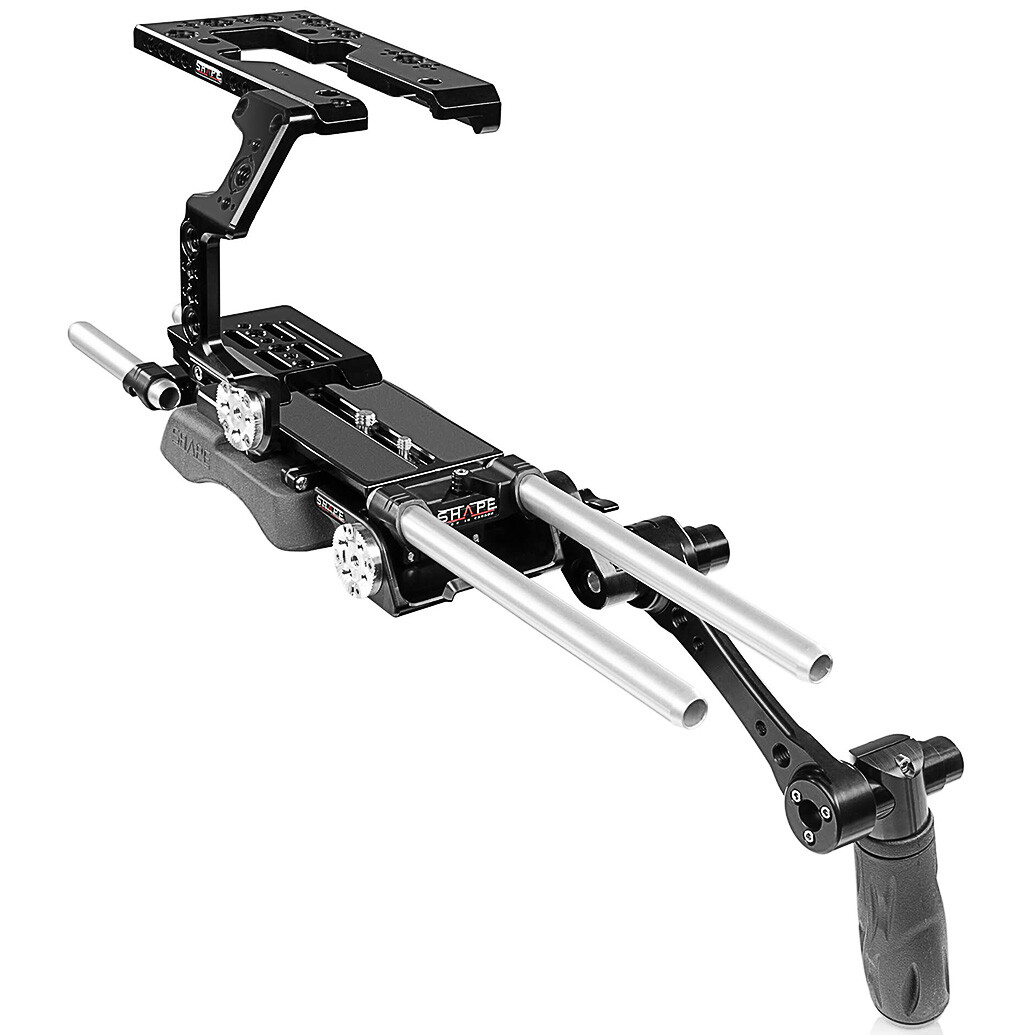

Add accessories and handheld functionality to your Sony PXW-FX9 camera with this Pro Shoulder Rig Kit from SHAPE. This kit includes a shoulder mount baseplate with 15mm rod system, a form fitting side plate with Arri rosette , a top plate, a rear insert plate, and a rosette handle with black push-button. The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The rear insert plate attaches to the rear of the camera to support it on the baseplate. The 15mm rods allow you to mount additional accessories like a matte box and follow focus. The push-button handle attaches to the baseplate and can rotate using the rosette joints for the most comfortable position.

Sony FX9 V-lock quick release baseplate

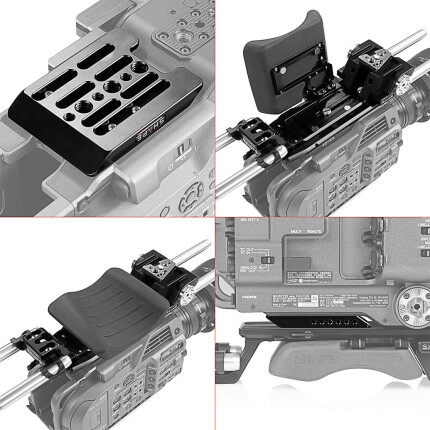

The FX9 baseplate is designed to match the Sony FX9 optical center. The bracket system with magnet let you swivel the baseplate to the left for an easy access to the camera screws. It is designed with 2 standard Arri rosettes for handles or accessories mount. The quick release adapter plate is compatible with most VCT tripod plate and there is also a protective rubber pads on top of the plate to protect your camera. Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

Sony FX9 camera cage

Add accessories and handheld functionality to your Sony PXW-FX9 camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Sony FX9 handle.

Sony FX9 rear insert plate

The rear insert plate is a CNC aluminum support plate compatible with the Sony FX9 camera. The plate mounts to the camera body via three M4 mounting screws. The center of the plate is designed with (3) 3/8-16 and (3) 1/4-20 threaded holes for tripod mount. The large surface of the plate also provides necessary support when the camera is mount to a tripod or a shoulder mount.

DOUBLE QUICK HANDLE ARRI ROSETTE SINGLE SHADOW

Left or right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. The arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arm for your comfort. The arm attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place. The arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

15 mm 8 in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

Product Reviews

In The Box

• SHAPE Quick Release Baseplate with Rear Insert Plate for Sony PXW-FX9
• SHAPE Compact Revolt Shoulder Baseplate
• SHAPE Rear Insert Plate for Sony PXW-FX9 Camera
• SHAPE Camera Cage for Sony FX9 Camera
• Single Left Handle with ARRI Rosette
