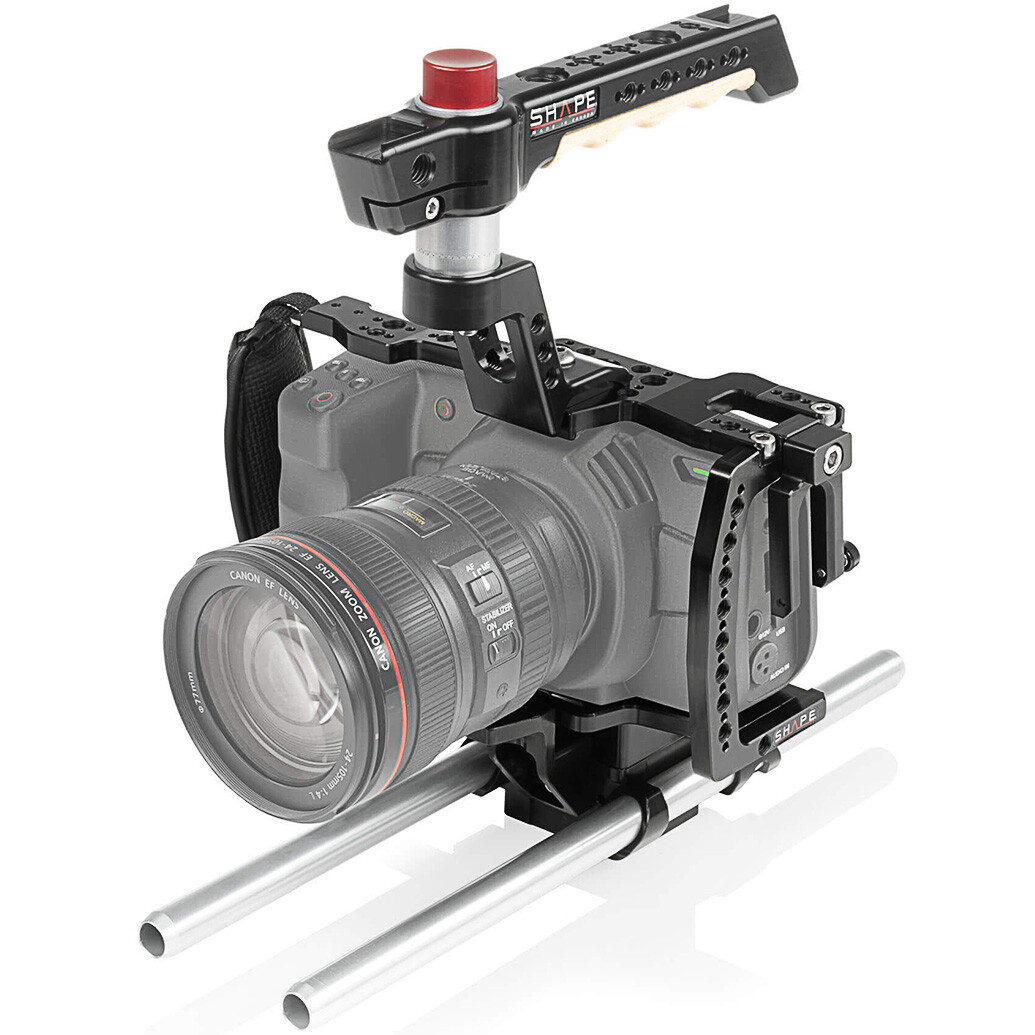

Shape Camera Cage w/ 15mm Rod System for Blackmagic Pocket Cinema 6K and 4K

overview

The Camera Cage for Blackmagic Cinema Camera 4K from SHAPE provides a formfitting base for attaching accessories, handles, or grips to your BMCC 4K. All controls, ports, and slots remain accessible when the cage is mounted to your Blackmagic Cinema Camera 4K. It gives you easy access to the memory card, the battery door, the lens release button and all other controls and outputs. The cage is designed with one cold shoe at the top to mount accessories like a microphone, magic arm (RPB2AHS), LED or Top Handle (DTH1). There is also multiple 1/4"-20, 3/8"-16 threaded holes with ARRI anti-twist threads to strongly secure the camera and accessories in place. Constructed from lightweight yet sturdy CNC-machined aluminum, the cage includes a left-side clamp to prevent your HDMI cable from accidentally disconnecting. A padded hand strap adds comfort when grasping the right side of the camera.

• Formfitting, lightweight and robust CNC aluminum cage

• Easy to assemble and disassemble
• Maintains access to all camera controls, ports, and slots
• (1) cold shoe mount on top
• Multiple 1/4"-20, 3/8"-16 holes with ARRI anti-twist mounting threads
• 1/4"-20 tripod threads on Base
• HDMI cable clamp prevents accidental cable disconnection
• Padded hand strap to grasp and feel the camera on right side

Removable top handle

The SHAPE removable top handle is made of CNC Machined Aluminum and genuine Canadian maple wood to give you a solid and comfortable grip on your camera. It features our patented Push-Button technology for fast adjustment. It’s easy to strongly attach the top handle to the camera cage with the cold shoe attachment system. The top handle features the following mounting options to strongly attach more camera accessories:  (1) EVF mount, (15) ¼-20 threaded holes with stoppers and (2) cold shoe brackets at the front and back of the handle.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle or top handle in the best position for your use. Push, adjust, release, and then its lock.

Quick release baseplate, adjustable rod bloc system

The quick release baseplate can be used as a table stand or can be attached to a tripod. The bottom of the base block designed with a removable Metabones® Support Bracket perfect to support heavier lens. The rod bloc travel height is adjustable with an Allan Key to allow an optimal adjustment of your matte box, Follow Focus and optical center. A rod clamps allowing you to use available rod mounted accessories.

15 mm 10" rods (15TUBE10)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter

• 10-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish
