overview

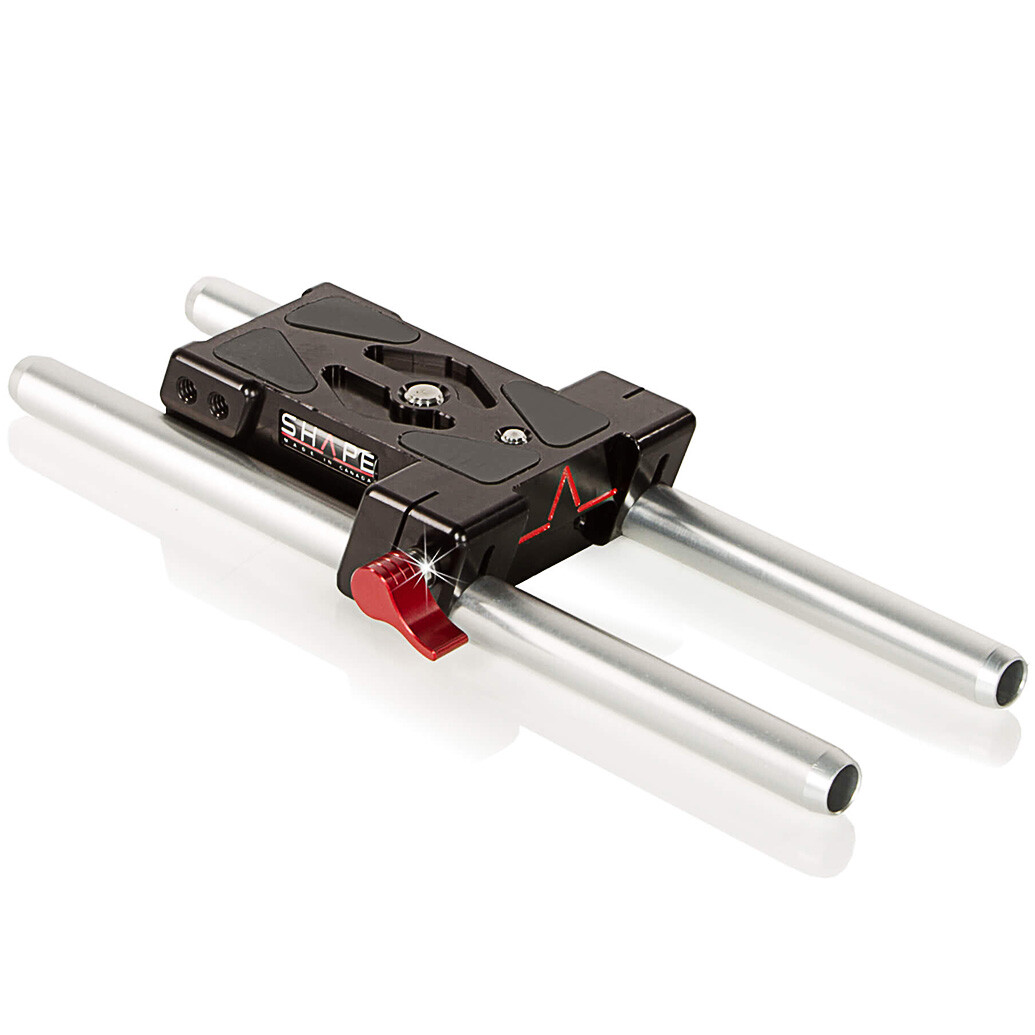

Small and lightweight baseplate is a perfect solution for PXW-FS5, FS5M2. It is designed to fit with all the key features of the camera and is also perfect for drone and gimbal application. At the top of the baseplate there are rubber pads so that the camera doesn’t sit directly on the aluminum. The baseplate fits 15 mm standard rods, and the rods are secured with a red ratchet knob screw. On the side, you have ¼-20 threaded holes for mounting options. Under the baseplate, we added four (4) ¼-20 and two (2) 3/8-16 threaded holes that allow you to attach a tripod plate. To reduce the weight of the baseplate, we removed excess aluminum from the bottom of the plate during the machining process. It comes with a pair of Rods to let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
We also designed a removable support bracket for a METABONES adapter (FS5MA) that can be added on the baseplate to support the weight and remove stress to the camera lens mount. Fixed with 2 screws in front of the baseplate, it can be removed when not needed. (1) ¼-20 and (1) 3/8-16 captive screw are included in this package to secure the camera’s position in translation and rotation so it won’t move. For a precise positioning, we designed the bracket with a 3 mm vertical adjustment to make sure it’s well positioned for the best support. The baseplate includes a set of 15 mm 10 inches rods and is designed with a lightweight system for mounting any standard 15 mm accessories.
15 mm 10" rods
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 10-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
