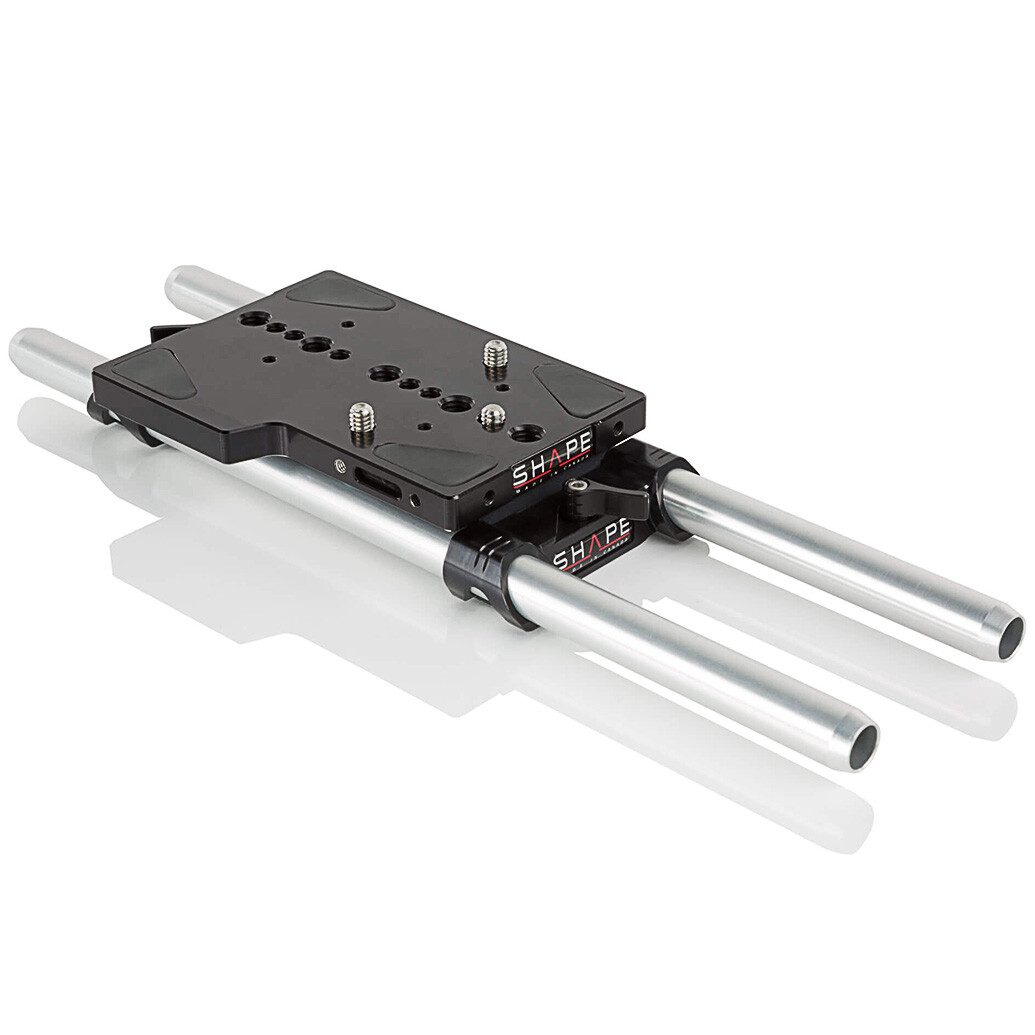

Shape Baseplate with 15mm Rod System for Canon C200 Camera
- Made of solid and robust CNC machined aluminum
- 15 mm LW Rod System designed to respect the C200 optical center
- Ratchet key knobs to reposition the rod bloc system
- Features a pair of 15 mm rods 12" through the length of the baseplate
- Attaches underneath the camera with 3/8-16 and ¼-20 screws
- 4 points attachment to strongly secure the camera and for tripod plate attachment (3 x ¼-20 and 1x 3/8-16)
- 4 rubber pads at the top of the base to protect and securely sit your C200 Camera;
- Designed with an adapter plate featuring several ¼-20 and 3/8-16 threaded holes
- Adapter plate is perfect to optimize your C200 camera balance on a tripod, gimbal or drone
- The Allen key is easily accessible and securely magnet-fixed at the bottom of the Baseplate
overview
The SHAPE Baseplate is designed for use with the Canon C200 camera. The baseplate features three attachment points for securing your camera and tripod plate attachment via three 1/4"-20 mounting holes. Unscrewing the bottom section of the baseplate with an Allen key (included) reveals an adapter plate with several 1/4"-20 and 3/8"-16 threaded holes, suitable for optimizing your C200 camera balance on a tripod, gimbal, or drone.
Canon C200 adapter plate (C200AP)
The Adapter Plate for Canon EOS C200 from SHAPE attaches to the base of the C200 camera and allows you to mount your camera onto a rig, tripod, gimbal, or drone. The position of the captive screws matches the threaded holes at the base of the C200.
15 mm 12" rods (15TUBE12)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 12-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
In the Box
- (1) 15mm lightweight C200 baseplate
- (1) Adapter plate
- (1 pair) 15 mm rods 12"
Brand
physical specifications
| Weight | 0.79 lbs / 0.36 kg |
| Dimensions | 4.00 x 4.00 x 1.31 in |
| Color | Black |
detailed specifications
| Material | CNC Aluminum |
brand
| Brand | Shape |
