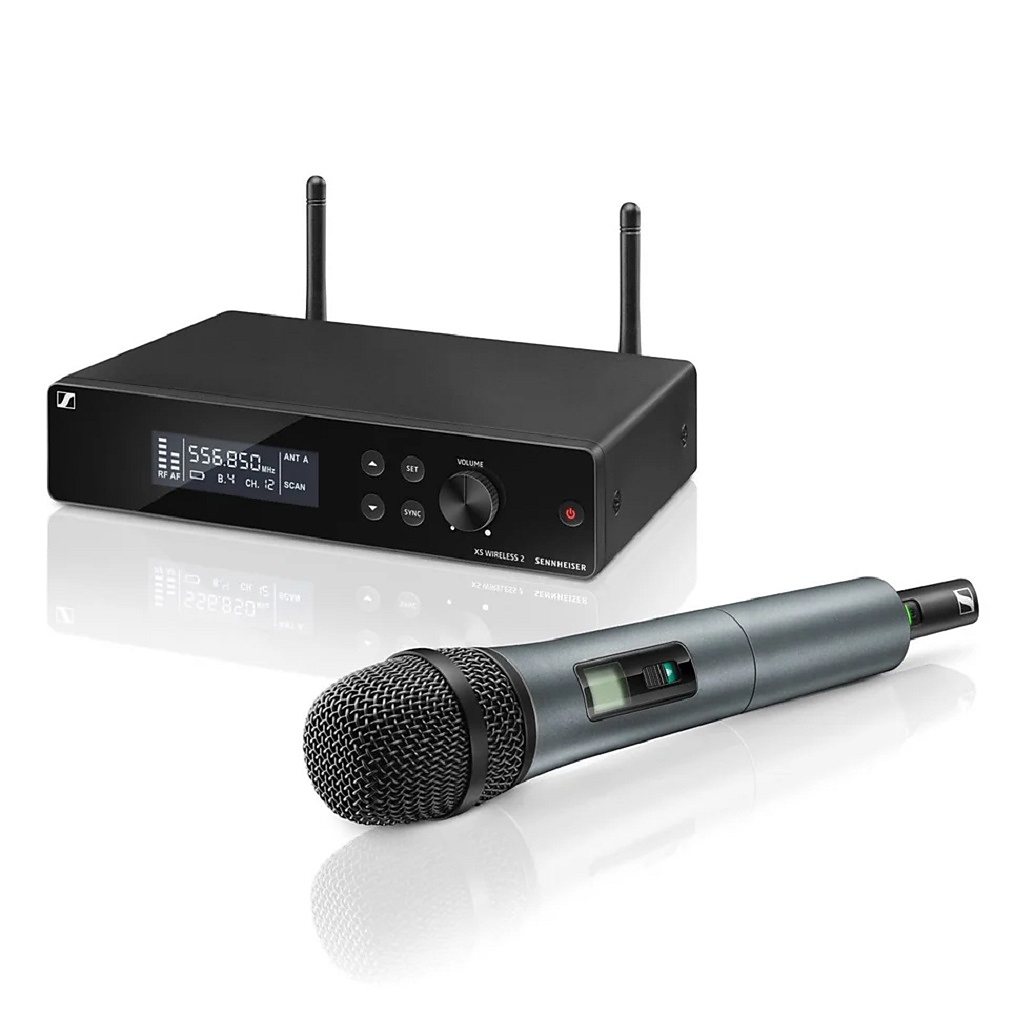

Sennheiser XSW 2-865-A Mic Setup with e865 Capsule (A:548-572 MHz)
Sennheiser
Product # SEN2040MFR #507150ASIN: B06Y4D3HDD
SennheiserProduct # SEN2040MFR #507150ASIN: B06Y4D3HDD
0.0(0) reviews
Usually Ships in 7-14 days.
$549.00
1098 U-REWARDS
- e865 Handheld Microphone
- EM-XSW 2 Receiver
- For Live sound Applications
- up to 12 compatible channels
Usually Ships in 7-14 days.
$549.00
1098 U-REWARDS
Have any questions?1-800-631-0300
OVERVIEW
Raise your voice. High flexibility for those willing to go a step further.
XS WIRELESS 2 grows with your demands by offering an intutive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for Singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
In the Box
- XSW 2-835-A Wireless Handheld Microphone with e835 capsule (A:548 to 572 Mhz)
- EM-XSW Receiver
- SKM 865-XSW Handheld Transmitter
- MZQ1 Microphone Clamp
- NT 12-5 CW power supply
- Rackmount Kit
- Protective Pouch
- 2 x AA Batteries
Brand
(Sennheiser)
detailed specifications
| Type of Microphone | Handheld Microphone |
| Signal-to-Noise Ratio | = 103 dBA |
| Frequency Range | A: 548 to 572 MHz |
| Frequency | Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels |
| Modulation | Wideband FM |
| Switching Bandwidth | Up to 24 MHz |
| Total Harmonic Distortion | = 0.9% |
physical specifications
| Dimensions | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Dimensions | 10.2 x 2.0" (260 x 50 mm) approximate |
brand
| Brand | Sennheiser |
microphone specifications
| Polar Pattern | Supercardioid |
| Sensitivity | Capsule: 1.8 mV/Pa |
| Microphone Type | Condenser, pre-polarized |
wireless receiver specifications
| Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 VDC 300 mA |
| RF Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) |
| Squelch | Adjustable from 3 dBµ V to 28 dBµ V (combined with pilot tone) |
| Receiver Principle | Double superheterodyne |
| Weight | 24 oz (680 g) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
wireless transmitter specifications
| RF Output Power | 10 mW |
| Power Supply | 2 x AA size batteries, 1.5 V |
| Frequency Response | 80 Hz to 16 kHz |
