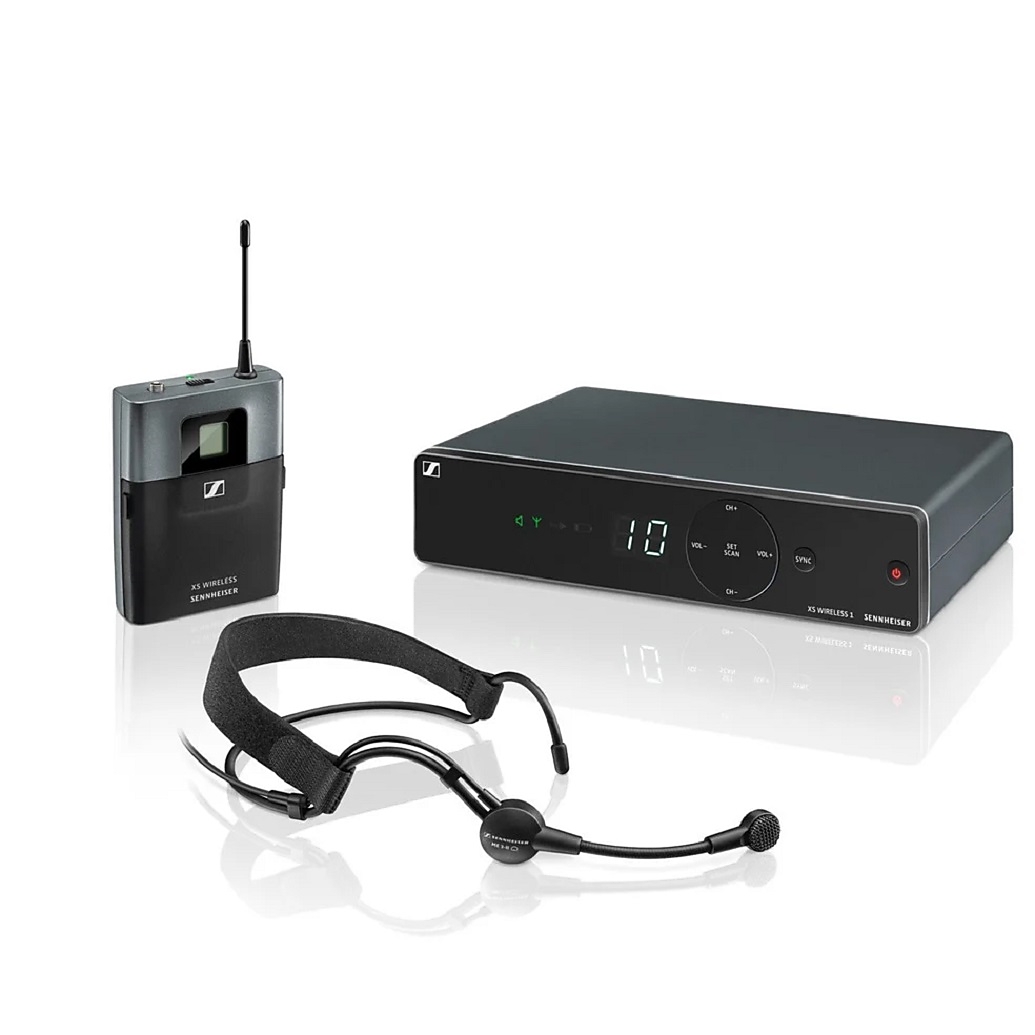

Sennheiser XSW 1-ME3-A UHF Headset Mic System (A: 548 to 572 MHz)

Product #:
Manufacturer #:
  • SK-XSW Bodypack Transmitter
  • ME3-II Headset Microphone
  • EM-XSW 1 UHF Receiver
  • Antenna Switching diversity reception
  • Automatic Frequency Management
Microphone Type:
Condenser, pre-polarized
Our Price: $379.00

Earn 758 U-REWARDS Loyalty Points

Usually Ships in 7-14 days.

Pickup unavailable at Fairfield, NJ

Alert icon Alert me when this item is in-stock

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).



Hands-free performance.

Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for live sound. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.


  • Compact bodypack transmitter, Lightweight headset microphone
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Product Reviews

There are no reviews for this product.

Write a review


Microphone Specifications
Polar Pattern: Cardioid
Microphone Type: Condenser, pre-polarized
Sensitivity: 1.6 mV/Pa
Maximum SPL: 150 dB
Detailed Specifications
Type of Microphone: Headset Microphone
Type of Microphone:
Type or brand of microphone used to capture audio.

View All Attribute Definitions

Total Harmonic Distortion: = 0.9%
Signal-to-Noise Ratio: = 103 dBA
Signal-to-Noise Ratio:
The signal to noise ratio (SNR) is a useful and universal way of comparing the relative amounts of signal and noise for any electronic system; high ratios will have very little visible noise whereas the opposite is true for low ratios.

View All Attribute Definitions

Modulation: Wideband FM
Frequency Range: A: 548 to 572 MHz
Frequency Range:
This is the approximate frequency range that wireless device can operate on.

View All Attribute Definitions

Switching Bandwidth: Up to 24 MHz
Physical Specifications
Dimensions: 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
The measurements of an object.

View All Attribute Definitions

Dimensions: 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
The measurements of an object.

View All Attribute Definitions

Wireless Transmitter Specifications
Power Supply: 2 x AA batteries, 1.5 V
RF Output Power: 10 mW
Frequency Response: Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz
Brand: Sennheiser
Wireless Receiver Specifications
Power Supply: 12V DC, 300 mA
Receiver Principle: Double superheterodyne
Frequency Response: 50 Hz to 16 kHz (-3 dB)
RF Sensitivity: < 3 ┬ÁV at 52 dBA RMS S/N (at peak deviation)

In The Box

  • XSW 1-ME3-A UHF Headmic Set (A:548 to 572 Mhz)
  • ME 3-II Headmic with Cardioid Capsule for wireless systems
  • Foam Windshield
  • NT 12-5 CW power supply
  • 2 x AA Batteries
