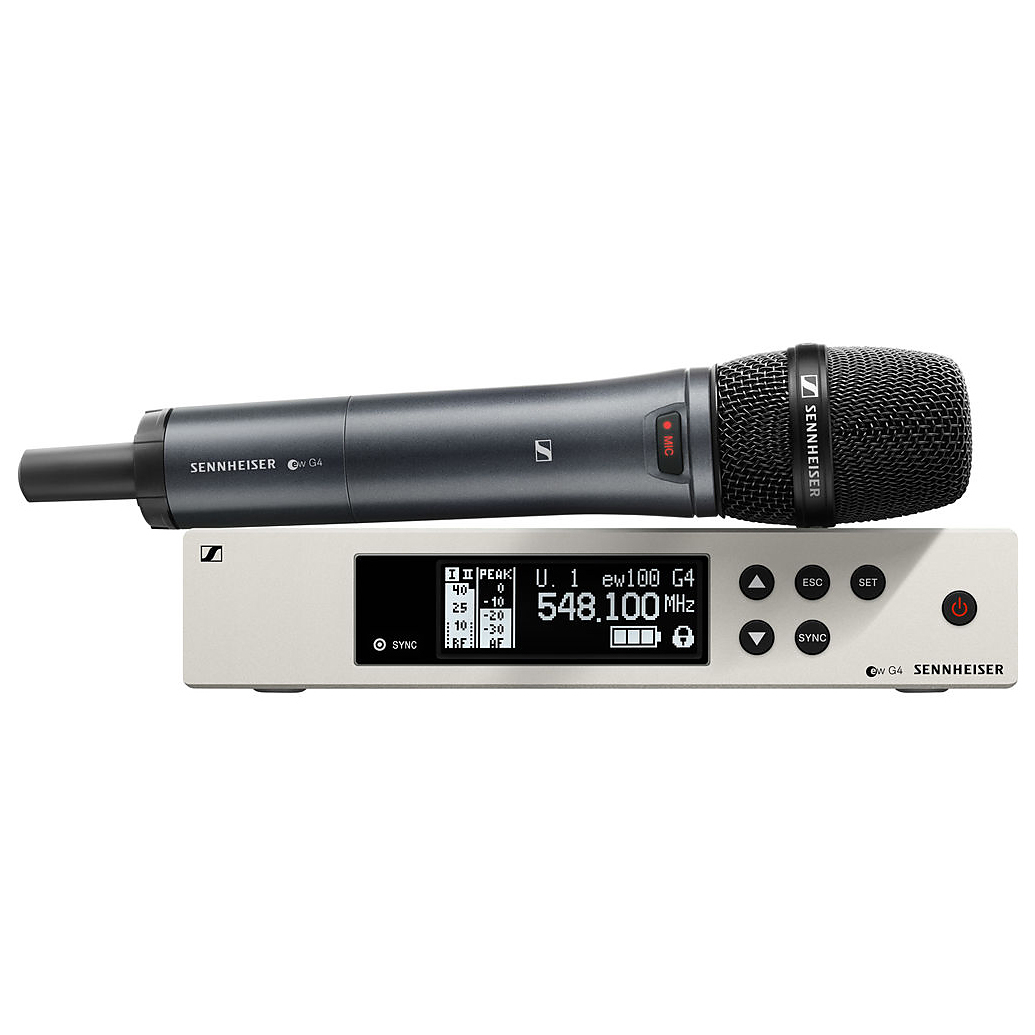

Sennheiser EW 100 G4-835-S Mic System w/MMD 835 Capsule A: 516-558 MHz
- For Presenters and Performers
- MMD 835 Dynamic Cardioid Mic Capsule
- Handheld Transmitter with Mute Switch
- Interchangeable Capsule Design
overview
Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.
-
Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
-
State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
-
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Fast frequency allocation for up to 12 receivers via new linking functionality
-
Up to 20 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 30 mW) depending on country regulations
In the Box
- EM 100 G4 true diversity receiver
- SKM 100 G4-S handheld transmitter
- MMD 835-1 microphone head (835-S variants only)
- Rackmount set
- MZQ 1 microphone clamp
- power supply
- 2 x AA batteries
- 2 x rod antennas
- RJ 10 cable
Brand
detailed specifications
| Type of Microphone | Handheld Microphone |
| Transmission System | Analog UHF |
| # Of Channels | 1680 |
| Maximum Operating Range | 330' / 100.6 m (Line of Sight) |
| Frequency Range | A: 516 to 558 MHz |
| Modulation | Wideband FM |
physical specifications
| Dimensions | 2 x 10.4" / 50 x 265 mm |
| Dimensions | 8.3 x 1.7 x 7.5" / 212 x 43 x 190 mm |
| Color | Black |
brand
| Brand | Sennheiser |
| Brand |
microphone specifications
| Sound Field | Mono |
| Polar Pattern | Cardioid |
| Maximum SPL | 154 dB SPL Peak |
| Sensitivity | 2.1 mV/Pa |
| Form Factor | Handheld Capsule |
| Capsule | Dynamic |
wireless receiver specifications
| Squelch | Adjustable, 5 to 25 dBµV |
| Weight | 2.2 lb / 980 g |
| Audio Output | XLR Output: +18 dBu (Balanced) <br /> 1/4" Output: +12 dBu (Unbalanced) |
| Form Factor | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output<br /> 1 x 1/4" TRS Female Unbalanced Output |
wireless transmitter specifications
| RF Output Power | 30 mW |
| Power Supply | 2 x AA Battery (Included) |
| Frequency Response | 80 Hz to 18 kHz (Mic) |
| Form Factor | Handheld |
