RED Pro Gold Mount I/O Module

OVERVIEW

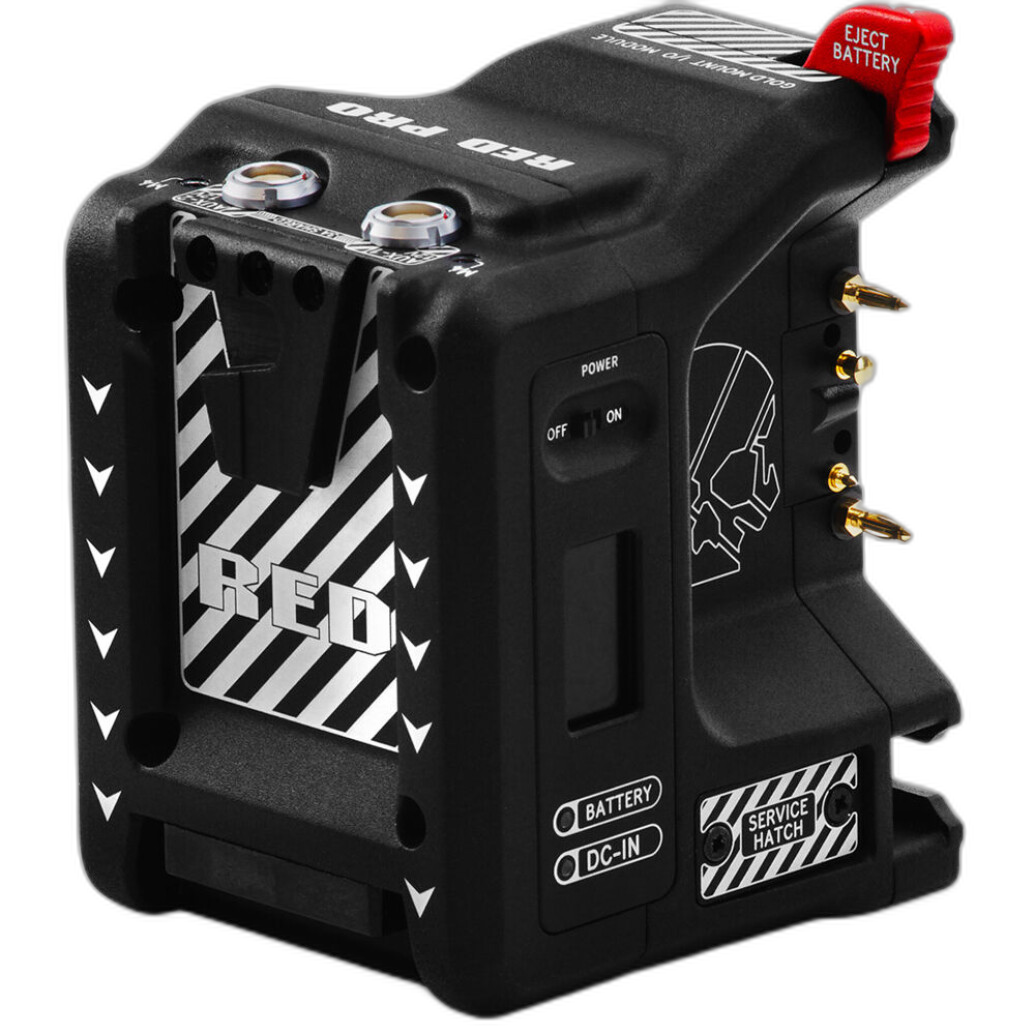

The RED® Pro Gold Mount I/O Module offers a variety of input/ output connections, and it also includes an industry standard V-Lock mount to power your KOMODO-X™ with higher capacity batteries. This V-lock module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following:

• DC Power Input (DC-IN)
• Genlock (BNC)
• CTRL (4-Pin)
• Timecode (5-Pin)
• 1x 3-Pin 24-volt (regulated) Fischer R/S port (3A max)
• 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)

The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations.

NOTES:

• The Red Pro Gold Mount I/O Module is ONLY compatible with Komodo-X
• It is recommended to use 12A Batteries such as the REDVOLT MICRO-G or REVOLT XL-G when using all AUX outputs simultaneously
