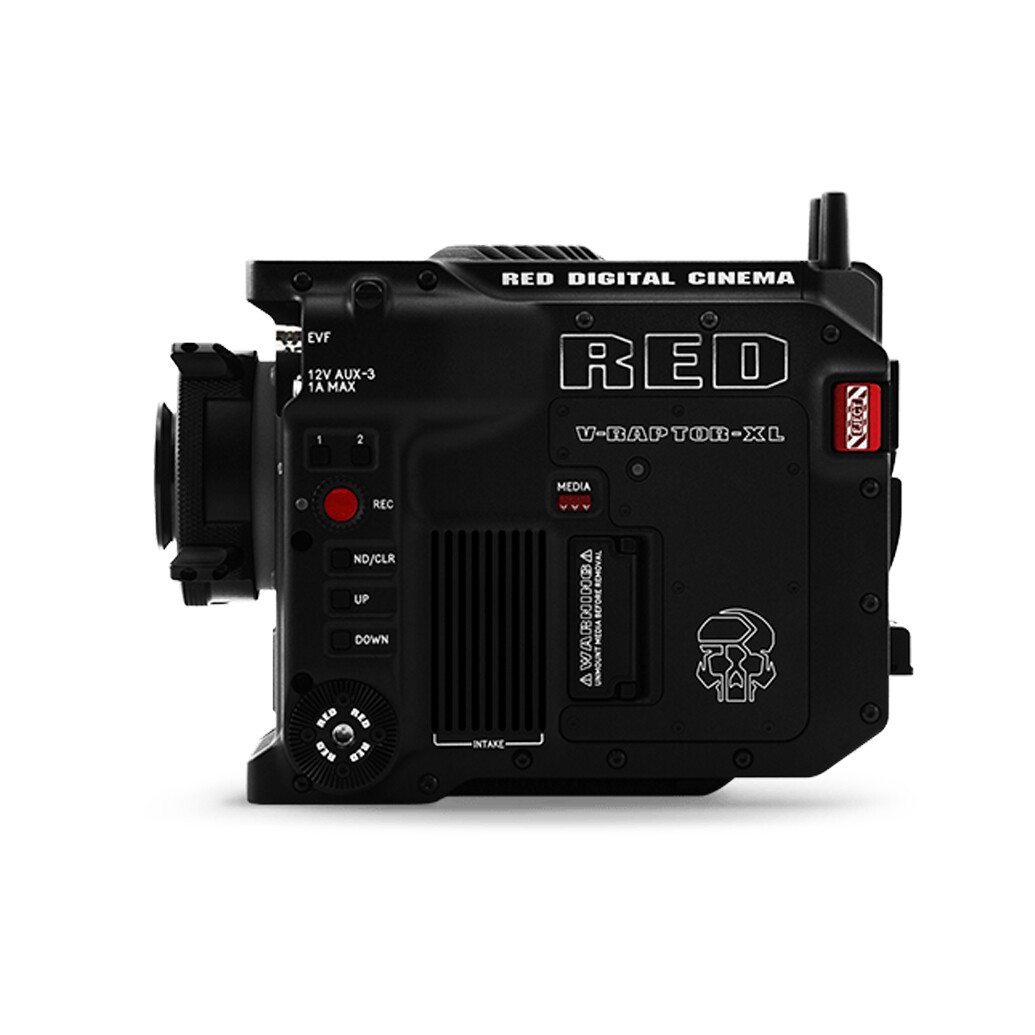

RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera (V-Lock)
Product # RED2154MFR #710-0346ASIN: none
Product # RED2154MFR #710-0346ASIN: none
0.0(0) reviews
Usually Ships in 5 days.
$39,995.00
79990 U-REWARDS
- 35.4MP 8K VV Sensor, up to 8K120 Video
- Purpose-Built Unified Body
- Integrated I/O Array
- Interchangeeable Lens Mount
- Integrated Electronic ND System
- 12V & 24V Outputs
- Wireless Timecode & Genlock
- V-Lock & Gold Mount Power Options
Usually Ships in 5 days.
$39,995.00
79990 U-REWARDS
Have any questions?1-800-631-0300
Flagship V-RAPTOR 8K VV SENSOR in an all-in-one system suited for studio configurations and high-end productions.
- 35.4MP 8K VV Sensor, up to 8K120 Video
- Purpose-Built Unified Body
- Integrated I/O Array
- Interchangeeable Lens Mount
- Integrated Electronic ND System
- 12V & 24V Outputs
- Wireless Timecode & Genlock
- V-Lock & Gold Mount Power Options
In the Box
- RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera (V-Mount)
- V-RAPTOR XL PL Mount
- V-RAPTOR XL PL Mount Shim Pack
- AC Power Adapter (270W)
- 3-Pin XLR to 4-Pin LEMO 2B Power Cable (10')
- RED Logo Sticker
Brand
()
camera attributes
| Image Sensor Size | 40.96 x 21.6 mm (Vistavision) CMOS |
| Lens Mount | ARRI PL |
| Uncompressed RAW | Up to 8192 x 4320 up to 119.88 fps |
| Maximum Resolution | Effective: 35.4 Megapixel (8192 x 4320) |
| External Recording Modes | None |
| Wireless | 2.4 / 5 GHz Wi-Fi Video Output |
| Camera Body Weight | 7.99 lb / 3.62 kg |
| Shutter Type | Electronic Rolling Shutter |
| Monitor Size | 2.4" |
physical specifications
| Weight | 7.99 lb / 3.62 kg |
a/v mode
| Video Resolution | 8K |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
detailed specifications
| Camera Mount | V-Mount |
memory card specs
| Memory Card Type | CFexpress 2.0 Type B |
| Durability | Aluminum |
lens specification
| Mount Type | ARRI |
interface
| Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
a/v details
| USB | 1 x USB Type-C |
| Wi-Fi | 2.4 / 5 GHz Wi-Fi Video Output |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128) ND Filters |
| Built-In Microphone | Mono |
| Video Connectors | 3 x BNC (12G-SDI) Monitor Output, 1 x BNC (3G-SDI) Monitor Output, 1 x Proprietary Monitor Output |
| Audio Connectors | 1 x LEMO 5-Pin Mic/Line, 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Battery | V-Mount |
| Power Connectors | 1 x LEMO 4-Pin (19.5 to 34 VDC) Input, 2 x D-Tap (12 VDC up to 3 A) Output, 1 x LEMO 2-Pin (12 VDC at 3 A) Output, 1 x LEMO 2-Pin (12 VDC at 1.5 A) Output, 1 x LEMO 2-Pin (12 VDC at 1 A) Output, 2 x Fischer 3-Pin (12 VDC up to 3 A) Output |
| Focus | Auto and Manual Focus |
brand
| Brand | Red |
