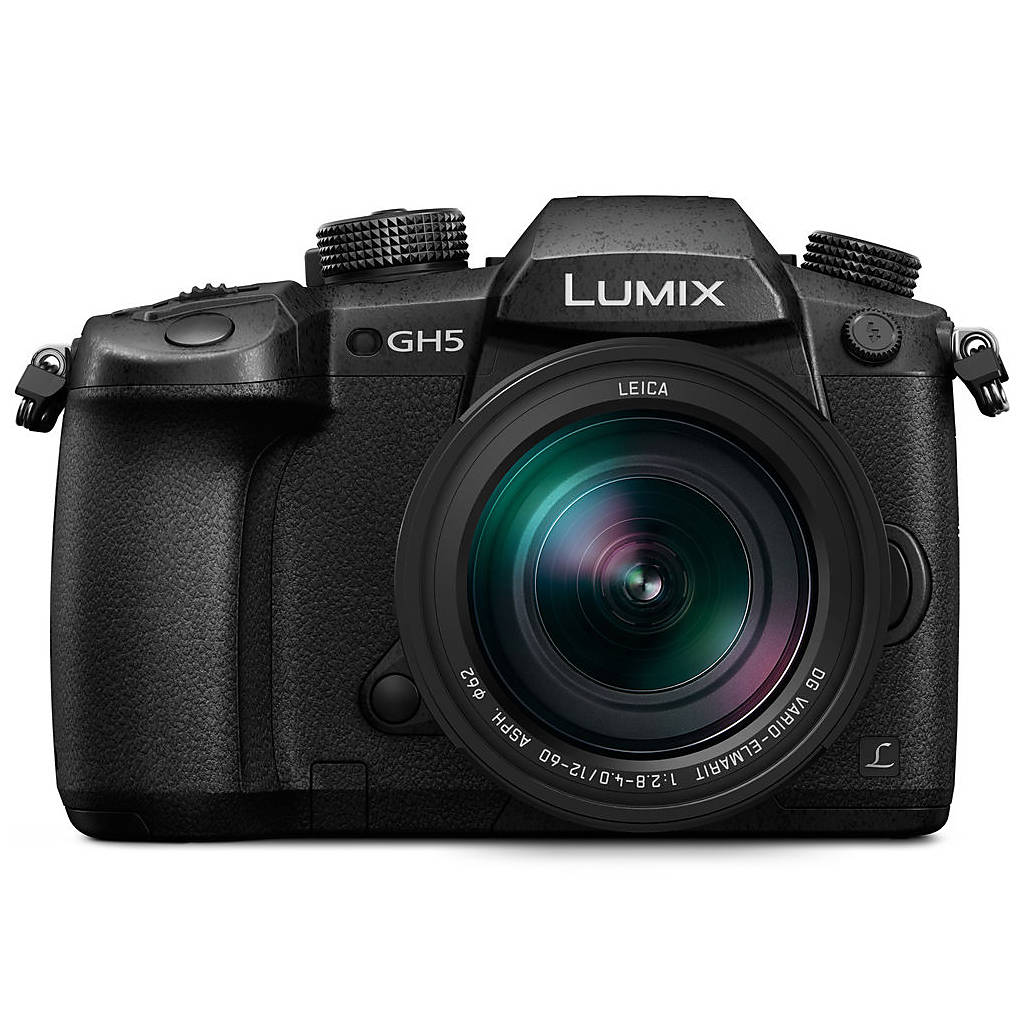

The Panasonic Lumix GH5 Mirrorless Micro 4/3 Camera is a flagship model of the LUMIX G DSLM series cameras. This camera comes with a Leica DG Vario-Elmarit 12–60mm f/2.8–4.0 lens, but can also be used with other micro four thirds lenses. The camera has a 20.3 MP Digital Live MOS sensor and a Venus Engine 10 processor. It can record videos in both 4K and 1080p full HD at a frame rate of 60 fps. The Lumix GH5’s impressive burst mode lets you shoot 6K photos at 30 fps and 4K photos at 60 fps. The 5-axis stabilizer sensor and an advanced Depth-from-Defocus (DFD) autofocus system ensure smooth panning and focusing, respectively. An OLED viewfinder offers a 0.76× magnification. As an alternative, a 3.2-inch swiveling touchscreen LCD is located at the rear, on which you can also make changes in the camera settings. The Lumix GH5 allows you to share videos and photos with friends via the built-in WiFi and Bluetooth. The magnesium-alloy body of the camera is weather-sealed to withstand almost any temperature, impact, and dusty environment.
The Panasonic Lumix GH5 comes with a Leica DG Vario-Elmarit 12–60mm f/2.8–4.0 lens. The lens has 14 elements in 12 groups, which include 4 aspherical and 2 extra-low dispersion elements. This lens construction ensures minimal chromatic and spherical aberrations. Moreover, the lens elements have a nano-crystal coating to reduce lens flare and ghosting. The linear AF motor offers an accurate and fast autofocus. As for the camera, its Advanced DFD technology determines the distance between the subject and the lens in just 0.05 seconds. The camera has 225 autofocus points that can be used to keep a particular area of interest in focus. Additionally, the contrast-detection focus facilitates smooth performance while tracking a moving subject. You may also use the manual mode via focus peaking that highlights focus points by using bright contrast edges with a colored outline. With the Power O.I.S, the lens supports the camera's 5-axis image stabilization to ensure smooth pan and tilt shots. The camera has a maximum ISO sensitivity of 25600 and shutter speed of 1/16000th of a second.
This Panasonic mirrorless camera has a 20.3 MP Live MOS sensor and Venus Engine 10 processor that come together for a superb low-light operation while reducing noise. The swiveling touchscreen LCD allows you to shoot from a low or high angle. An OLED viewfinder is integrated into the camera. It offers 0.76× magnification and a 100% screen coverage.
The Lumix GH5 can shoot 4K videos and 1080p full HD videos at a smooth frame rate of 60 fps. Also, it can render pictures with a resolution of 5184×2920 dpi in the 16:9 aspect ratio. This camera is also well-equipped to capture 6K and 4K images in the burst mode at 30 frames and 60 frames per second, respectively.
The Panasonic Lumix GH5’s built-in WiFi and Bluetooth allow you to share images and videos as well as control the camera from a smartphone. Also, you can use the in-camera RAW image processing before you take the images for post-production. This camera runs on a single 1,860 mAh DMW-BLF19 battery. It has a magnesium-alloy construction and is completely sealed to resist impacts, extreme temperatures, and water splashes.

| Type of Microphone | Stereo, Wind Noise Canceller: OFF / Low / Standard / High / AUTO |
| ISO Range | Still image: Auto, Intelligent ISO 100 (Extended), 200, 400, 800, 1600, 3200, 6400, 12800, 25600 (Changeable to 1/3 EV step); Creative Video Mode: Auto, 100 (Extended), 200, 400, 800, 1600, 3200, 6400, 12800 (Changeable to 1/3 EV step) |
| USB Port | USB Type-C, Super Speed USB3.1 GEN1 |
| Speaker | Monaural |
| Total Pixels | 21.77 Megapixels |
| Battery Life | Approx. 410 images (rear monitor), 400 images (LVF), 1,000 images (Power Save LVF mode) with H-FS12060; Approx. 410 images (rear monitor), 390 images (LVF), 1,000 images (Power Save LVF mode) with H-HSA12035; Approx. 400 images (rear monitor), 380 images (LVF), 1,000 images (Power Save LVF mode) with H-ES12060 |
| Coverage | Approx. 100% |
| Image Stabilization | Camera: Image sensor shift type (5-axis / 5-stop*), Dual I.S. (Dual I.S. 2 compatible); Lens: Yes (POWER O.I.S.) |
| Frequency | 59.94Hz, 50.00Hz, 24.00Hz |
| Megapixels | 20.3 MP |
| Compatible Media | SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards) |
| Lens Min. Focus Distance | 0.66 ft (0.20 m) (at focal length 12 mm); 0.79 ft (0.24 m) (at focal length 60 mm) |
| Lens Filter Size | 2.44 inch (62mm) |
| Minimum Aperture | F22 |
| Lens Magnification Factor | Approx. 0.3x, 0.6x (35mm camera equivalent) |
| Elements / Groups | 14 / 12 |
| Angle of View (diagonal) | 84° (Wide) - 20° (Tele) |
| Maximum Aperture | F2.8 (Wide) - F4.0 (Tele) |
| Focus Type | Contrast AF system |
| Weight | Approx. 11.29 oz (320 g) (excluding lens cap, lens rear cap and lens hood) |
| Digital Zoom | 2x, 4x |
| Length | Approx. 3.39 inch (86 mm) (from the tip of the lens to the base side of the lens mount) |
| Weight | SD card, Battery, Body- Approx. 1.60 lb (725g); Body only- Approx. 1.42 lb (645g); SD card x 1, Battery, H-FS12060 lens included- Approx. 2.06 lb (935g) |
| Maximum Diameter | 2.69 inch (68.4 mm) |
| Dimensions | 5.45 x 3.86 x 3.44 inch (138.5 x 98.1 x 87.4 mm) (excluding protrusions) |
| Color | Black |
| Direct Print Capable | PictBridge compatible |
| Color Temperature | 2500-10000K in 100K |
| Exposure Compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| Image Sensor Size | 17.3 x 13.0 mm (in 4:3 aspect ratio) |
| Exposure Modes | Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Lens Mount | Micro Four Thirds mount |
| Camera Type | Digital Single Lens Mirrorless camera |
| Aspect Ratio | 4:3, 3:2, 16:9, 1:1 |
| Focal Length | 12-60 mm (35 mm camera equivalent10/01/2017 24-120mm) |
| Focus Modes | AFS (Single), AFF (Flexible), AFC (Continuous), MF |
| Metering Range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| AF Assist | Face, Eye Detection, Tracking, 225-Area, Custom Multi, 1-Area, Pinpoint (Full area touch is available) (Scalable AF frame size (by Joystick) and flexible AF position (by front/rear dial)) |
| Battery Type | Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (included) |
| Shutter Speeds | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60; Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60; Electronic shutter: 1/16,000 - 1; Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (When using Synchro Scan) |
| Remote Control | Remote control with Bulb function by DMW-RSL1 (sold separately) |
| Self Timer | 10sec; 3 images, 2sec, 10sec |
| Shutter Type | Focal-plane shutter |
| File Size | Still image:- {4:3- 5184 x 3888 (L), 3712 x 2784 (M), 2624 x 1968 (S), 4992 x 3744 (6K PHOTO), 3328 x 2496 (4K PHOTO); 3:2- 5184 x 3456 (L), 3712 x 2480 (M), 2624 x 1752 (S), 5184 x 3456 (6K PHOTO), 3504 x 2336 (4K PHOTO); 16:9- 5184 x 2920 (L), 3840 x 2160 (M), 1920 x 1080 (S), 3840 x 2160 (4K PHOTO); 1:1- 3888 x 3888 (L), 2784 x 2784 (M), 1968 x 1968 (S), 2880 x 2880 (4K PHOTO)}; Motion Size:- {AVCHD Progressive*2/ AVCHD*2-59.94Hz- <[Full HD] 1920 x 1080> 59.94p, 28Mbps (LongGOP) (Dolby), <[Full HD] 1920 x 1080> 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps), <[Full HD] 1920 x 1080> 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps), <[Full HD] 1920 x 1080> 23.98p, 24Mbps (LongGOP) (Dolby); AVCHD Progressive*2/ AVCHD*2-50.00Hz- <[Full HD] 1920 x 1080> 50.00p, 28Mbps (LongGOP) (Dolby), <[Full HD] 1920 x 1080> 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps), <[Full HD] 1920 x 1080> 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps)} |
| Image Formats | JPEG (DCF, Exif 2.31), RAW |
| Color Space | sRGB, AdobeRGB |
| Sensor Type | Live MOS Sensor |
| Flash Modes | Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off |
| Metering System | 1,728-zone multi-pattern sensing system |
| Playback Functions | 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, DPOF Print Set, RAW Processing, 6K/4K PHOTO Bulk Saving, 6K/4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture |
| Screen Size | Free-angle 3.2-inch (8.0 cm) |
| Display Type | TFT LCD monitor with static touch control |
| White Balance | AWB; AWBc; Daylight; Cloudy; Shade; Incandescent; Flash; White Set 1, 2, 3, 4; Colour temperature setting 1, 2, 3, 4 |
| Brand | Panasonic |
| Wi-Fi Support | IEEE 802.11a/b/g/n/ac * 5GHz Wi-Fi is not available in some countries. 1-11, 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165 ch |
| Bluetooth Support | Bluetooth v4.2 (Bluetooth Low Energy (BLE)) |
| Viewfinder Type | OLED Live View Finder (3,680k dots) |
