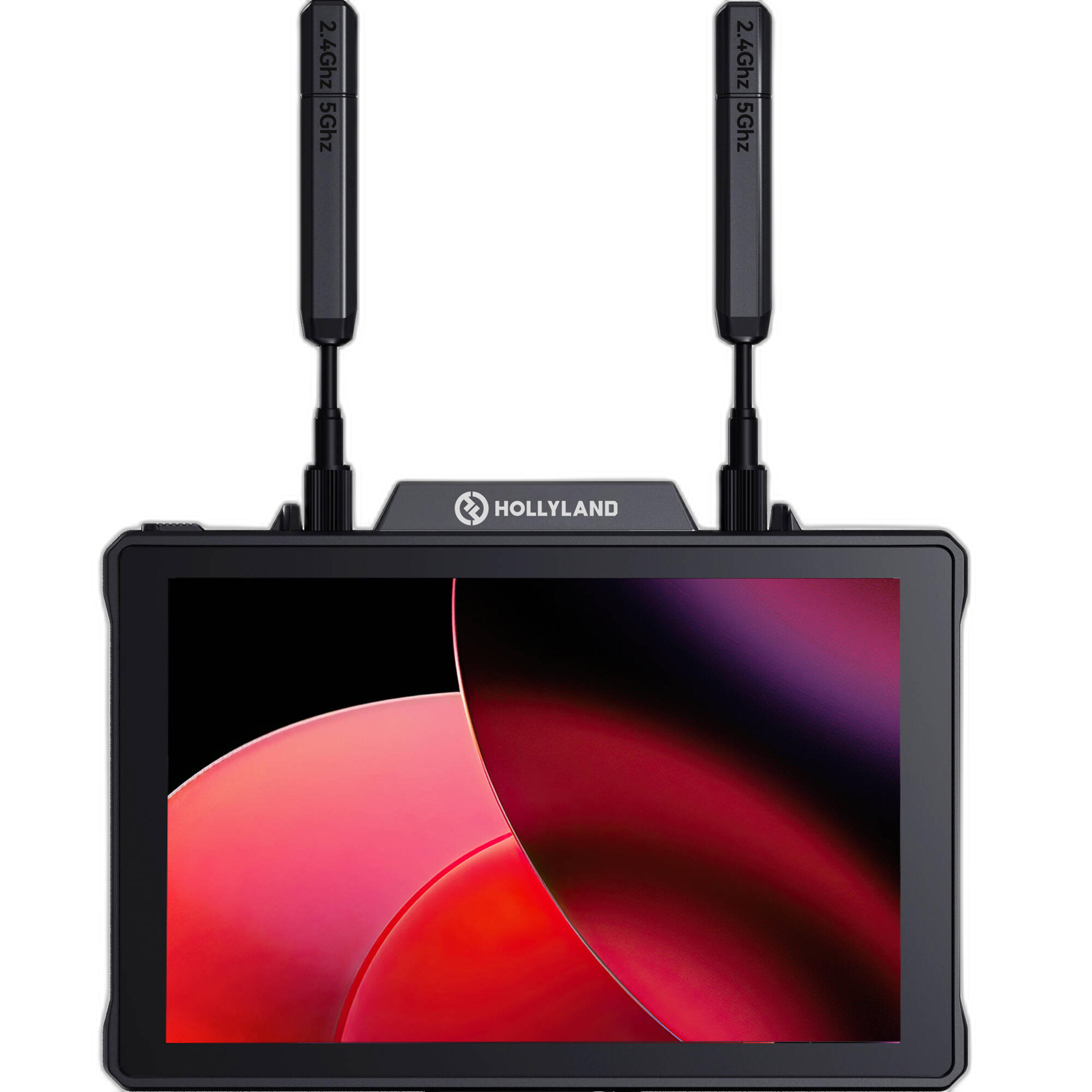

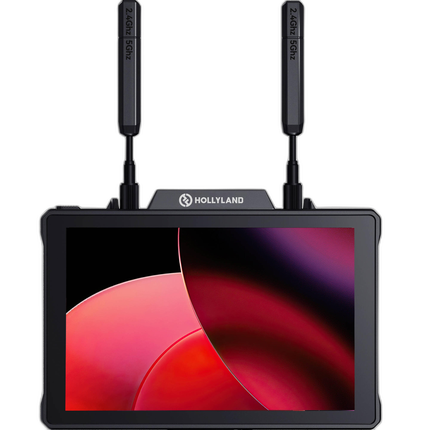

Hollyland Pyro 7in Wireless Transceiving Monitor

OVERVIEW

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

Key Features

Pyro 7 At A Glance

1TX & 4RX
Offers more flexibility when additional monitoring needs emerge on set.

1300ft (400m) &0.06s Latency
Ultra-long range wireless transmission capability.

2.4 GHz & 5 GHz Dual Band
Provides better signal transmission performance and efficiency.

Auto Frequency Hopping
Guarantees reliable and uninterrupted wireless video transmission.

TX, RX, and Monitor – All in One
One Device to Meet Your Diverse Needs

Dual-View Quick Monitoring Switch
Conveniently switch to the desired view.

7-Inch & 1200 nits
7-inch, better monitoring experience.?1200 nits, clear and visible even in outdoor or strong lighting conditions.

Precise Image Analysis
More precise and advanced image analysis features for you.

SDI & HDMI Loopout
Satisfies the diverse requirements of different user groups.

RTMP Streaming
Convenient for live streaming and video conferencing.

Wifi Broadcast Technology
4 Receivers. Not an Issue.
More Flexible.
Meet More Monitoring Needs.

Pyro 7's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Dual Boost

Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Dual Boosts.
Less Latency and More Stability.

Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).

Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.

ADH

Auto Dual-Band Hopping

With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

Dual Band

2.4 GHz & 5 GHz.

Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won't have to worry about video drop issues any more.

Intelligent

Auto Frequency Hopping

Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
