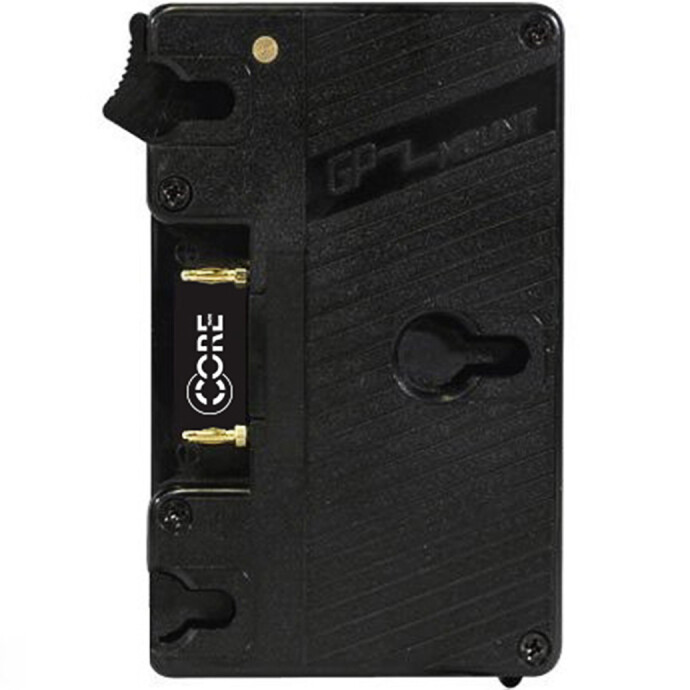

Core SWX GP-A-URSA Gold Mount Plate for Blackmagic URSA Cameras
Core SWX
- Product #:
- COR1186
- Manufacturer #:
- GP-A-URSA
- UPC:
- 184323002764
- Input: DC 11-17v
- Output for Camera: DC 11-17v, Unregulated Black Magic Camera Pin
- Output for Two P-Taps: DC 11-17v, Unregulated
- Size: 3.25″ x 5.5″ x 0.5″
- Weight: 0.4 lbs
- Compatible with Gold mount batteries
- Battery Adapter Type:
- Gold Mount
overview
The GP-A-URSA plate is outfitted with the specific BMD URSA 12 way Molex connector needed to power the camera as well as screw hardware for proper attachement. In addition, the URSA mount plates include two unregulated PowerTap ports to power 12v accessories. Because the right side powertap may be obstructed by BNC cables, we have included an additional tap on the top of the plate. The GP-A-URSA will work with all 3-Stud battery packs.
Product Reviews
There are no reviews for this product.
Specifications
| Brand | |
|---|---|
| Core SWX | |
| Battery/Charger Attributes | |
|---|---|
| Weight: | 0.4 lbs / 181 g |
| Dimensions: | 3.25 x 5.5 x 0.5" |
| Connector: | 1 x Black Magic Camera Pin | 2 x D-Tap |
| Power System | |
|---|---|
| AC Input: | 11 to 17 VDC |
| DC Output: | 11 to 17 VDC (D-Tap) |
| Brand | |
|---|---|
| Brand: | Core SWX |
| Battery Adapter Attributes | |
|---|---|
| Battery Adapter Type: | Gold Mount |
In The Box
- Core SWX GP-A-URSA Gold Mount Plate for Blackmagic URSA Cameras
