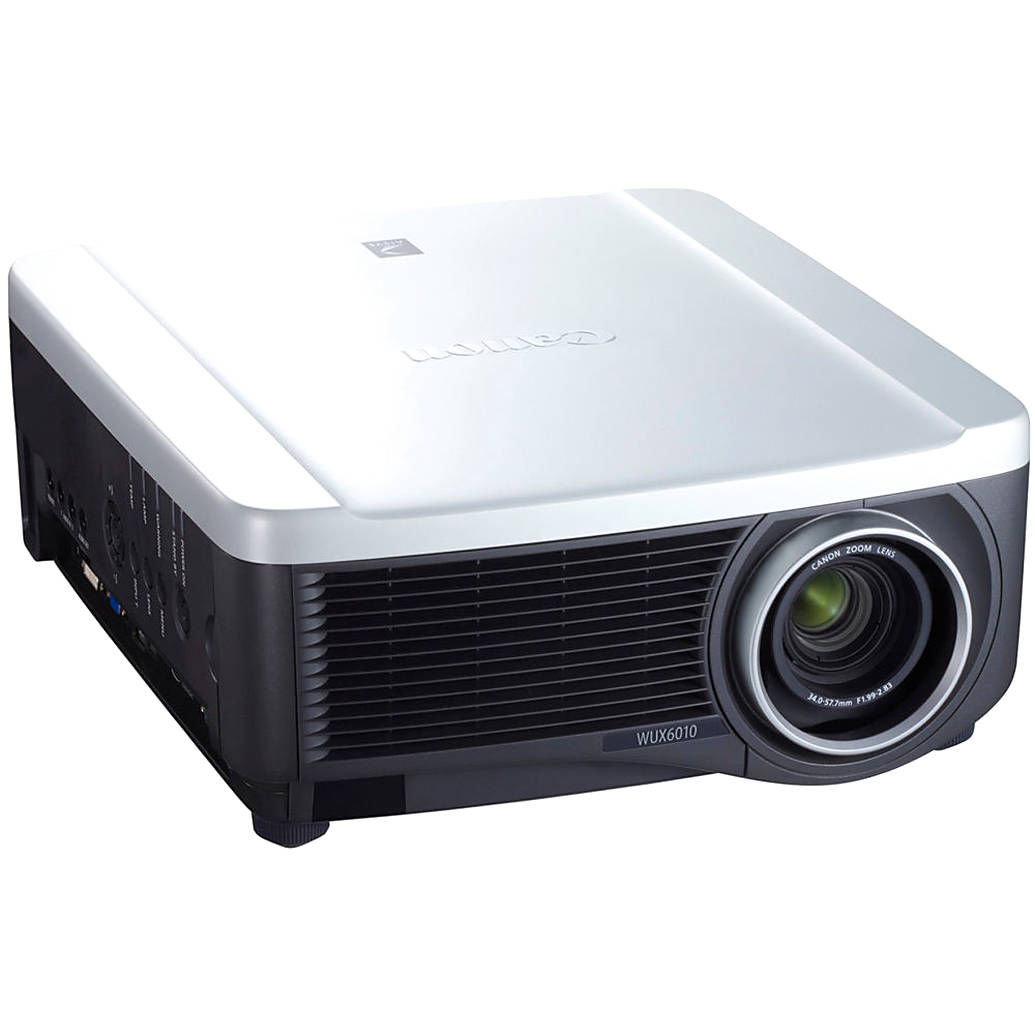

The Canon REALiS WUX6010 D RS-IL01ST Standard Lens Kit is a team of a Canon REALiS WUX6010 D DICOM Simulation Medical Imaging Projector and a 1.5× zoom lens. It delivers a maximum brightness of up to 6000 lumens and a dynamic contrast ratio of 2000:1. Use the DICOM mode to see simulated results of devices that are compliant with the Digital Imaging and Communications in the Medicine field. The native resolution of 1920×1200 ensures a clear view. The AISYS optical engine enhances the contrast to contribute to the LCOS technology. With the 4-point keystone correction, you can adjust each corner individually to project an accurate image on the screen. The HDBaseT connectivity allows transmission of control signals and pictures on a LAN network. You can output the signal from more than one device by using the network multi-projection. You may also link up to 12 projectors to broadcast a single image. The projector comes with different power management options for controlling the energy consumption by the projector. You can easily take out the lamp and filter from the project when it is mounted on the ceiling.

| Type of Outputs | 1 x 1/8" (3.5 mm) Mini Audio (Output) |
| Max. Power Consumption | Medium Brightness: 465 W; Low Brightness: 370 W; Standby Mode (Lamp Off): 2 W; Standby Mode (Lamp Off): 0.3 W |
| Type of Input Connector | 1 x DVI-I Video (Input); 1 x HDMI Audio/Video (Input); 1 x VGA (DE-15) Video (Input); 2 x 1/8" (3.5 mm) Mini Audio (Input); 1 x 1/8" (3.5 mm) Mini Remote (Input); 1 x RS-232C (Unspecified Connector) Control (Input); 1 x USB Type-A Female (Input); 1 x Ethernet (RJ45) LAN (Input); 1 x HDBaseT (RJ45) Audio/Video (Input) |
| Type of Input Connector | 120 to 240 VAC, 50 / 60 Hz |
| Focal Length | 23.0 to 34.5mm |
| Weight | 18.73 lb (8.50kg) |
| Dimensions | 14.9 x 6.6 x 16.9" (37.8 x 16.8 x 42.9cm) Including protrusions |
| Color | White |
| Scan Size | Horizontal: 27 - 75 kHz; Vertical: 24 - 60 Hz |
| Contrast Ratio | 2000:1 |
| Projector Brightness | 6000 Lumens; 4660 Lumens |
| Lens Type | 1.5x Power zoom |
| Lens Shift | Vertical: 15 to 55%; Horizontal: ±10% |
| Throw Ratio | 1.49 to 2.24:1 |
| Light Source | Lamp (1 x NSHA) |
| Screen Size | 40 to 600" (101.6 to 1524.0 cm) |
| Display Type | 3-Chip 0.7" LCoS |
| Other Resolutions | WUXGA; UXGA; WSXGA+; SXGA+; WXGA+; FWXGA; WXGA; SXGA; XGA; SVGA |
| Aspect Ratio | Native: 16:10 |
| Brand | Canon |
