Canon REALiS WUX5800Z RS-SL01ST Standard Lens Kit

Be the first to write a review

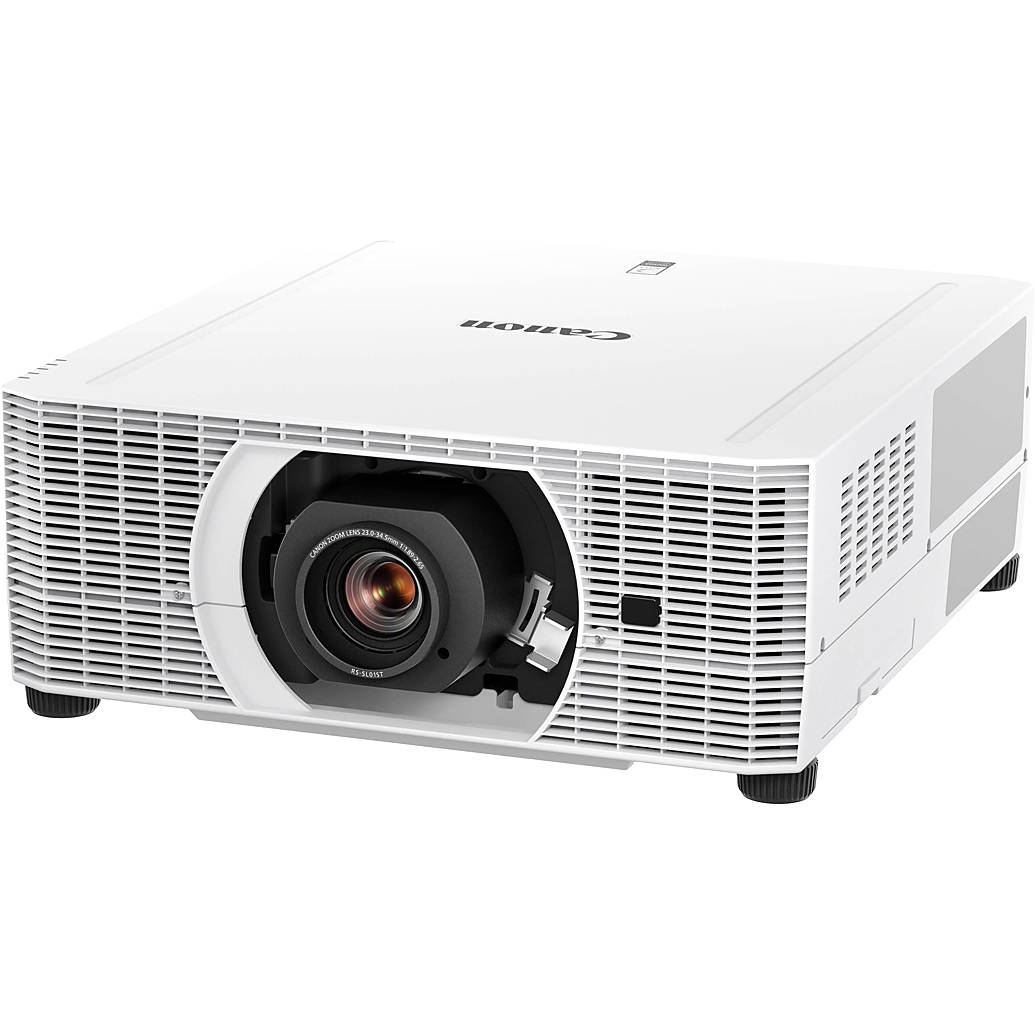

Canon REALiS WUX5800Z RS-SL01ST Standard Lens Kit
With 1.5× zoom lens
Maximum illumination of 5800 lumens
Dynamic contrast ratio of 2000:1
LCOS technology with AISYS enhancement
DICOM simulation mode
4-point keystone correction
Motion blur reduction
HDBaseT connectivity
Network Multi Projection
Power management settings
120 to 240 VAC power supply

Color:: White

Color:: The color of the item.

View All Attribute Definitions

Projector Display System:: 3-Chip 0.71" LCoS

Projector Display System:: This is the type of projection used by a projector. Common projection types are LCD, DLP, and CRT.

View All Attribute Definitions

Overview

The Canon REALiS WUX5800Z RS-SL01ST Standard Lens Kit delivers high-quality performance and adaptability in any institutional structure. The Canon REALiS WUX5800 D DICOM imaging projector provides a maximum brightness of up to 5800 lumens and a dynamic contrast ratio of 2000:1. Enable the DICOM mode to view simulated outputs of devices that are compliant with the Digital Imaging and Communications in Medicine. The projector has a native resolution of 1920×1200 to ensure a clear view. The AISYS optical engine improves the contrast to support the LCOS technology, which adds to the overall image quality. With the keystone correction, you can adjust the image corners to project an accurate image. The HDBaseT connectivity can be used to transmit control signals and pictures on a LAN. You may give output to the projector from more than one device using the network multi-projection. There are different power management options for controlling energy consumption. As for the 1.5× standard zoom lens, it gives an image throw of 1.49 to 2.24:1. You can shift the lens from 15 to 55% on the vertical axis and ±10% on the horizontal axis.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Canon

Detailed Specifications
Type of Outputs:	1 x 1/8" (3.5 mm) Mini Audio (Output)
Type of Outputs: The available outputs for video and audio on a camera. View All Attribute Definitions
Max. Power Consumption:	Full Brightness: 485 W; Standby Mode (Lamp Off): 1.6 W
Max. Power Consumption: Maximum power consumption that a scanner uses. View All Attribute Definitions
Type of Input Connector:	1 x DVI-I Video (Input); 1 x HDMI Audio/Video (Input); 1 x DisplayPort Audio/Video (Input); 1 x 1/8" (3.5 mm) Mini Audio (Input); 1 x USB Control (Input); 1 x HDBaseT (RJ45) LAN (Input); 1 x RS-232C (DE-9) Control (Input); 1 x 1/8" (3.5 mm) Mini Control/Service (Input); 1 x Component (DE-15) Video Input
Type of Input Connector: This is the type of input connector. View All Attribute Definitions

Physical Specifications
Dimensions:	19.0 x 7.7 x 21.4" (48.3 x 19.6 x 54.4cm)
Dimensions: The measurements of an object. View All Attribute Definitions
Weight:	37.4 lb (16.96kg)
Weight: The physical weight of the item without packaging. View All Attribute Definitions
Color:	White
Color: The color of the item. View All Attribute Definitions

Power System
Power Input:	100 to 240 VAC, 50 / 60 Hz

Brand
Brand:	Canon

Detailed Specs
Other Resolutions:	WUXGA; UXGA; WSXGA+; SXGA+; WXGA+; FWXGA; WXGA; SXGA; XGA; SVGA; VGA

Lens
Focal Length:	23.0 to 34.5mm
Focal Length: The distance between the film and the optical center of the lens when the lens is focused on infinity. View All Attribute Definitions

Scanner Data
Scan Size:	Horizontal: 15.625 - 75 kHz; Vertical: 24 - 60 Hz
Scan Size: The size an image is scanned. View All Attribute Definitions

Image Display
Projector Light Source:	Laser Phosphor
Projector Light Source: This is the type of light source used in projecting an image. View All Attribute Definitions
Projector Display System:	3-Chip 0.71" LCoS
Projector Display System: This is the type of projection used by a projector. Common projection types are LCD, DLP, and CRT. View All Attribute Definitions
Contrast Ratio:	4000:1
Contrast Ratio: Measure of a display system. View All Attribute Definitions
Projector Image Size:	40 to 600" (1.0 to 15.2m)
Projector Image Size: This is the maximum size a projector is recommended to display. View All Attribute Definitions
Projector Brightness:	5800 Lumens
Projector Brightness: This is the maximum brightness for a projector usually measured in Lumens. 2000 Lumens is considered good for small and portable projectors while 4500 Lumens is considered super bright and practical for large venues. View All Attribute Definitions

Lens Specification
Throw Ratio:	1.49-2.24:1
Throw Ratio: Throw Ratio View All Attribute Definitions
Lens Shift:	Vertical: -15 to 55%; Horizontal: ±10%
Lens Shift: Allows the lens to move. View All Attribute Definitions
Optical Zoom:	1.5x
Optical Zoom: Optical Zoom View All Attribute Definitions
