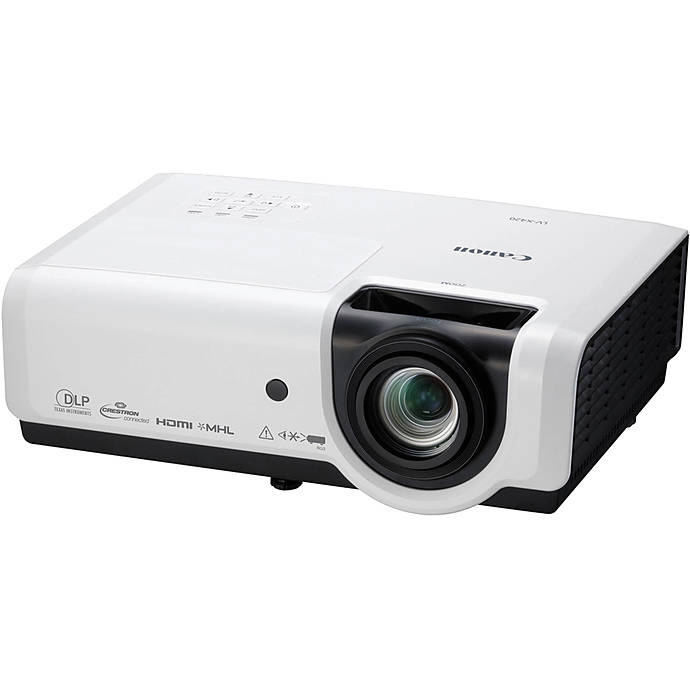

Canon LV-HD420 Projector
- Canon LV-HD420 Projector
- With LV-RC11 IR Remote control
- Maximum brightness of 4200 lumens
- Contrast ratio of 8000:1
- DLP technology
- Native resolution of 1920×1080
- DLP-Link system
- 3D-ready
- PJLink, Crestron, and e-Control Network Management compatibility
- Power management settings
- Built-In 10W speaker
- 100 to 240 VAC power supply
The Canon LV-HD420 Projector will find its place it an education institute or business with ease. Its projection lens allows you to adjust the throw distance from 1.2 to 10 m. You may also shift the lens in ±65%. The lens can project images for screen sizes of 30 to 320 inches. With the maximum brightness of 4200 lumens, the projected imagery can be seen easily in ambient lighting. The high contrast ratio of 8000:1 also adds to the visibility. This Canon projector is made with DLP technology and provides a native resolution of 1920×1080. Various image modes can be used to decide the look of the projected image. Thanks to the DLP-Link system, the projector can cast 3D content. The projector has different connectivity options for HDMI, HDMI with MHL, RCA video, RCA audio, and more. You may include the LV-HD420 in your business' network via the Ethernet connectivity. The projector has a built-in 10W speaker that is ideal for small conference rooms.

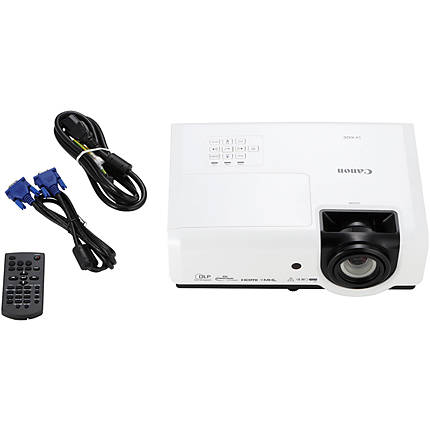

In the Box
- Canon LV-HD420 Projector
- LV-RC11 Wireless IR Remote Control for LV-HD420 & LV-X420 Projectors
- CR2025 Battery
- 5.9' VGA Cable
- 5.9' Power Cord
Brand
lens specification
| Lens Shift | Horizontal: ± 65% |
| Focus Type | Manual |
| Optical Zoom | Manual: 1.5x |
| Throw Ratio | 1.39 - 2.09:1 |
| Digital Zoom | 2x |
detailed specifications

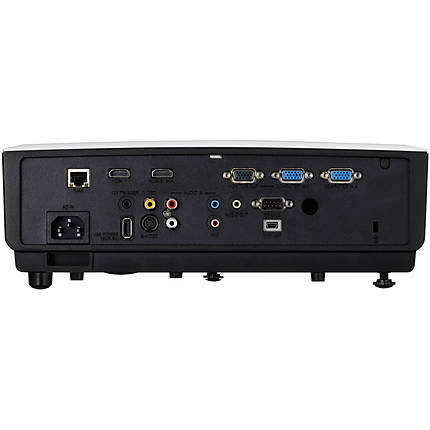

| Type of Input Connector | 1 x HDMI Audio/Video (Input); 1 x HDMI with MHL Support Audio/Video (Input); 2 x VGA (DE-15) Video (Input); 1 x S-Video (4-Pin DIN) Video (Input); 1 x Composite (RCA) Video (Input); 1 x RCA Stereo (L/R) Audio (Input); 1 x 1/8" (3.5 mm) Mini Audio (Input); 1 x 1/8" (3.5 mm) Mini Microphone (Input); 1 x RS-232C (Unspecified Connector) Control (Input); 1 x USB Service (Input); 1 x Ethernet (RJ45) LAN (Input/Output) |
| Type of Input Connector | 100 to 240 VAC, 50 / 60 Hz |
| Max. Power Consumption | Full Brightness: 410 W; Low Brightness: 320 W; Standby Mode (Lamp Off): 2.0 W |
| Type of Outputs | 1 x VGA (DE-15) Video (Output); 1 x 1/8" (3.5 mm) Mini Audio (Output); 1 x Ethernet (RJ45) LAN (Input/Output); 1 x 12 V Trigger Type-A Female (Output); 1 x USB Power (Output) |
| Language Support | Czech; Dutch; English; French; German; Italian; Japanese; Korean; Polish; Russian; Simplified Chinese; Spanish; Swedish; Thai; Traditional Chinese; Turkish; Vietnamese |
image display
| Projector Display System | 0.65" DMD DLP |
| Projector Lens | f/2.42 - 2.97 (f = 20.7 - 31.1 mm) |
| Projector Light Source | Lamp (1 x SHP) |
| Projector Brightness | 4200 Lumens |
physical specifications
| Weight | 7.5 lb (3.4kg) |
| Dimensions | 12.4 x 4.4 x 9.1" (314.0 x 112.0 x 231.0mm) |
| Color | White |
scanner data
| Scan Size | Vertical: 24 - 120 Hz; Horizontal: 15.625 - 101.6 kHz |
detailed specs
| Other Resolutions | Maximum: WUXGA - 1920 x 1200 |
camera attributes
| Aspect Ratio | Native: 16:9; Supported: 2.35:1; Supported: 4:3 |
brand
| Brand | Canon |
