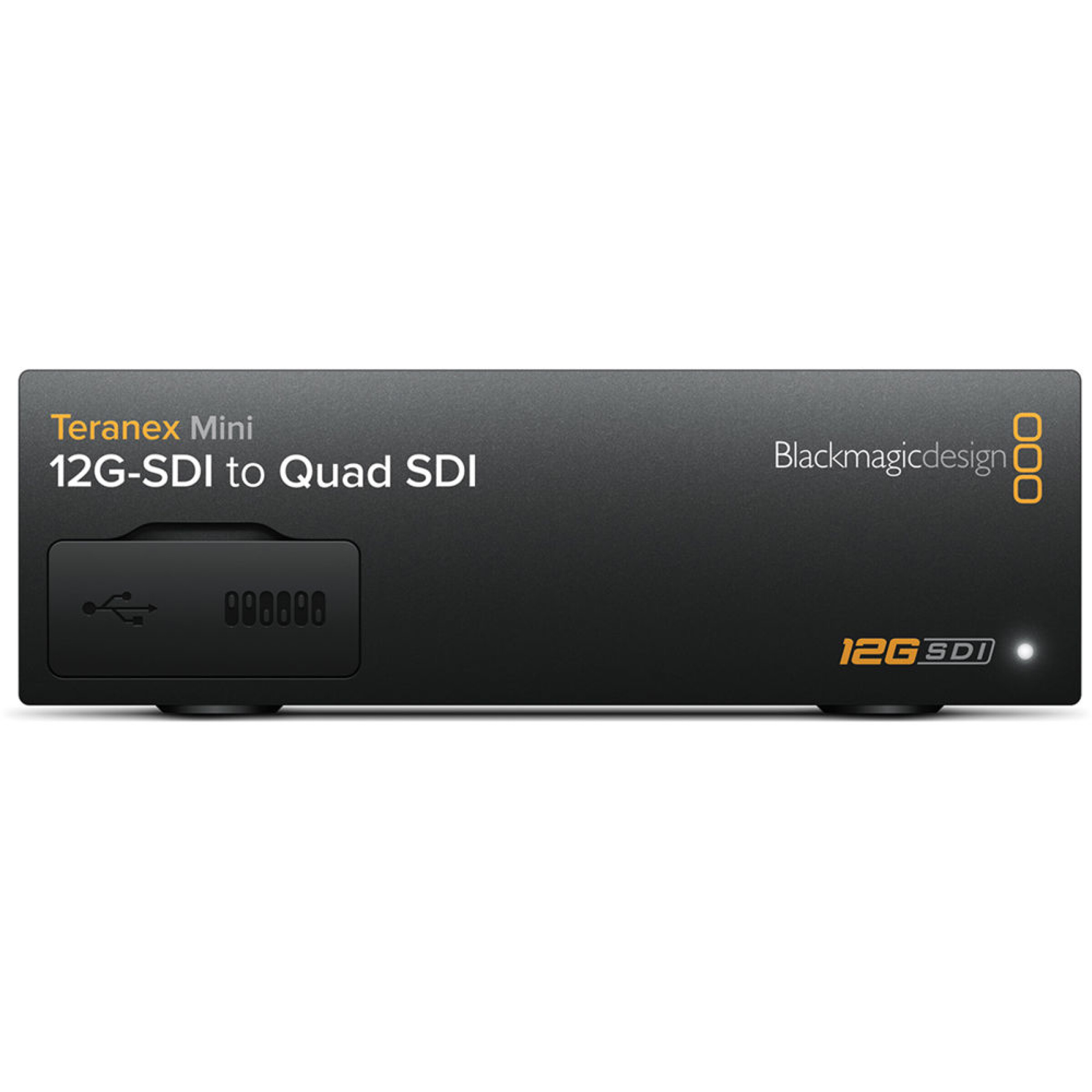

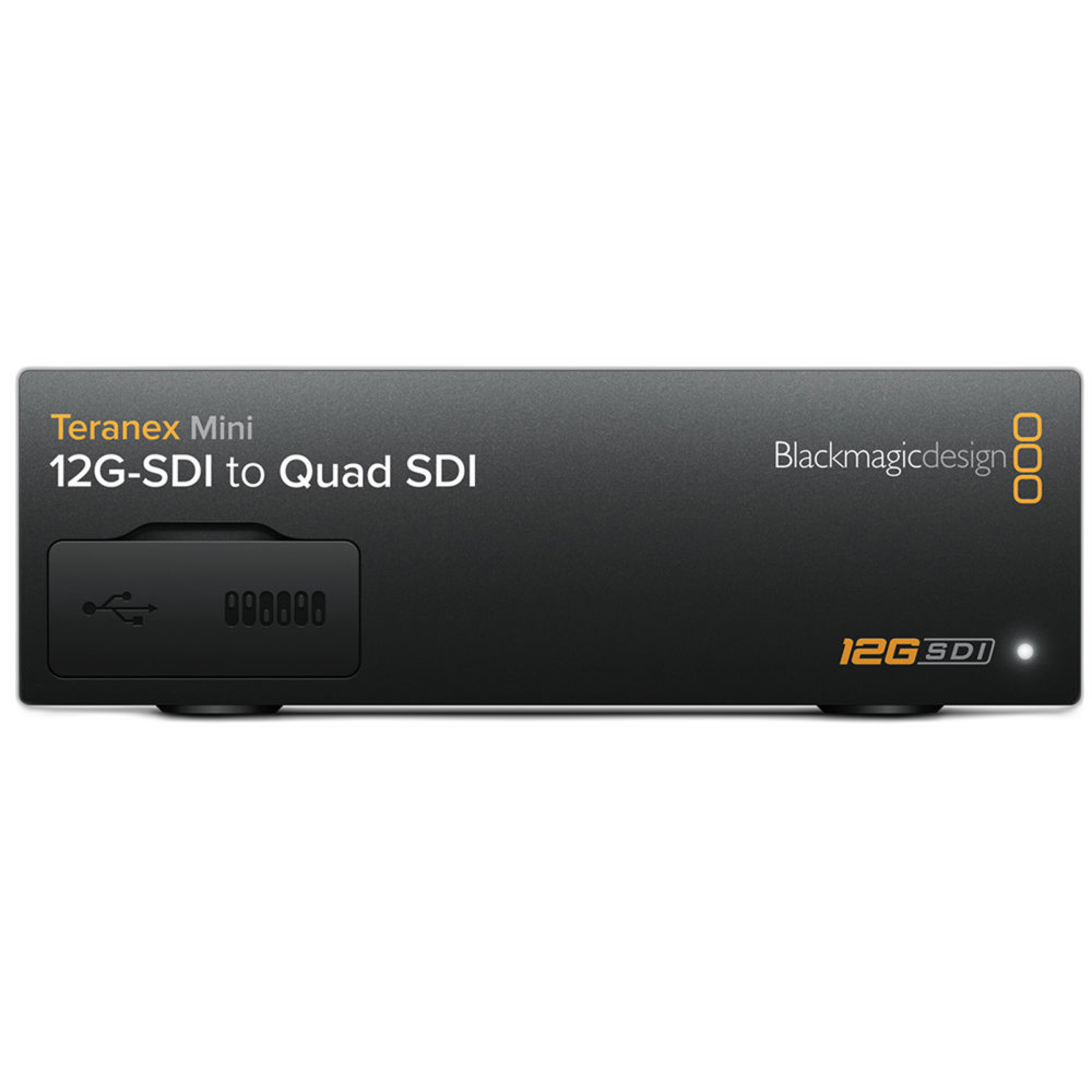

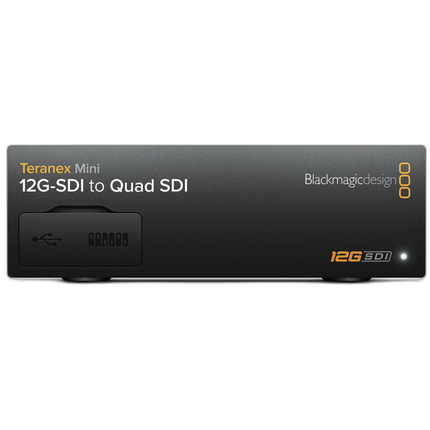

Blackmagic Teranex Mini - 12G-SDI to Quad SDI
Product # BLM4052MFR #CONVNTRM/DB/SDIQDASIN: B01B6NPTNW
0.0(0) reviews
Usually Ships in 7-14 days.
$605.00
1210 U-REWARDS
- Supports SD, HD, UHD 4K & DCI 4K Signals
- 1x 12G-SDI Input, 12G-SDI Loop Output
- 4x 3G-SDI Outputs
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
Usually Ships in 7-14 days.
$605.00
1210 U-REWARDS
Have any questions?1-800-631-0300
OVERVIEW
Distribute a high-resoution 12G-SDI source to Quad-Link SDI equipment with the Teranex Mini 12G-SDI to Quad SDI Converter from Blackmagic Design. Housed in a low-profile enclosure, this Teranex Mini Converter seamlessly fits in studio and post-production workflows or anywhere with multiple displays or a video wall design. The unit features one 12G-SDI input, one 12G-SDI loop output, and four 3G-SDI distribution outputs that support multirate auto-switching between DCI 4K, UHD 4K, HD, and SD sources and destinations. The unit also supports up to 16 channels of broadcast-quality 24-bit, 48 kHz audio.
In the Box
- Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
- SD Card with Configuration Software
Brand
physical specifications
| Dimensions | 6.69" x 5.51" x 1.75" |
a/v details
| Video Connectors | Outputs:<br> 4x BNC (3G-SDI) Female<br>1x BNC (12G-SDI) Female</br> |
| Other I/O | 1x RJ45 LAN, PoE Input/Output<br>1x USB-A Firmware Input</br> |
| Power Connectors | 1x IEC C14 Input |
brand
| Brand | Blackmagic |
wireless transmitter specifications
| Video Format (SDI/BNC) | <b>SDI (4:4:4/4:2:2 RGB, YUV)</b><br>DCI 4K at 23.98/24/25 fps<br>UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps<br>DCI 2K 23.98/24/25 fps<br>DCI 2KPsF 23.98/24/25 fps<br>1080p 23.98/24/25/29.97/30/50/59.94/60 fps<br>1080PsF 23.98/24/25 fps<br>1080i 50/59.94/60 fps<br>720p 50/59.94/60 fps<br>576i / 625 lines 50 fps<br>480i / 525 lines 59.94 fps</br> |
production switcher
| Total Video Inputs | 1x BNC Female |
