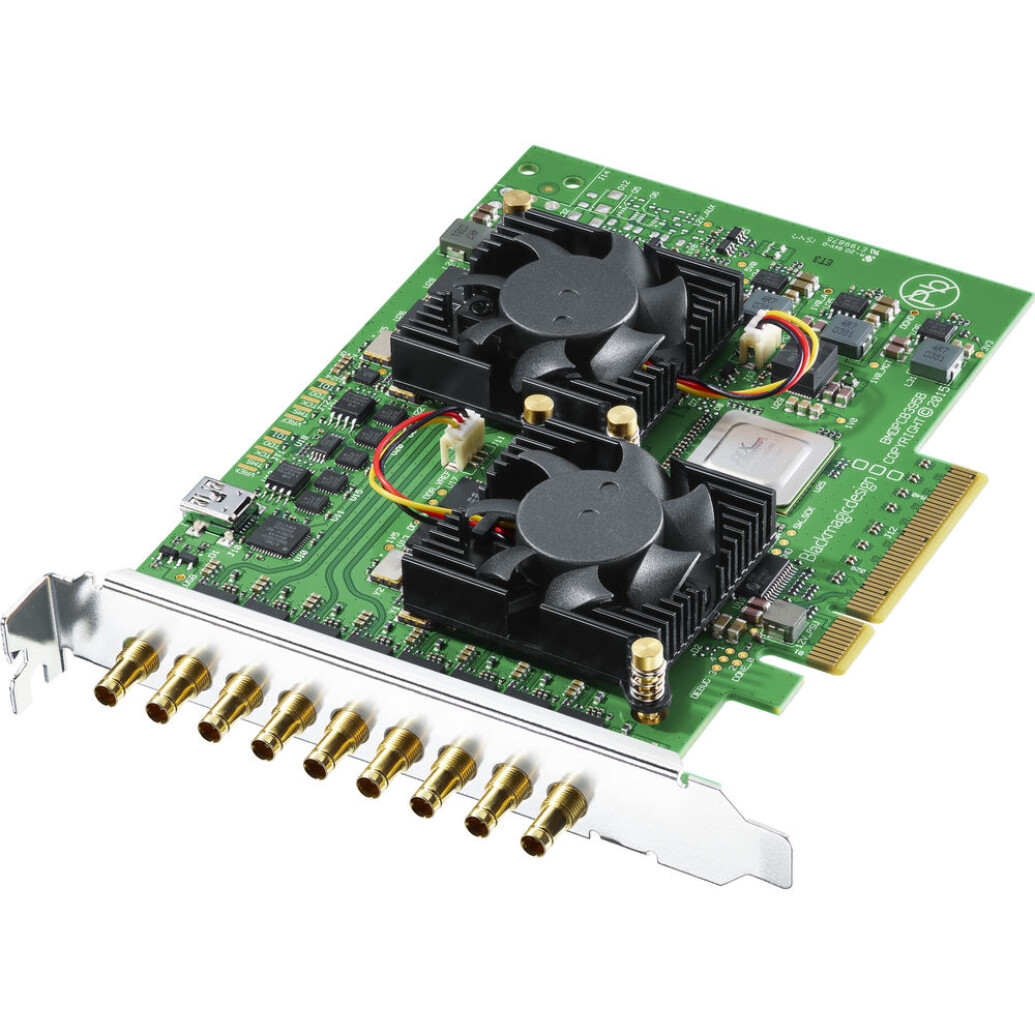

Blackmagic DeckLink Quad 2

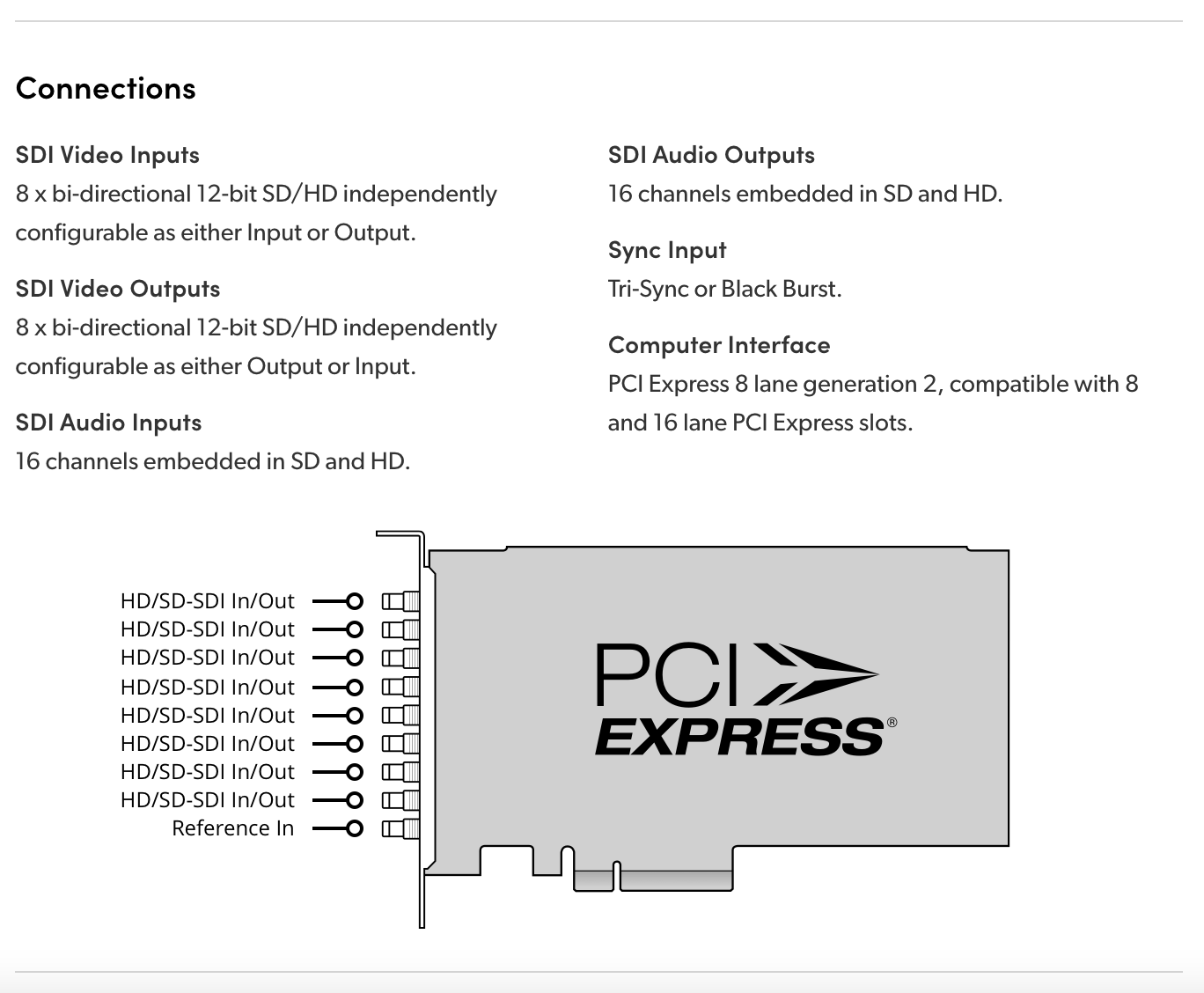

- 8 x Bidirectional SD/HD/3G-SDI
- 8-Lane PCIe Interface
- Resolutions up to 1080p60
- Micro-BNC/Mini DIN Connectors
- Inputs/Outputs Independently Switchable
- Supports Uncompressed RGB 4:4:4 Signals
- Supports 16 Channels of Embedded Audio

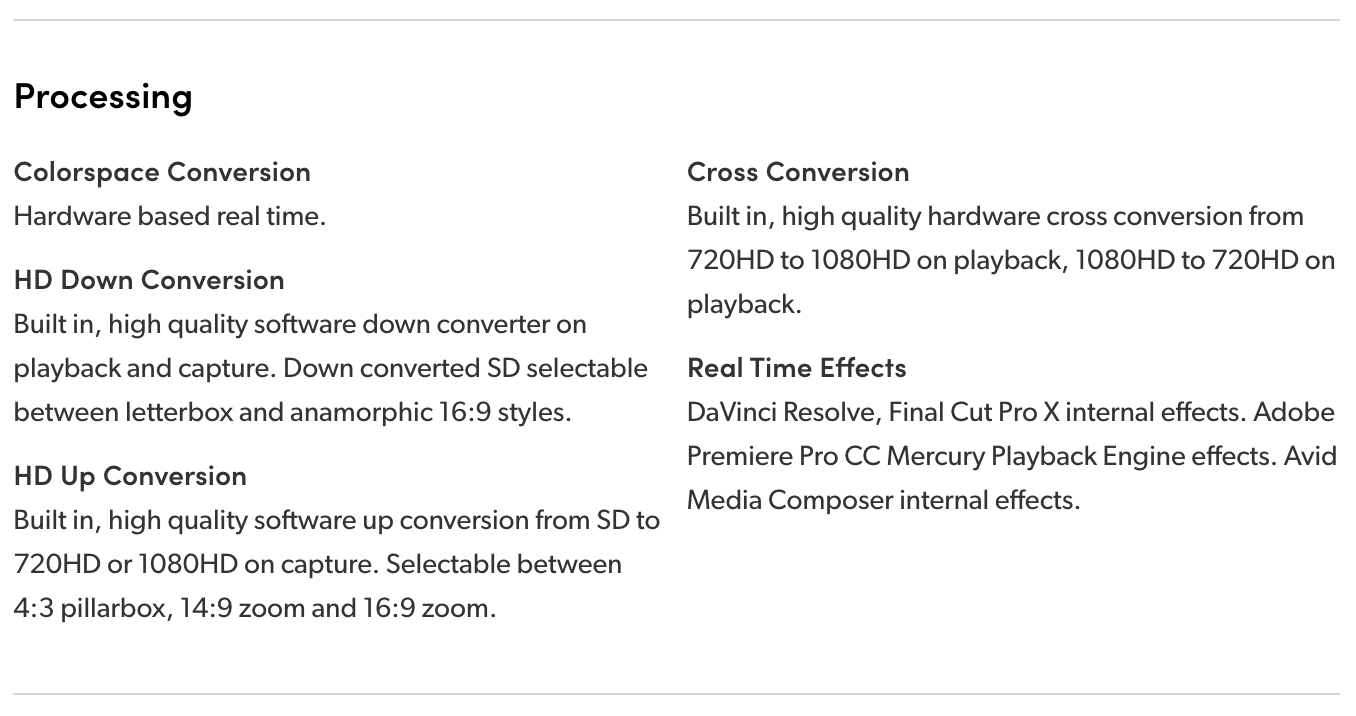

- Reference In, Up/Down/Cross Conversions
- Media Express Application Included

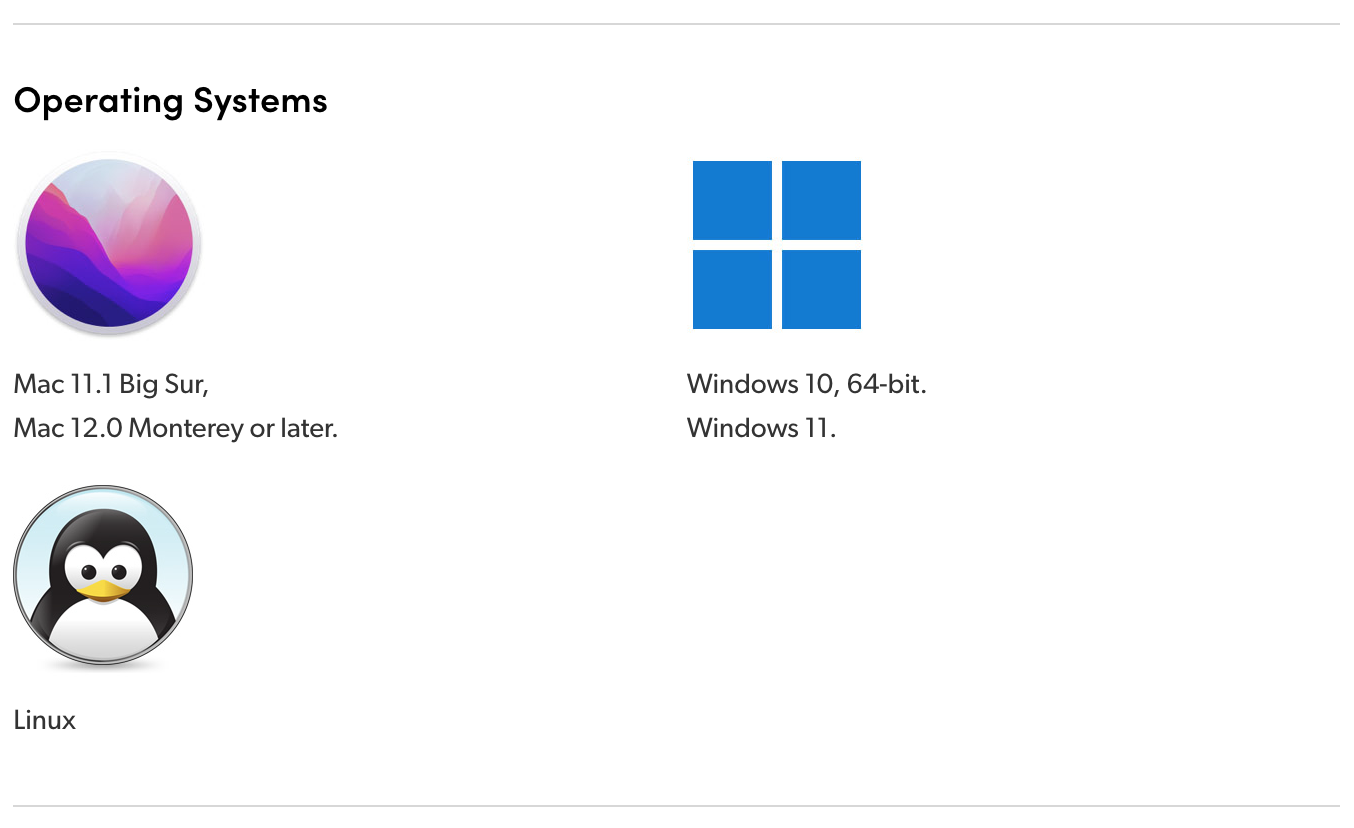

- macOS, Windows, and Linux Compatible
OVERVIEW
Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment. DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.

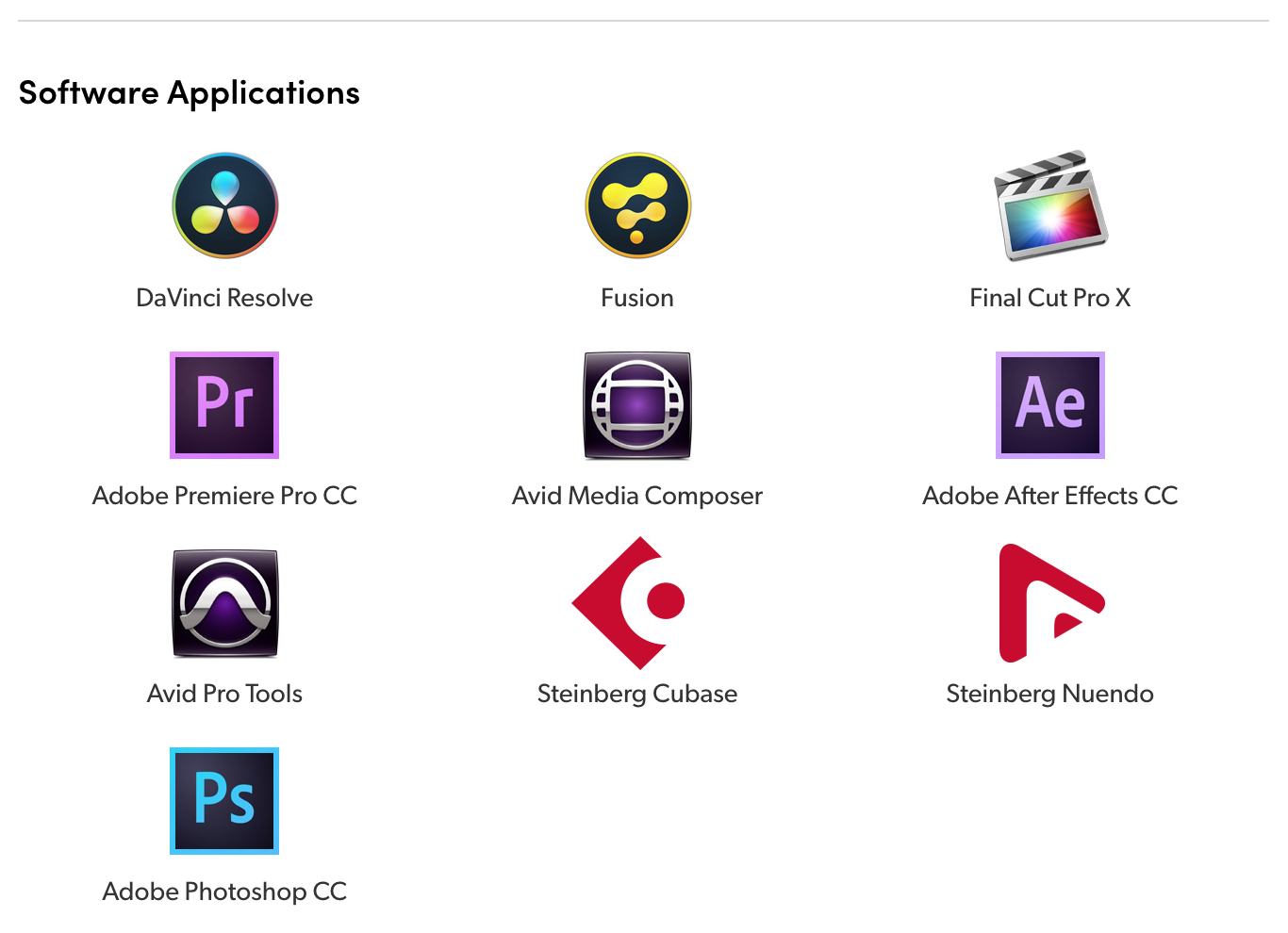

Main Supported Applications:
- Davinci Resolve
- Fusion
- Final Cut Pro X
- Premiere Pro CC
- Avid Media Composer
- After Effects CC
- Avid Pro Tools
- Steinberg Cubase
- Steinberg Nuendo
- Photoshop CC
- Other supported applications include:Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
Other supported applications include: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom. These are third party applications and support may vary, check with your software vendor.
In the Box
- Blackmagic DeckLink Quad 2
- 3 Year Limited Manufacturer's Warranty
Brand
brand
| Brand | Blackmagic |
microphone specifications
| Sample Rate | 4:2:2, 4:4:4 |
