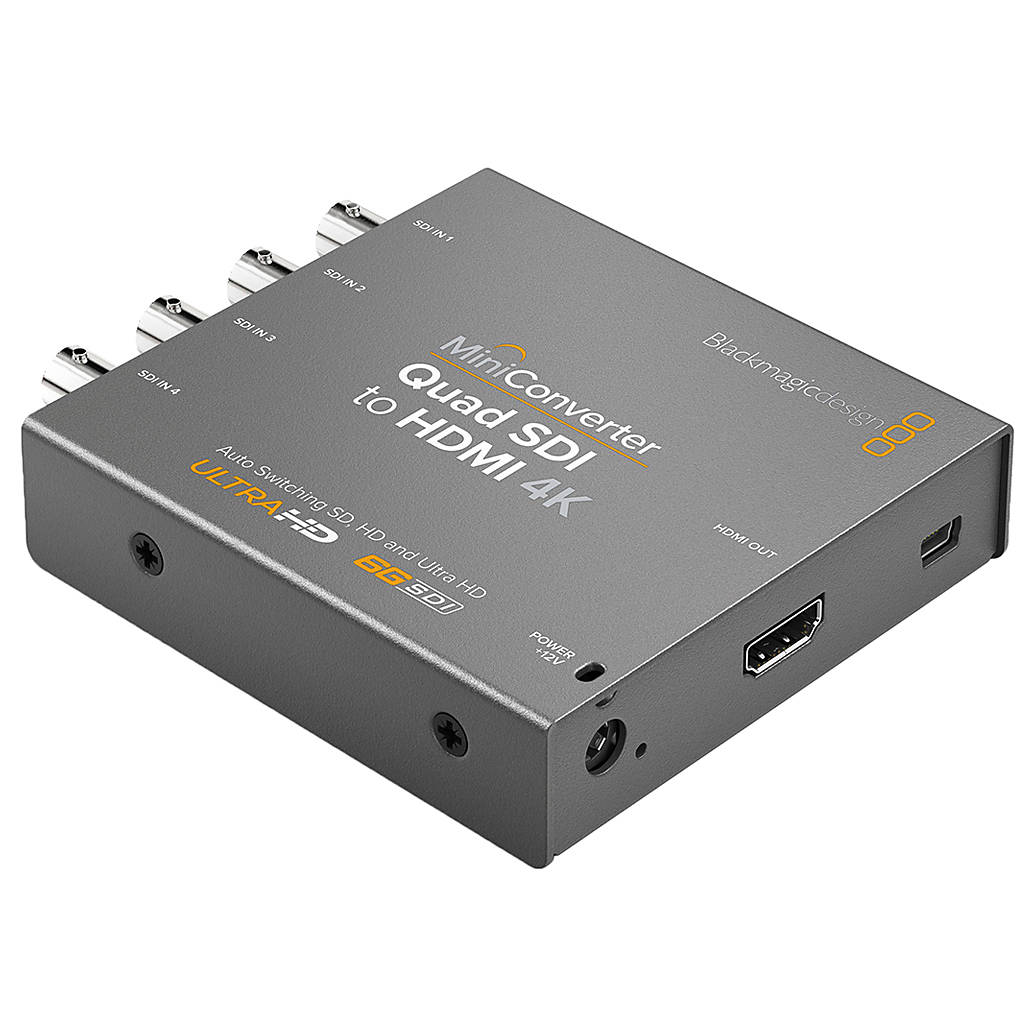

Blackmagic Design Mini Converter - Quad SDI to HDMI 4K 2
- Blackmagic Design Mini Converter Quad SDI to HDMI 4K 2
- For Windows and Mac OS
- Four BNC connectors
- Automatic input signal detection
- 6G-SDI, dual-link 3G-SDI, & quad-link HD-SDI support
- 4K HDMI output
- 4:2:2 and 4:4:4 color sampling and accuracy
- 24-bit audio sampling
- Dip switches
- USB 2.0 port
- 12V power supply
- International socket adapters included
The Blackmagic Design Mini Converter Quad SDI to HDMI 4K 2 transforms a single link 6G-SDI, dual-link 3G-SDI, or quad link HD-SDI into a single 4K HDMI output. It can be used for connecting professional SDI equipment with consumer HDMI television and projectors that support 4K resolution. The converter has four BNC connectors, of which the first input automatically detects the type of signal. Similarly, the output connector recognizes whether the output source is an HDTV or HD monitor to down-convert the signal accordingly. Use the built-in DIP switches to control the converter or connect it your Windows or Mac OS system via USB to control it through the included software. You may also update the firmware of the converter via the USB port. The included 12 V power supply cable with international adapters allows you to use the converter anywhere around the world.
In the Box
- Mini Converter Quad SDI to HDMI 4K
- 12V universal power supply with international socket adapters
Brand
physical specifications
| Weight | 257g |
| Dimensions | (W x H X L): 92.27 x 23 x 110 mm |
| Color | Black |
detailed specs
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
hardware & software data
| Operating Systems & Requirements | Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later, Windows 7 or Windows 8 |
detailed specifications
| Max. Power Consumption | 5.2 Watts |
brand
| Brand | Blackmagic |
