Atomos Shinobi SDI 5 3G-SDI and 4K HDMI Pro Monitor
Product # AVR048MFR #ATOMSHBS01ASIN: B07Q3Y4Q7G
0.0(0) reviews
Discontinued
$299.00
598 U-REWARDS
Sorry, this item is currently unavailable

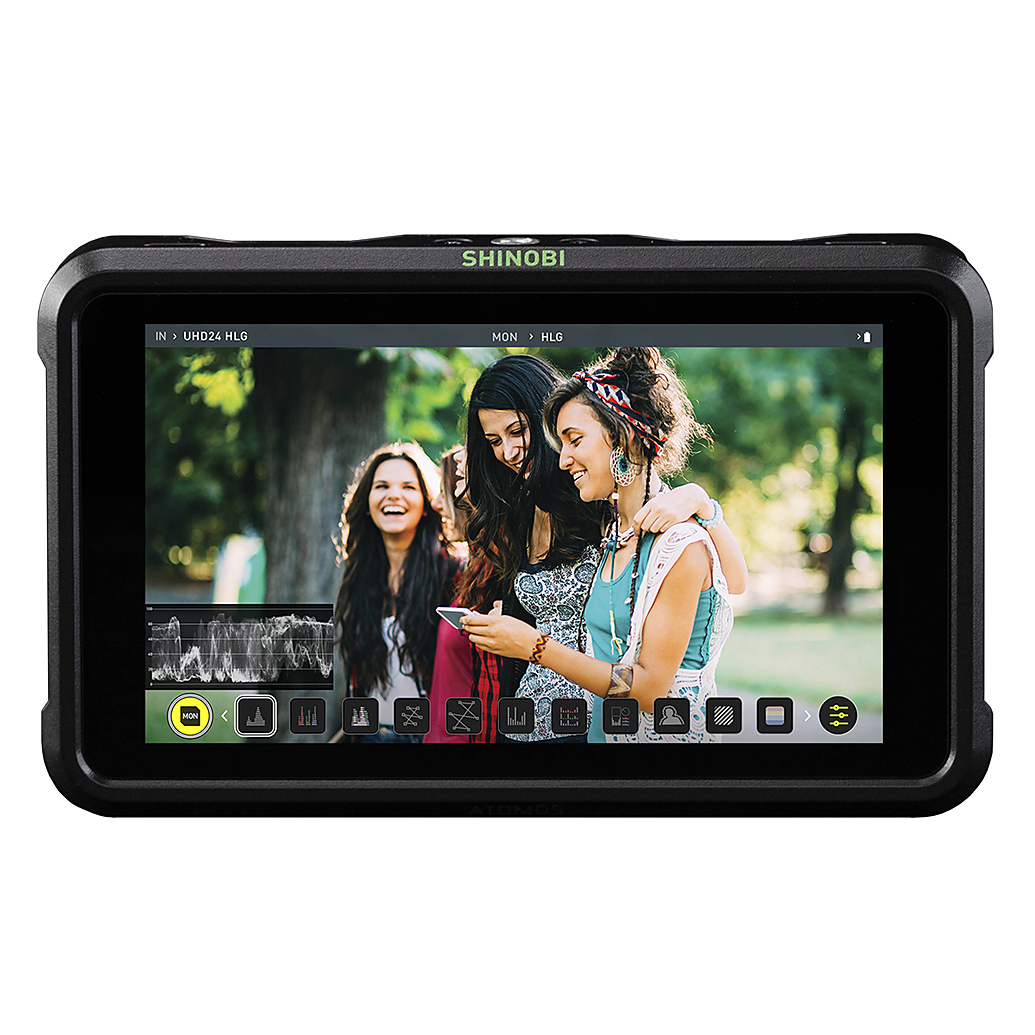

- Atomos Shinobi SDI 3G & 4K HDMI Pro Monitor
- Display: 5.2" (1920 x 1080) Touchscreen
- Features 3G-SDI & 4K HDMI Inputs
- DCI/UHD 4K & HD-SDI Capabilities
- Lightweight Design (Approx.7.97 oz./.5 lbs)
- 10 Stops of Dynamic Range (AtomHDR)
- Uses AtomOS 10 Platform
- Viewable In Daylight
- Brightness: 1000 cd/m2
Discontinued
$299.00
598 U-REWARDS
Sorry, this item is currently unavailable
Have any questions?1-800-631-0300
Overview
The Atomos Shinobi SDI is a lightweight HDR field monitor for the video professional who needs the flexibility of both HDMI and SDI camera connectivity, or the vlogger wanting to take their production to the next level. Connect 4K HDMI for HDR viewing or SDI for HD-SDI loop out. Run cables between Shinobi SDIs up to 100m (328ft) without degradation of image allowing directors, crew and clients to see what the camera operator is seeing in stunning detail. Shinobi SDI's high brightness 1000nit 5-inch monitor lets crew members preview and see images exactly as intended in any lighting condition, in SDR or HDR. Shinobi SDI is the ultimate monitoring tool in your video production arsenal that won’t break the bank.
In the Box
- Atomos Shinobi SDI 5" 3G-SDI & 4K HDMI Pro Monitor
- AC Power Supply
Brand
monitor specifications
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Screen Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| Bit-Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 427 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI Type A (HDMI 1.4) Input |
| Video I/O | 1 x BNC (3G-SDI) Input |
| Embedded Audio | HDMI: 2-Channel |
| Embedded Audio | SDI: 8-Channel |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel Input |
| Card Slot | 1 x SD |
| SDI (8/10-Bit 4:2:2) Video Format | 1080p: 59.94/50/29.97/25/24/23.98 |
| SDI (8/10-Bit 4:2:2) Video Format | DCI 2K: 59.94/50/29.97/25/24/23.98 |
| SDI (8/10-Bit 4:2:2) Video Format | 720p: 59.94/50 |
| SDI (8/10-Bit 4:2:2) Video Format | 1080i: 59.94/50 |
| DC Input Power | 6.2 to 16.8 VDC |
| Power Consumption | 7 W (Maximum) |
| Power Consumption | 4 W (Typical) |
| Mounting | 2 x 1/4"-20 Female |
| Operating Temperature | 104°F / 40°C (Recommended) |
| Material of Construction | Polycarbonate |
| Audio | 1 x 3.5 mm Headphone Output |
| HDMI (8/10-Bit 4:2:2) | 1080p: 59.94/50/29.97/25/24/23.98 |
| HDMI (8/10-Bit 4:2:2) | 1080i: 59.94/50 |
| HDMI (8/10-Bit 4:2:2) | UHD 4K: 29.97/25/24/23.98 |
| HDMI (8/10-Bit 4:2:2) | 720p: 59.94/50 |
| HDMI (8/10-Bit 4:2:2) | DCI 4K: 29.97/25/24/23.98 |
physical specifications
| Weight | 7.97 oz / 226 g |
| Dimensions | 5.94 x 3.6 x 1.24" / 151 x 91.5 x 31.5 mm |
power system
| Battery Type | 1 x L-Series |
camera attributes
| Aspect Ratio | 16:9 |
brand
| Brand | Atomos |
