overview

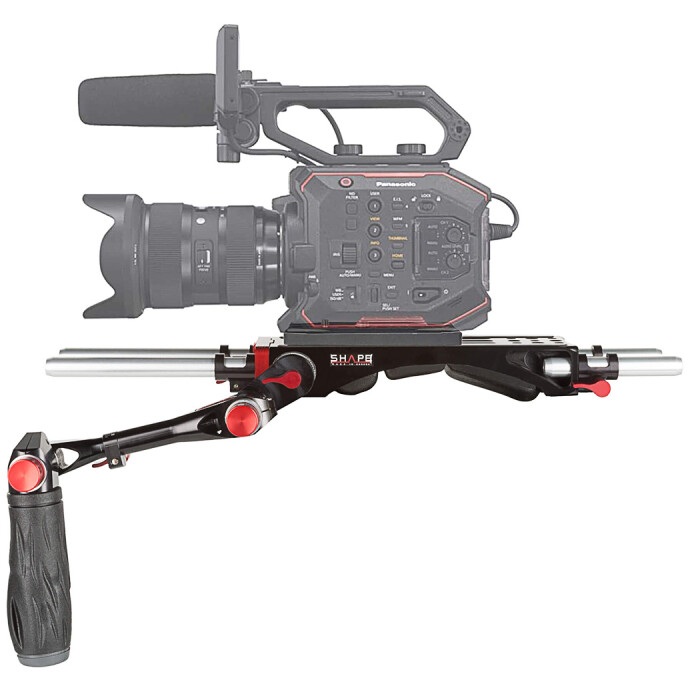

The SHAPE Bundle Rig for Panasonic AU-EVA1 is a camera support system designed for the AU-EVA1 and suitable for handheld or shoulder-mounted shooting. It includes the BP0008 V-Lock Quick Release Baseplate with 8" and 4" 15 mm rod pairs, the V-Lock Replacement Pad, and the HAND3 Telescopic Handle for ARRI rosette.

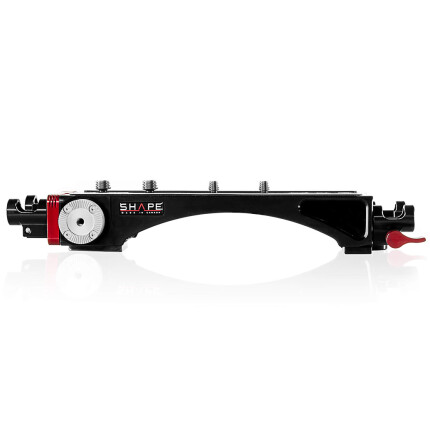

8000 v-lock quick release baseplate

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8" and 4" 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included.

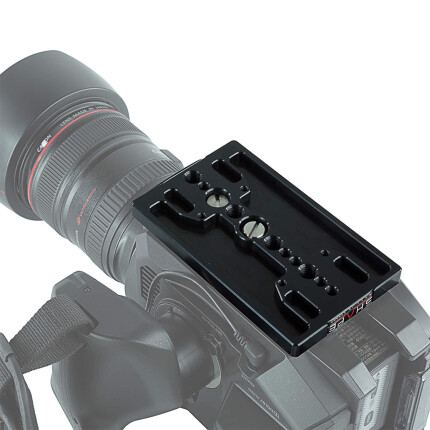

Panasonic Au-Eva1 adapter plate

The AU-EVA1 Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Panasonic AU-EVA1 camera base.

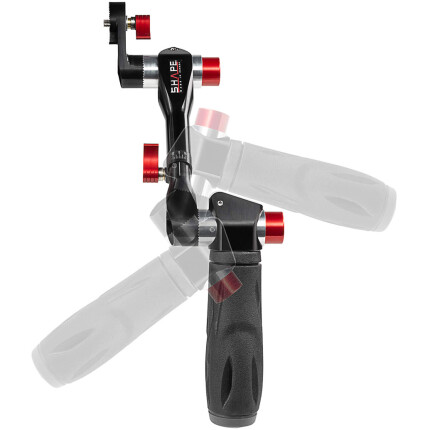

Single telescopic handle Arri rosette left side

Left telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

15 mm 4" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm 8" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

Product Reviews

In The Box

• SHAPE BP0008 V-Lock Quick Release Baseplate
• 15mm LWS Rod Adapter
• SHAPE 15mm Aluminum Rods (Pair, 8")
• SHAPE 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Camera Mount Screws
• 2 x 3/8"-16 Camera Mount Screws
• Allen Key
• SHAPE Adapter Plate for Panasonic AU-EVA1 Camera

• SHAPE Telescopic Handle for ARRI Rosette
