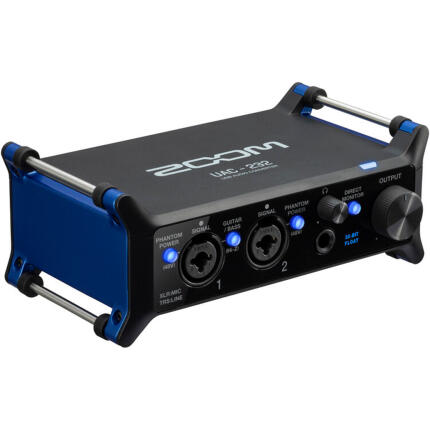

Zoom UAC-232 Audio Interface
Key Features
- Designed for musicians, podcasters, and livestream creators
- USB bus-powered operation for both Mac and Windows systems
- Two versatile F-Series preamps supporting mic, line, and Hi-Z inputs
- High-resolution 32-bit float recording with up to 192 kHz AD/DA conversion
- Dedicated stereo line outputs plus a headphone output for monitoring
- 48V phantom power and zero-latency direct monitoring capability
- Integrated loopback functionality for streaming and content creation
- Flexible routing options optimized for music production and streaming workflows
- MIDI input and output via standard 5-pin DIN connectors
- Includes free Mix Control software for setup, routing, and monitoring control
OVERVIEW
Elevate Your Recording Experience
The ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface, designed for creators who demand more quality in their productions.
No Need to Set Gain
Whether you're recording in the studio or on stage, sound levels can fluctuate. The UAC-232’s 32-bit float technology captures clip-free, low-noise recordings without the need to set gain.
Our Finest Preamps
Featuring the same clean, low-noise preamps used in our professional F-Series recorders, the UAC-232 guarantees high-quality recordings in any setting.
BUILT FOR CREATORS
For Music
Whether you’re recording or streaming live, with 32-bit float technology you don’t have to worry about getting the ideal input gain or monitoring your levels.
For Podcasts & Voiceovers
For podcasters and voiceover artists, 32-bit float ensures full quality audio for the entire dynamic range of a performance. It also protects against clipping when levels are not being monitored.
More Control
The UAC-232 Mix Control software allows you to modify I/O routing, activate loopback, and control input and monitoring levels. You can also activate Music mode to route to your DAW or Streaming mode combining all inputs into a single signal for streaming software.
Loopback
The Loopback function combines the input audio with playback from your computer and routes it to your software. Perfect for adding background music to your stream or singing live with an instrumental track.
Latency-Free Monitoring
Use the Direct Monitor switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.
Mix Control allows you to adjust volume and pan for your direct monitor feed.
POWERFUL HEADPHONE OUTPUT
Monitor louder and clearer with the 100 milliwatt headphone output. Enough power to drive the most demanding headphones with no distortion.
Compatibility
Connect the UAC-232 via USB when recording and streaming on PC and Mac with software like Cubase, Pro Tools, OBS and more.
Record and stream in 24-bit with iOS devices using Apps such as Garage Band, YouTube, and instagram.
*Bus powered with PC, Mac and use external power when working with a lightning enable iOS device
Brand
detailed specifications
| Impedance | XLR Mic/Line Inputs: 2.7 Kilohms 1/4" Mic/Line Inputs: 4 Kilohms 1/4" Line Outputs: 100 Ohms 1/4" Hi-Z Inputs: 1 Megohm 1/8" / 3.5 mm Headphone Outputs: 12 Ohms |
| USB Port | 1x USB-C (Power Input) |
| Power Requirements | USB Bus Power |
| Microphone Input | 2 |
physical specifications
| Weight | 12.5 oz / 355.0 g |
| Dimensions | 6.5 x 4.2 x 2.6" / 164 x 105.5 x 65 mm |
a/v mode
| Audio Input | 2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 2x 1/4" TRS Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
a/v details
| XLR Input | 2x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input |
microphone specifications
| Sample Rate | 44.1 to 192 kHz |
wireless transmitter specifications
| Frequency Response | 20 Hz to 60 kHz /-1 (at 192 kHz) 20 Hz to 40 kHz /-1 (at 96 kHz) 20 Hz to 20 kHz /-1 (at 44.1 kHz) |
- Zoom UAC-232 USB-C Audio Interface
- USB-C Cable
- 2 x Flat Cable Fastener
- Limited 1-Year Manufacturer Warranty
No creators have tagged this product yet.
Articles featuring this product
Essential Accessories for Videography: Gimbals, Microphones & Lights — Head-to-Head Picks
Apr 29, 2026
·
Unique Photo
Essential Gear for Feature Photography Assignments: Zoom H6Essential Recorder Review
Apr 20, 2026
·
Unique Photo
Essential Audio Gear for Wedding Videographers: Smart Recommendations for Cleaner Ceremony and Recep
May 31, 2026
·
Unique Photo
Community questions about this gear
Ask a question
0
votes
2
answers
75
0
votes
2
answers
61
How can I make the Photoshop interface larger on a high-resolution monitor?
Photography Stack Exchange contributor
13y ago
You may also like

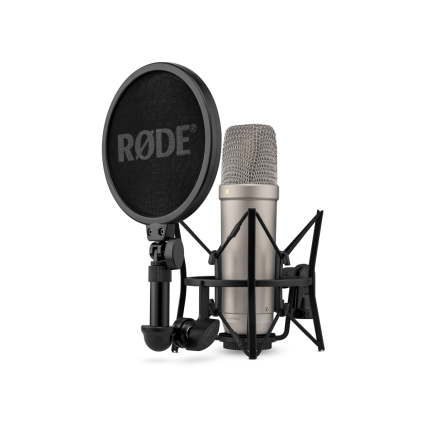

Rode NT1 5th Generation Silver
- Large-diaphragm (1-inch) gold-sputtered condenser capsule
- Cardioid polar pattern
Rode PodMic Dynamic Podcasting Microphone
- Designed for Podcasting & Broadcasting
- XLR Mic Designed for Speech

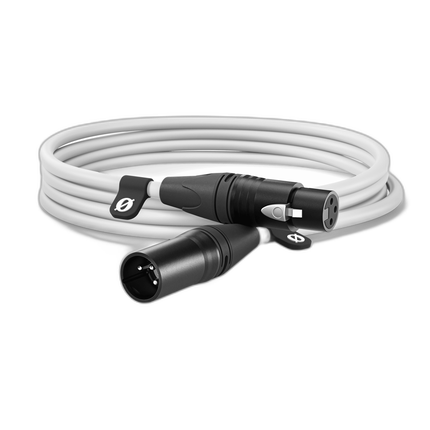

Rode XLR Cable White - 9.8ft
