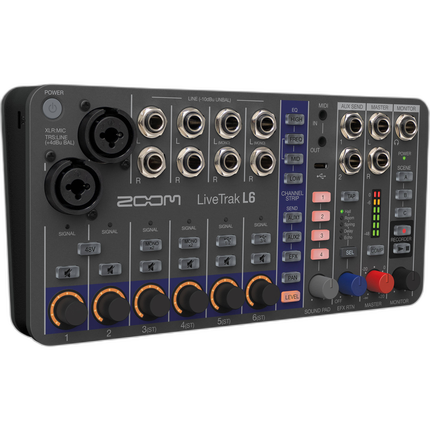

Zoom Livetrak L6

Key Features
- Portable Multitracking Mixer/Recorder
- 2 XLR-1/4" Mic/Line Inputs with +48V
- Multitrack Recording via microSD and USB
- 4 Assignable Sound Pads (Sample Player)
- Built-In Effects and 3-Band EQ
- Headphone/Monitor Output
- Eurorack Compatible
- 3 Scene Memory
OVERVIEW
Small Just Got Very Big
The LiveTrak L6 is our most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it’s perfect for bands, synth players, live streaming, and more.
Full Featured Mixer
Don’t let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a
3-band mid-sweepable EQ.
Powerful Multi-Track Recording
The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.
MIDI Connectivity
for Synths and Keyboards
Connect, program, and sync the L6 to your outboard gear
via the 3.5mm MIDI I/O, or to a computer via USB.
- Map parameter controls such as volume, pan, and EQ to outboard gear
- Trigger sound pads and scene switching
- Tempo sync delay and echo
Record & Control
The L6 can be used as a 32-bit float 12-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the microSD card. It’s also a control surface for your favorite DAW.
Broadcast & Stream
The L6 is the perfect companion for video streams that need broadcast quality audio, no matter the location. Connect to your favorite streaming software on PC, Mac, iOS, and Android devices.
Use it Anywhere
Use four AA’s for up to 3 hours of power or a USB battery for extended portable use.
Advanced Compressor
The L6’s main output compressor increases loudness while adding natural saturation.
With 32-bit float the audio will never clip, even at high volume.
Sound Pads
Trigger pre-recorded backing tracks or samples using one of the four sound pads. You can also sample in real time for live jams and performances.
L6 Editor Software
Access MIDI programming and settings, such as effect parameters, AUX send points, sound pads, and more with the L6 Editor Software.
Eurorack It
The L6 is mountable to a standard Eurorack case using the optional ERL-6 rack ears and power supply.
Brand
detailed specifications
| USB Port | 1x USB-C 2.0 (Host Connection) |
| Power Requirements | Battery, Bus Power (USB) |
| Microphone Input | 2 XLR-1/4" Mic/Line Inputs with +48V |
physical specifications
| Weight | 1.3 lb / 0.6 kg |
| Dimensions | 8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm |
a/v mode
| Audio Input | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input | 8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs) |
a/v details
| XLR Input | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input |
wireless transmitter specifications
| Frequency Response | 20 Hz to 20 kHz -1 dB |
- Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder

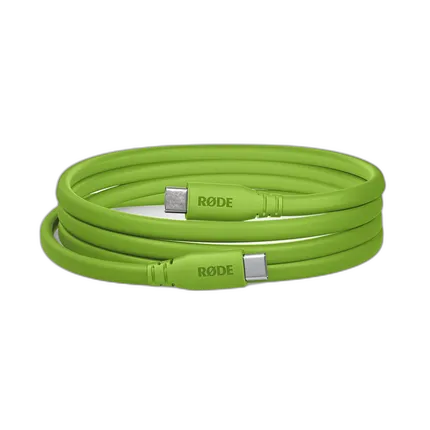

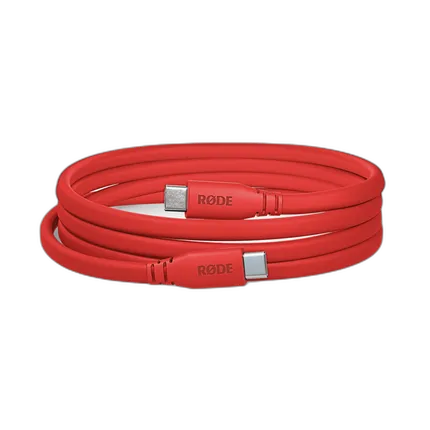

- USB Cable
