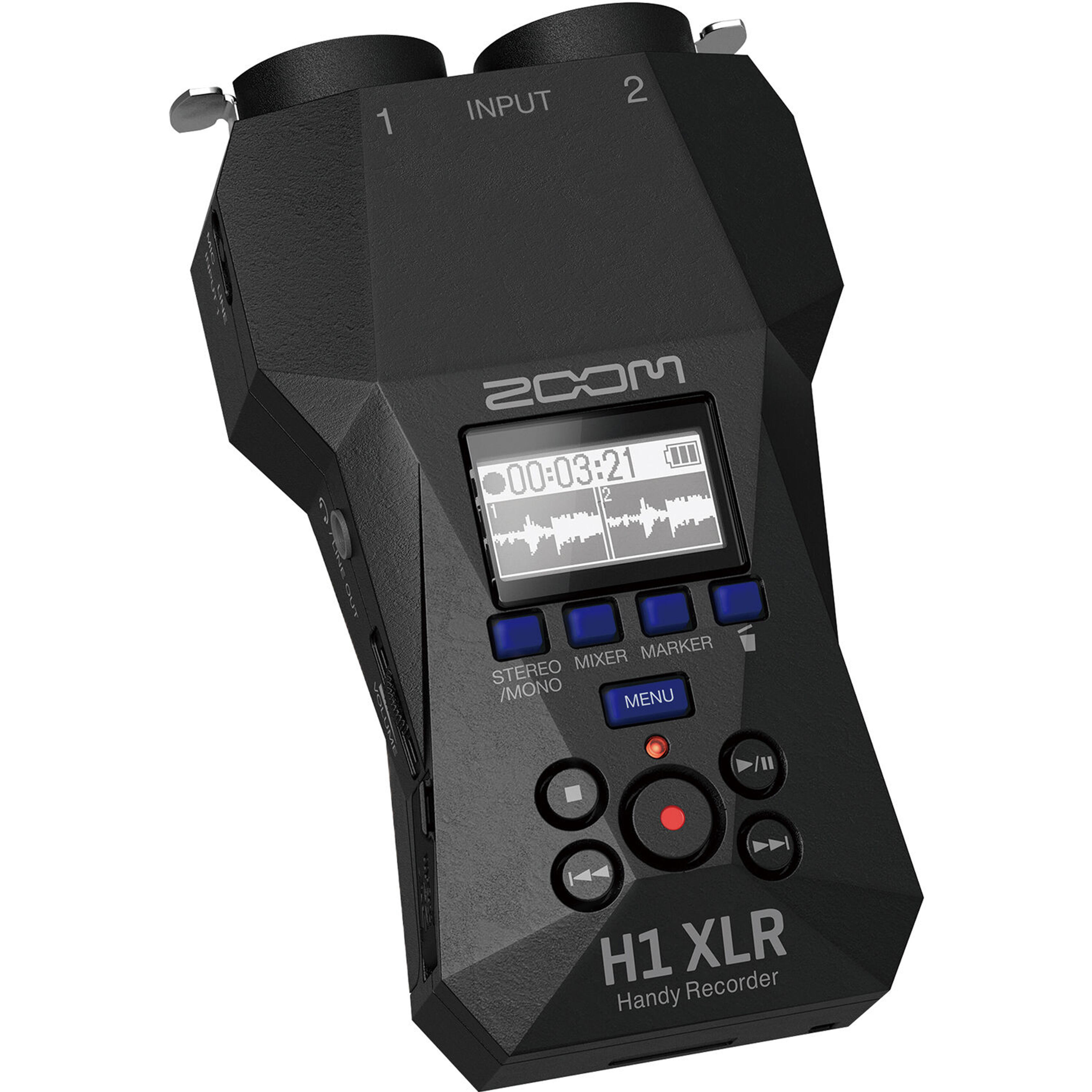

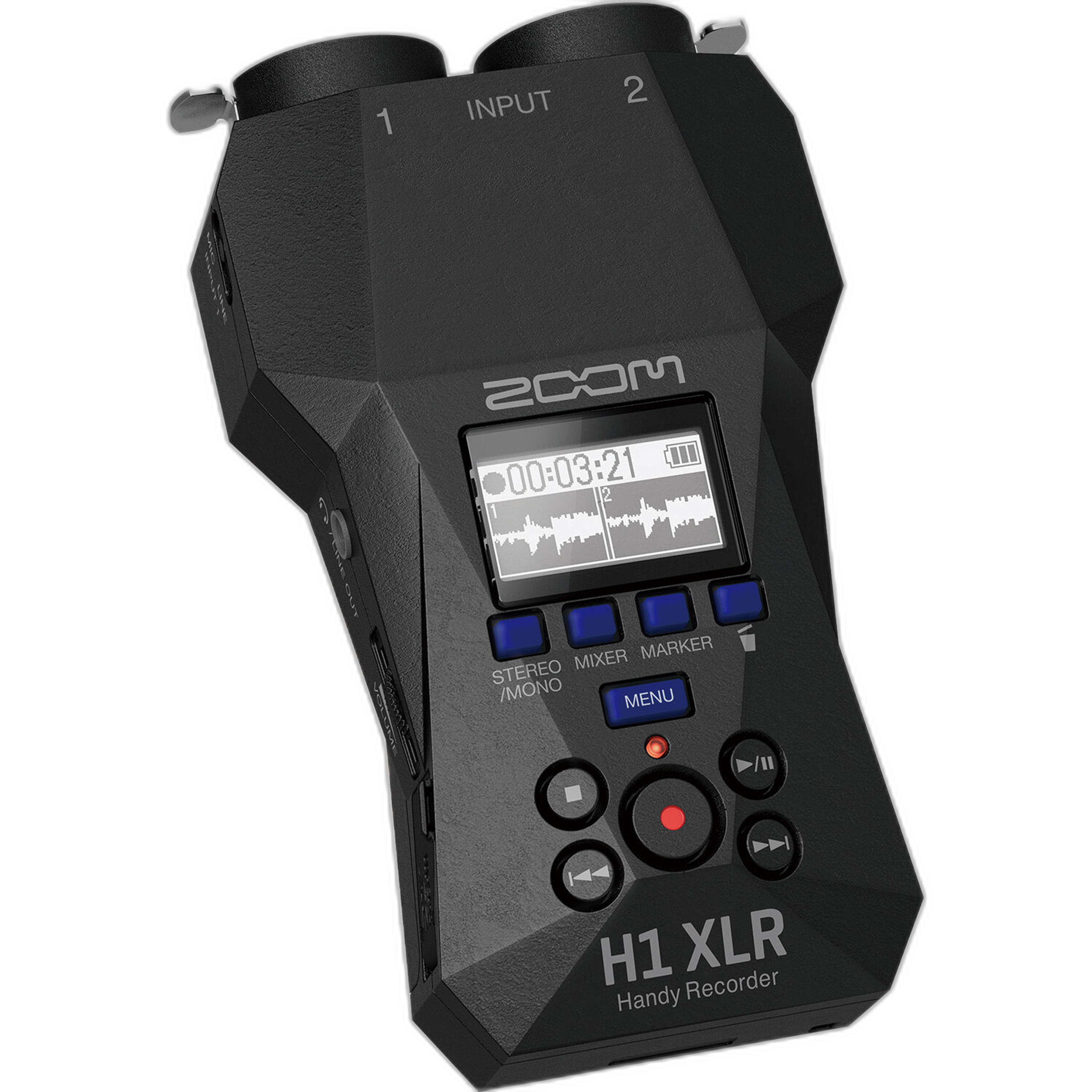

Zoom H1 XLR Handy Recorder
Key Features
- For Content Creators and Audio for Video
- Two XLR-1/4" TRS Combo Inputs
- Ultralow Noise Mic Preamps
- Clip-Free 32-Bit Float Recording
- Flexible 3.5mm Stereo Input
- USB-C for Computers and Smart Devices
- Integrated Mixer with Bright OLED Screen
- Built-In Phantom Power and Plug-In Power
OVERVIEW
Go Anywhere, Record Anything
The H1 XLR is the recorder for creators who know no limits. Capture audio for video, direct feeds from mixers, song ideas and more.
Input Flexibility
Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more.
The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources.
Never Worry About Gain… Again
Plug in, hit record, and capture your audio worry-free. With 32-bit float and dual AD converters, the H1 XLR's vast dynamic range preserves details in both quiet and loud recordings.
Ultra-Clean Preamps
The H1 XLR’s preamps give you crystal clear audio with a -122dB EIN and sample rates up to 96khz.
Line Level Like a Pro
Capture +4dBu professional line level signals to record clip-free audio from any mixer or line output.
Stereo or Mono
The H1 XLR can record both stereo and mono files depending on your application.
The Sound Designer’s Companion
With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.
32-bit Float Audio Interface
Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface while simultaneously recording to the SD card.
Brand
detailed specifications
| Impedance | Mic Inputs: =3.8 Kilohms | Line Inputs: =39 Kilohms | 1/8" / 3.5 mm Inputs: =2 Kilohms |
| USB Port | 1x USB-C (2.0) |
| # Of Channels | 3 (2 x Mono, 1 x Stereo) |
| Form Factor | Field Recorder |
a/v details
| Audio Headphone Jack | 1x 1/8" / 3.5 mm TRS Female Headphone Output |
| XLR Input | Two XLR-1/4" TRS Combo Inputs |
| Built-In Microphone | No |
| Recording Formats | BWF, iXML, WAV |
physical specifications
| Dimensions | 4.2 x 2.4 x 1.5" / 10.7 x 6.2 x 3.9 cm |
| Weight | 5.8 oz / 164 g |
recorder specifications
| Number of Simultaneous Recording Tracks | 2 (3 Inputs + Stereo Mix) |
battery/charger attributes
| Power Requirements | Battery, USB Bus Power |
| Battery Runtime | 12 Hours (Alkaline) | 11 Hours (NiMH) | 19 Hours (Lithium) |
| Battery Type | 2x AA |
| Supported Battery | AA |
interface
| Memory Card Slot | microSDXC (4 GB 1 TB) |
