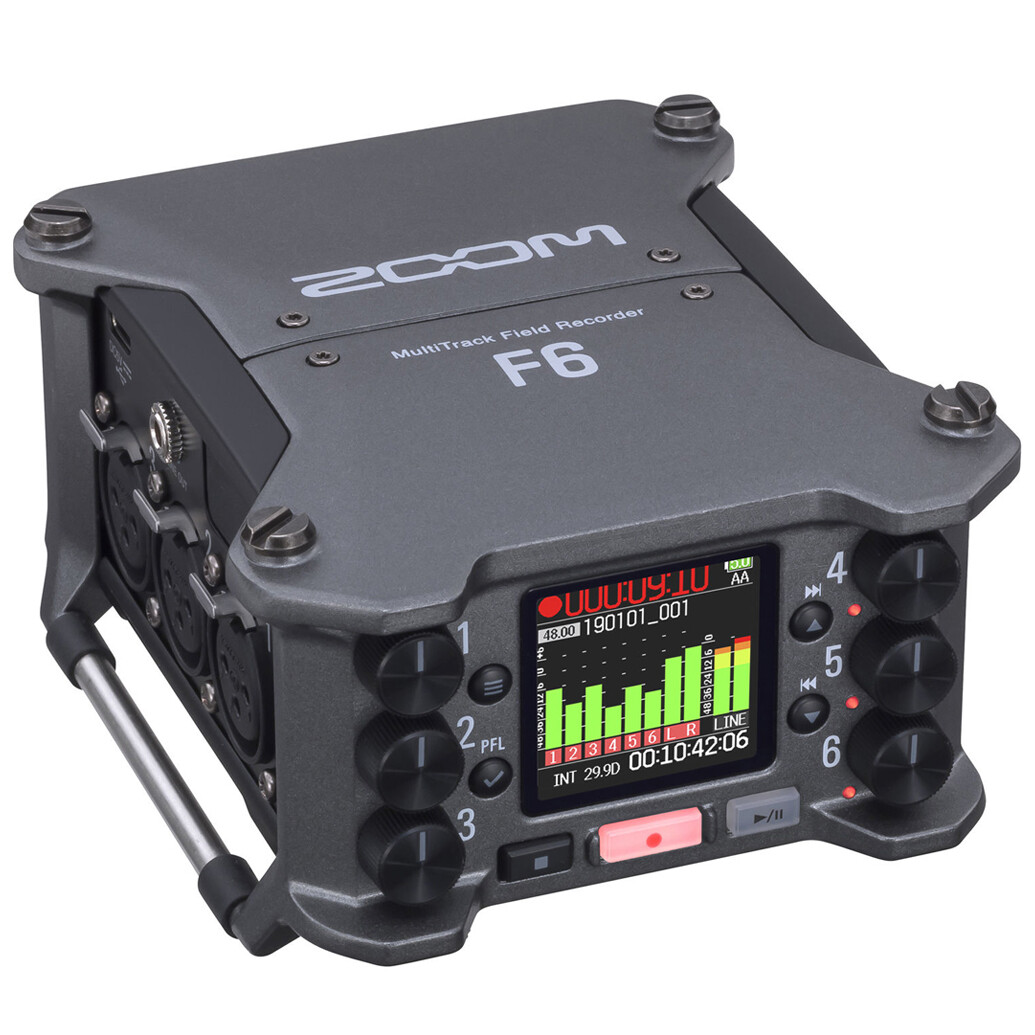

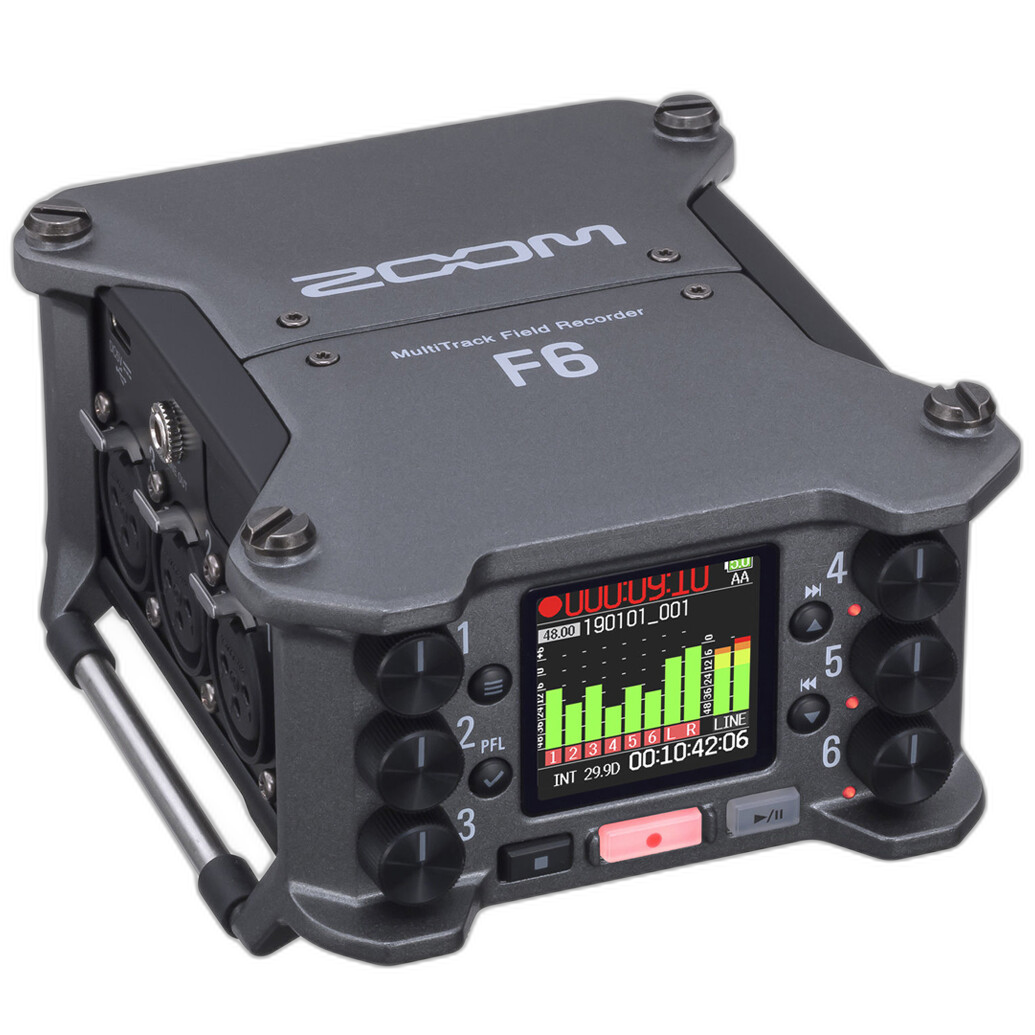

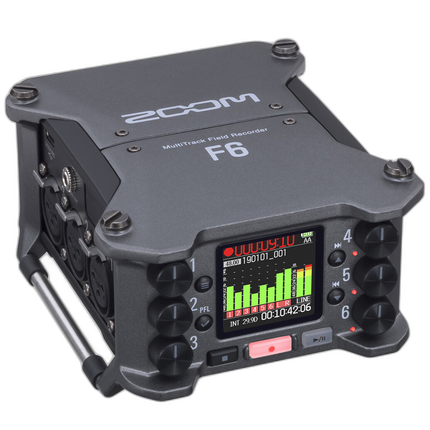

Zoom F6 Field Recorder
Key Features
- 6-channel/14-track field audio recorder/mixer
- 6 discrete inputs with locking Neutrik XLR connectors
- High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
- Switchable +4dB inputs with mic/line options
- Three different power supply options: 4x AA batteries, Sony L-Series batteries, or Zoom AD-17 12V AC Adapter (L-Series batteries not included)
- 3.5mm stereo mini unbalanced output jack
- Dedicated headphone output (100 mW) with volume control
- SD/SDHC/SDXC card slot, up to 512 GB
- Use as an 6-in/4-out USB audio interface (up to 96kHz)
- Use as an audio interface and record to SD card simultaneously (up to 48kHz)
- Free Zoom F Control App for iOS allows wireless remote control, file renaming, and metadata entry
OVERVIEW
The Zoom F6 is the first professional field recorder to feature both 32-bit float recording and dual AD converters, providing an unprecedented amount of dynamic range. With 6 inputs, Zoom’s solid time code, multiple power options and wireless control, the F6 is poised to be your new secret weapon.
32-bit Float Recording
In the field, fluctuating dynamics can prove challenging. Loud sounds can cause clipping and quiet sounds can get lost in the noise. The F6 uses 32-bit float recording with dual A/D converters to capture both explosive and subtle sounds at full audio quality – without ever needing to adjust gain!
Mic Preamps
The F6 is equipped with six professional-grade preamps. Featuring a super-low noise floor (-127 dBu EIN), high gain (up to 75 dB), and selectable mic/line levels for each input, the F6 is built for location sound.
Precision Time
Keep your tracks perfectly synced even when you power down for lunch. On or off, the F6’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.
Advanced Look-Ahead Hybrid
When recording in 24-bit, the F6 uses advanced look-ahead hybrid limiters to provide overload protection. By adding a 1-millisecond delay, the limiters “look ahead” anticipating clipping before it’s recorded.
ZOOM AUTOMIX™
Zoom AutoMix™ lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.
Ambisonics Audio
The F6’s Ambisonics mode offers precision A-to-B decoding and balanced gain linking, enabling you to capture spatial audio for VR, AR and more.
Brand
detailed specifications
| Headphone Monitoring | Yes |
| # Of Channels | 8 (6 Inputs + Stereo Mix) |
a/v details
| XLR Input | 6 x XLR 3-Pin Female Balanced Line/Mic Input (Lockable) |
| Audio Headphone Jack | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
- F6 Field Recorder
- Camera mount adapter
- Quick Start Guide
