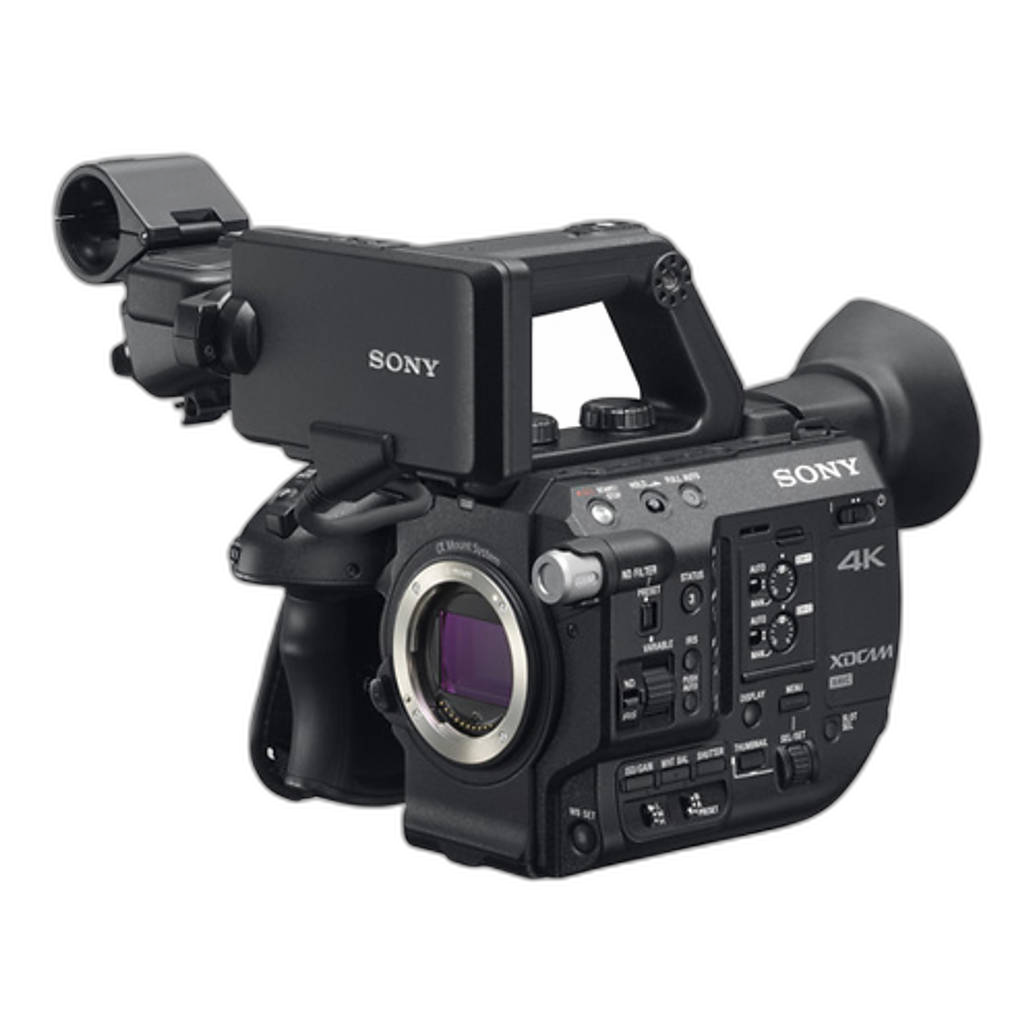

Used Sony PXW-FS5 XDCAM Super 35 Camera - Good


Key Features
- Ultimate mobility with adaptable design
- 4K Super 35 Exmor sensor
- 240 fps slow motion
- Lightweight but robust
- Versatile monitoring
- Modular design for easy integration
- Networked for high mobility
- High Frame Rate (HFR) recording
- Built-in electronic Variable ND Filters
- Clear Image Zoom
- Accurate OLED viewfinder
- Dual XLR inputs & media slots
Recommended Accessories
Available for Rent
Overview
The Sony PXW-FS5 XDCAM Super 35 is an advanced camera system that is compact in size and incorporates professional features that differentiate it from consumer and DSLR cameras for shooting documentaries, reality TV, and other commercial content. It has standard ¼-inch screw holes that let you mount the video camera onto a wide range of gimbals, drones, or underwater housings. The inbuilt Super 35 Exmor sensor allows you to capture 100 Mbps 4K videos at a massive resolution of 3840 x 2160 pixels with the help of Sony's revolutionary XAVC (Long GOP) recording system. Furthermore, you can perform flawless 10x slow motion recording at a 240 fps frame rate for added flexibility.
Optics and Focus
The Sony PXW-FS5 XDCAM is compatible with a wide range of lenses that have outstanding apertures and focal lengths. This video camera has a brilliant shutter speed of 1/10,000th of a second and an ISO sensitivity rating of 3200. Use the Centre Scan mode for supporting older Super 16 mm cinema lenses. It selectively produces an output of 2160 x 1080 pixels from the sensor’s centre for giving the FS5 all the characteristics of a Super 16 mm film camera and avoids any unwanted vignetting. Lastly, the inbuilt electronic variable ND filter lets you capture high-quality videos in any environment without requiring any third party filters.
Sensor and Screen
The PXW-FS5 XDCAM camera system from Sony is equipped with a Super 35 Exmor sensor allows you to capture 100 Mbps 4K videos at a large 3840 x 2160-pixel resolution. This can be done with the help of Sony's sophisticated XAVC (Long GOP) recording system. The high-quality 0.39-inch OLED viewfinder is perfect for both left-eye and right-eye viewing and has a 1440k-dot resolution.
Image and Video
This camera can shoot 100 Mbps 4K videos at a resolution of 3840 x 2160 pixels in the MPEG-4 AVC/H.264 format with Sony’s XAVC (Long GOP) recording system. You can conduct flawless 10x slow motion recording at a 240 fps frame rate for added flexibility.
Other Features
The Sony PXW-FS5 XDCAM video camera also has standard ¼-inch screw holes for mounting the video camera onto a large variety of gimbals, drones, or underwater housings. The inbuilt WiFi and NFC connectivity options come in handy for controlling the video camera remotely via a smartphone or tablet. For additional storage space, this camera features two SD Media Card slots. The HDMI and HD/3G-SDI ports are useful for viewing captured content on a wide range of devices. A long-lasting BP-U30 battery pack powers this camera.
Brand

a/v details
| Frame Rate | XAVC- QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps; (1920 x 1080) @59.94p, 50p, 50Mbps/35Mbps; (1920 x 1080)@59.94i, 50i, 50Mbps/35Mbps/25Mbps; (1920 x 1080)@29.97p, 25p, 23.98p, 50Mbps/35Mbps; (1280 x 720)@59.94p, 50p, 50Mbps AVCHD - (1920 x 1080)@59.94p, 50p, PS mode(28Mbps); (1920 x 1080) @59.94i/50i/29.97p/25p/23.98p, FX mode (24Mbps), FH mode(17Mbps); (1280 x 720)@59.94p, 50p, FX mode(24Mbps), FH mode(17Mbps), HQ mode(9Mbps) |
physical specifications
| Color | Black |
| Dimensions | Body Only: 4.50 x 5.13 x 6.88" / 11.43 x 13.02 x 17.46 cm (approx) Body, Lens & Accessories: 7.38 x 8.63 x 6.88" / 18.73 x 21.91 x 17.46 cm (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip) |
| Weight | Body Only: 29.2 oz / 827.8 g Body, Lens & Accessories: 4.9 lb / 2.23 kg (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip) |
detailed specifications
| Power Requirements | DC 14.4V ?battery pack); DC 12.0V (AC adaptor) |
| HDMI Terminal | HDMI connector (Type A) |
| Total Pixels | 11.6 M total pixels |
| Minimum Illumination | 60i: 0.16 lx (iris f/1.4, gain auto, shutter speed 1/24) 50i: 0.18 lx (iris f/1.4, gain auto, shutter speed 1/25) |
| USB Terminal | Multi/Micro USB jack |
| Megapixels | 11.6MP |
| Compatible Media | MS/SD (dual Memory Stick/SD) |
| Video Terminal | Integrated into Multi/Micro USB jack Composite 1.0Vp-p75 |
| Accessory Shoe | Multi-Interface (MI) shoe |
| Maximum Recording Time | XAVC-LONG: XAVC-L QFHD 100 mode (Approx. 65 min with 64 GB memory card); XAVC-L QFHD 60 mode (Approx. 100 min with 64 GB memory card); XAVC-L HD 50 mode (Approx. 120 min with 64 GB memory card);XAVC-L HD 35 mode (Approx. 170 min with 64 GB memory card); XAVC-L HD 25 mode (Approx. 220 min with 64 GB memory card) AVCHD: AVCHD@LPCM 2ch PS Mode (Approx. 290 min with 64 GB memory card,Approx. 145 min with 32 GB memory card); AVCHD@LPCM 2ch FX Mode (Approx. 340 min with 64 GB memory card, Approx. 170 min with 32 GB memory card); AVCHD@LPCM 2ch FH Mode (Approx. 450 min with 64 GB memory card, Approx. 225 min with 32 GB memory card); AVCHD@LPCM 2ch HQ Mode (Approx. 590 min with 64 GB memory card, Approx. 290 min with 32 GB memory card) |
| Max Resolution | 3840 x 2160 |
| Microphone Terminal | Omni-directional stereo electret condenser microphone |
imaging & exposure control
| White Balance | Preset (3200K), Memory A, Memory B/ATW |
| ISO Speed | S-Log2/S-log3 Gamma ISO3200 |
camera attributes
| Effective Pixels | 11.6 million total pixels and 8.8 million effective pixels |
| Image Sensor Size | 35mm |
image sensor
| Sensor Type | CMOS |
shutter
| Remote Control | Yes, Stereo mini jack (?2.5 mm) |
| Max Shutter Speed | 1/8 to 1/10000 sec. (60i) 1/6 to 1/10000 sec. (50i/24p) |
viewfinder specifications
| Viewfinder Type | 1.0 cm (0.39 type) OLED Approx. 1.44M dots |
a/v mode
| Video Recording System | XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile; XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile; AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible |
display & viewfinder
| Screen Size | 8.8cm (3.5 type) |
| Monitor Resolution | Approx. 1.56M dots |
power system
| AC Adapter | DC 12.0V |
