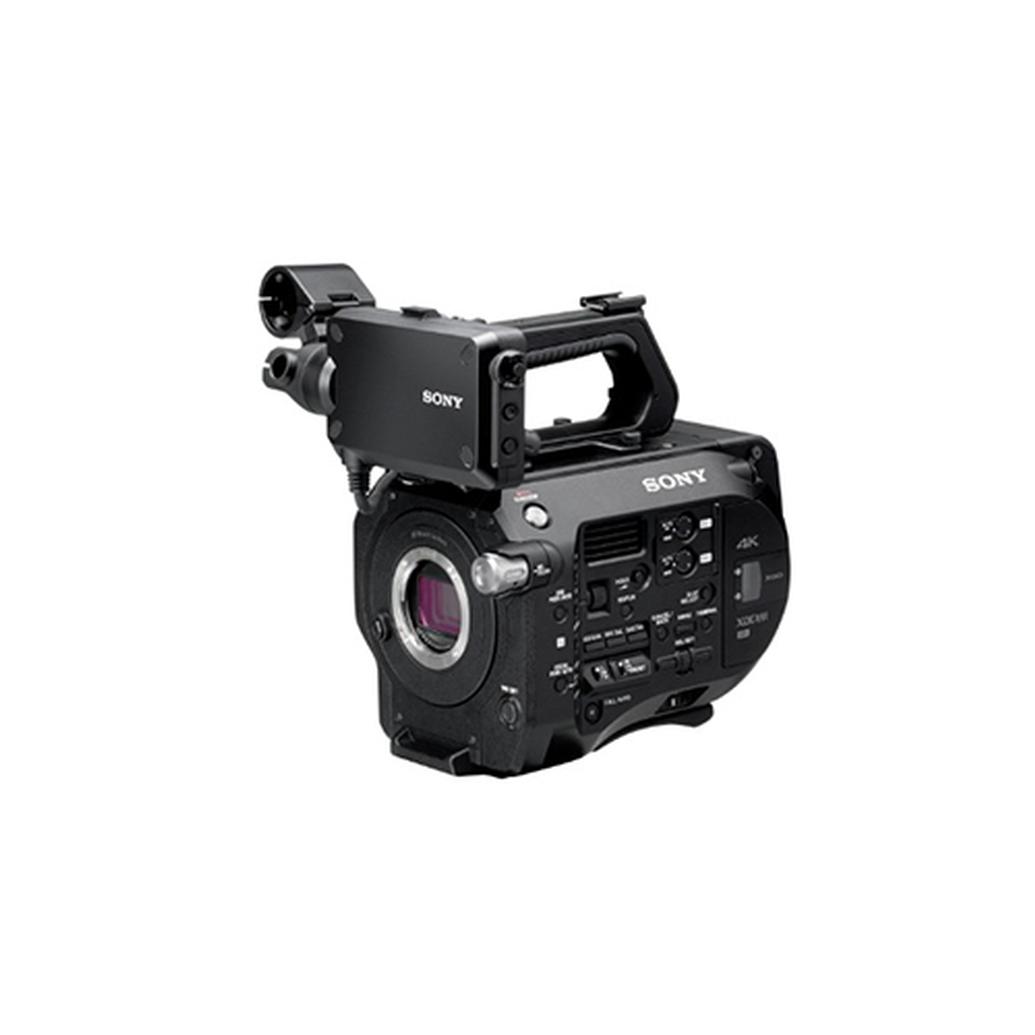

Sony PXW-FS7 XDCAM Super 35 Camera System


Key Features
- Lightweight ergonomic design
- 4K Super 35mm Exmor CMOS sensor
- Dust-proof, drip-proof design
- Built-in Multi-Interface (MI) Shoe
- Internal recording in 4K resolution up to 60fps
- Super Slow Motion continuous recording
- a Mount System with E-mount lens mount
- Extension Unit XDCA-FS7 for shooting support
- Built-in ND filter unit
- 2 XQD media slots
- Use of A-mount lenses via LA-EA4 lens adaptor
- Parallel recording with HXR-IFR5 & AXS-R5
Overview
Take your passion for cinematography to the next level with the Sony PXW-FS7 XDCAM Super 35 Camera System PXW-FS7. The lightweight, ergonomic design is resistant to dust as well as dripping and comes with a high-quality grip handle, which enables you to use the camera for a longer duration with less fatigue. It boasts a high-sensitivity, single-chip super 35 mm Exmor CMOS sensor, which allows you record videos at a stunning 4K resolution. This camera can execute continuous super slow motion recordings with a mesmerizing full HD image quality at an impressive frame rate of up to 180 fps. The videos are also captured at a 2K resolution and 240 fps. The camera’s mounting system is compatible with a wide range of A-mount and E-mount series lenses. The inbuilt ND filter unit enables you to shoot with an extremely low depth of field without the need of stopping down the iris even under bright light conditions. In addition, the camera also features a built-in multi-Interface shoe.
Optics and Focus
The Sony PXW-FS7’s mounting system is compatible with a wide range of A-mount and E-mount series lenses, which offer an outstanding aperture rating and focal length. The inbuilt ND filter unit enables you to shoot with an extremely low depth of field without the need of stopping down the iris even under bright light conditions. The camera’s ISO sensitivity is 2000 and the shutter speed ranges from 1/3 to 1/9000 of a second. There are three different white balance modes in the camera: memory A, memory B, and preset.
Sensor and Screen
This camera boasts a high-sensitivity, single-chip super 35 mm Exmor CMOS sensor, which allows you record high-quality videos. The 3.5-inch LCD monitor comes with a resolution of approximately 1.56M dots.
Image and Video
The PXW-FS7 records high-quality videos at a stunning 4K resolution in the RAW format at 60 fps. This camera can execute continuous super slow motion recordings with a mesmerizing full HD image quality at an impressive frame rate of up to 180 fps. The videos are also captured at a 2K resolution and 240 fps. Additional video formats supported in this camera are XAVC, MPEG-2, and long GOP.
Other Features
In addition, the Sony PXW-FS7 camera also features a built-in multi-Interface shoe, which lets you connect a wireless microphone and other useful devices. The lightweight, ergonomic design is resistant to dust as well as dripping and comes with a high-quality grip handle, which enables you to use the camera for a longer duration with less fatigue. Transfer videos from the PXW-FS7 to a computer and other devices by using the USB port. Powering the camera is a long-lasting BP-U30 battery pack.
Brand

imaging & exposure control
| White Balance | Preset, Memory A, Memory B(1500K-50000K)/ATW |
| ISO Speed | ISO 2000(S-Log3 Gamma D55 Light source) |
detailed specifications
| Minimum Illumination | 0.7 lx (+18dB,23.98P,Shutter OFF,ND Clear, F1.4) |
| Microphone Terminal | Built-in Microphone: Omni-directional monoral electret condenser microphone |
| USB Terminal | USB device, mini-B |
| Compatible Media | XQD Card, SD Card |
power system
| AC Adapter | MPA-AC1 |
| Battery Type | BP-U30 battery |
display & viewfinder
| Monitor Resolution | Approx. 1.56M |
| Screen Size | 3.5" (8.8 cm) |
a/v details
| HDMI Terminal | Type A |
| Camcorder Type | 4K Super 35mm Exmor CMOS sensor XDCAM camera with ? Mount lens system, 4K/2K RAW and XAVC recording options |
| Frame Rate | XAVC-I QFHD mode: 3840x2160/ 59.94P, 50P, 29.97P, 23.98P, 25P; XAVC-I HD mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P; XAVC-L QFHD mode: 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P; XAVC-L HD 50 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P; XAVC-L 35 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P; XAVC-L 25 mode: 1920x1080/59.94i, 50i; MPEG HD422 mode: 1920x1080/59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P, 29.97P, 23.98P, 25P |
physical specifications
| Color | Black |
shutter
| Shutter Speeds | 1/3 sec to 1/9,000 sec |
image sensor
| Sensor Type | CMOS |
a/v mode
| Audio Recording | LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback ONLY 2channels) |
- Sony PXW-FS7 XDCAM Super 35 Camera System PXW-FS7
- Body Cap
- Viewfinder
- Eyepiece
- Grip Remote Control
- USB wireless LAN module IFU-WLM3
- Wireless remote commander (RMT-845)
- WA Adaptor Bracket
- MPA-AC1 AC Adapter
- BC-U1 battery charger
- BP-U30 battery pack
- Power cord
- USB cable
- Operating Guide
- CD-ROM "Manuales for Solid-State Memory Camcorder"
Included in Rental:
- Sony PXW-FS7 XDCAM Super 35 Camera System
- Monitor with Arm
- Handgrip with Arm
- Metabones Canon EF to Sony E Mount Adapter
- 2x 64gb XQD Cards
- USB 3.0 XQD Card Reader
- BP-U60 Battery
- BP-U30 Battery
- Charger
- AC Adapter
- Remote
- USB Wireless LAN Adapter
- Jason Hard Rolling Case
