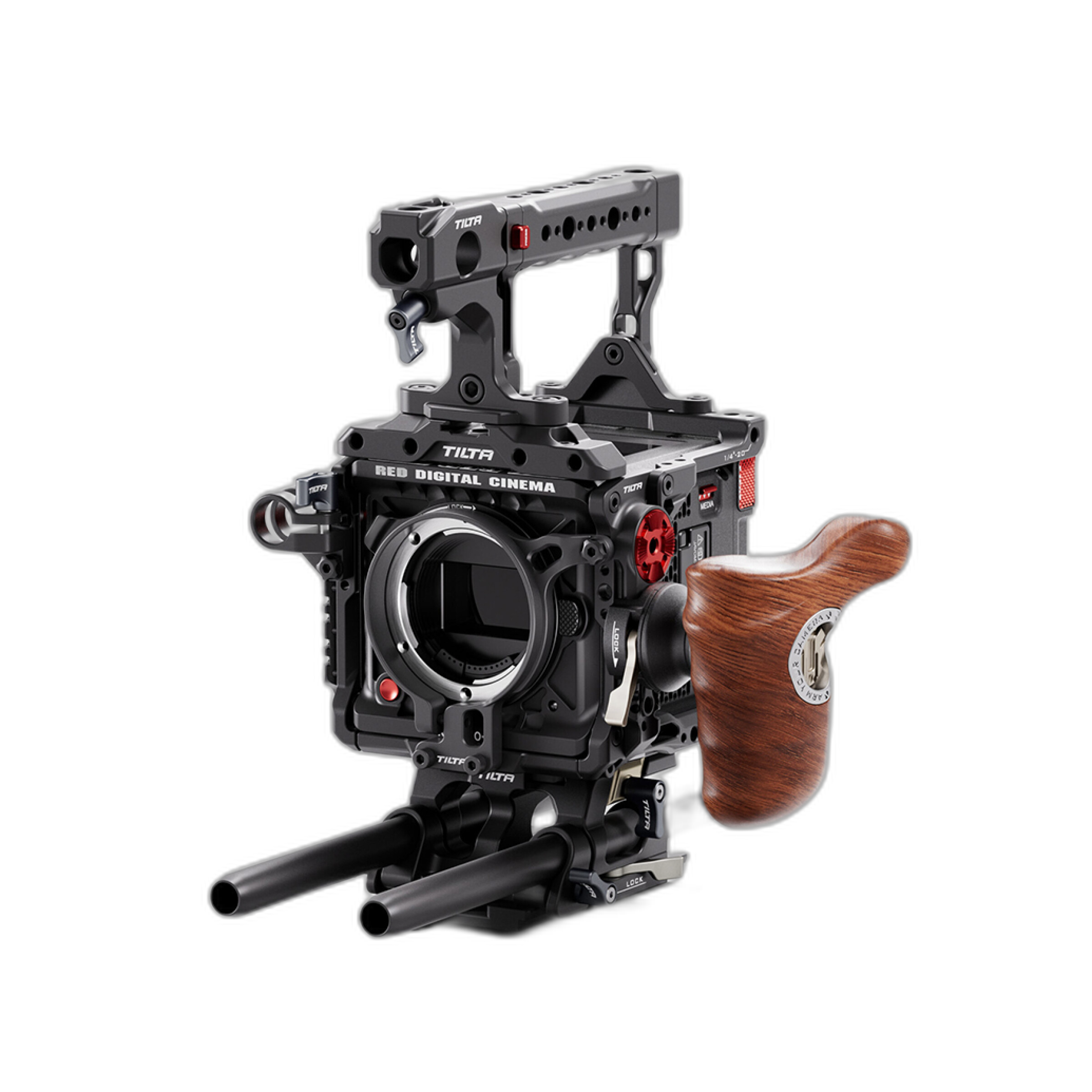

Tilta Camera Cage for RED KOMODO-X Basic Kit - Black

Tilta
Product #:
TIL1952
Manufacturer #:
TA-T53-A-B
UPC:
810076278339
  • Designed for the RED Komodo-X Cinema Camera
  • Mount Accessories from Various Types of Mounting Points
  • Modular Design to Allow for Components to be Attached or Removed
  • Foldable Top Handle that Swivals for Easier Access to the Top Screen
  • Lens Adapter Support for Supporting Larger Lenses
  • Ergonomically Designed Wooden Handle with Adjustable Positions for Maximum Comfort
Color:
Black
Color:
The color of the item.
View All Attribute Definitions
Our Price: $449.00

Earn 898 U-REWARDS Loyalty Points

Usually Ships in 7-14 days.

Pickup unavailable at Fairfield, NJ

Alert icon Alert me when this item is in-stock

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).

OVERVIEW

Introducing the Ultimate Camera Cage System for the RED Komodo-X. Enhance your filmmaking experience with our cutting-edge camera cage designed exclusively for the next generation of Komodo.

Built to safeguard your compact cinema camera, our system protects your camera in a secure and durable full camera cage, which is the foundation of this kit.

Designed with versatility in mind, the cage boasts an array of strategic mounting points including NATO Rails, a Cold Shoe Receiver, Arri Rosettes, and 1/4″-20 as well as 3/8″-16 threads with locating points.

Included with the Full Cage, our new Lens Adapter Support employs a sophisticated clamp-based design, providing multiple points of contact for improved stability.

This approach not only increases the security of your lens adapters, such as our Canon RF Mount to PL Mount Adapter but also bolsters your confidence when using larger lenses.

Experience a new level of convenience with our one-of-a-kind Foldable Top Handle which allows users to swivel the bulk of the handle out of the way, providing unobstructed access to your camera’s top screen.

This handle also features multiple points of contact to the cage while still being compatible with the DSMC3 RED TOUCH 7.0″ monitor.

This handle provides additional mounting points for accessories such as another Cold Shoe Receiver, a 15mm rod holder, 1/4″-20 and 3/8″-16 threads with locating points.

This kit includes a Left Side Wooden Handle that is carved from black walnut wood and features an ergonomic design that provides maximum comfort when operating a rig of varying sizes.

The NATO-based handle is also rotatable, allowing users to find the perfect operating position and to re-position quickly when needed.

Rounding out the kit is our 15mm LWS Baseplate which supports dual 15mm rods and rod-based accessories such as follow focus systems or matte boxes.

This baseplate features a bottom plate that is compatible with our Tilta Standard Dovetails and can be upgraded to support 19mm rods and mount to Arri Standard Dovetails via our 19mm Adapter Baseplate. (optional)

Elevate your creative potential, safeguard your equipment, and unleash the full extent of your vision with a comprehensive system that seamlessly integrates protection, versatility, and innovation.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Tilta - Tilta
Size & Weight
Weight: 4lbs
Detailed Specifications
Material: Aluminum Alloy, Stainless Steel
Material:
The substance that something is made out of.

View All Attribute Definitions

Mounting: 5x 1/4"-20 Threads
2x 3/8"-16 Mount Thread
2x Cold Shoe Receivers
NATO Rail
2x 15mm Rod Port
M4 Thread
Multiple Security Threads
Arri Standard Rosette
Mounting:
This is the mounting options for a device. Cameras are often mounted on a tripod, but there are other mounts to connect video cameras to bikes, cars, and other places.

View All Attribute Definitions

Compatibility: RED Komodo-X
Physical Specifications
Dimensions: 13" x 6" x 5"
Dimensions:
The measurements of an object.

View All Attribute Definitions

Color: Black
Color:
The color of the item.

View All Attribute Definitions

Brand
Brand: Tilta

In The Box

  • Full Camera Cage for RED KOMODO-X – Black(TA-T53-FCC-B)
    • Lens Adapter Support for RED KOMODO-X
    • Quick Release Baseplate for RED KOMODO-X – Black(TA-T53-QRBP-B)
    • Allen Key(32123.00001.00.00)
    • 3mm Allen Key(32123.00067.00.00)
  • Foldable Top Handle for RED KOMODO-X – Black(TA-T53-FTH-B)
  • Tiltaing Advanced Left Side Wooden Handle – Black(TA-ALWH-B)
  • Tiltaing Advanced Left Side Handle Attachment Type VIII – Black(TA-AHA8-L-B)
  • 15mm Side Single Rod Holder-Black(TA-SRA-15-B)
  • 15mm LWS Baseplate for RED Komodo – Black(TA-T08-BSP-B)
  • 2x Aluminum Rod 15*200mm – Black(R15-200-B)
