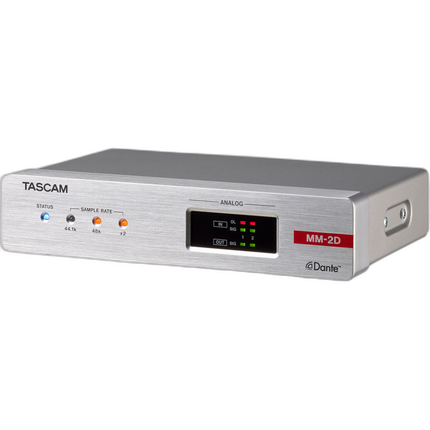

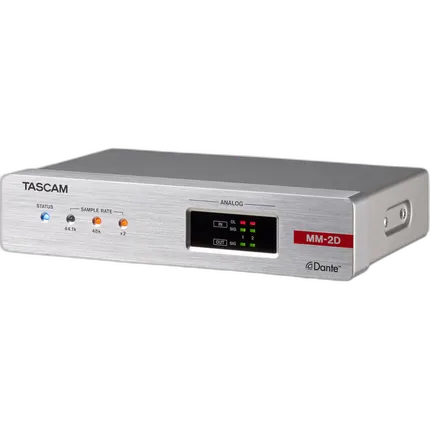

Tascam MM-2D-X 2-Ch Mic/Line Input/Output Dante Converter w/Built-In DSP Mix

OVERVIEW

The MM-2D-X is a compact converter that converts 2-channel mic/line input/output signals into Dante signals. With half the size of a standard 1U rack, the MM-2D-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-2D-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input/output.

2 Mic/Line Input/Outputs, 4 Dante Input/Outputs

The MM-2D-X can either convert 2-channel mic/line input signals into 2 Dante output signals, or 2 Dante input signals into 2-channel line output signals. In addition, it also supports 4-channel Dante input/output as well, making it possible to use audio sources within an established Dante network.

Half-Rack Size

For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

Optimal Input/Output Unit for Different Dante Systems

The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

Structuring Small Scale Systems with the DSP Function

The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.

Flexible Routing

Routing to each Dante device is easy via Dante controller - input/output units can be added to a new or already established Dante system to create flexibility.

Compatible with Dante Domain Manager and AES67 Mode

The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to ASE67 network systems is possible.

Dante Network Audio

There are some benefits when adopting the Dante Network Audio to your preexisting setup

• It is possible to have a maximum transmission of 128ch I/O with a single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits.
• All equipment can be freely connected and routed by applying star connections to provide improved connection flexibility to your current setup.
