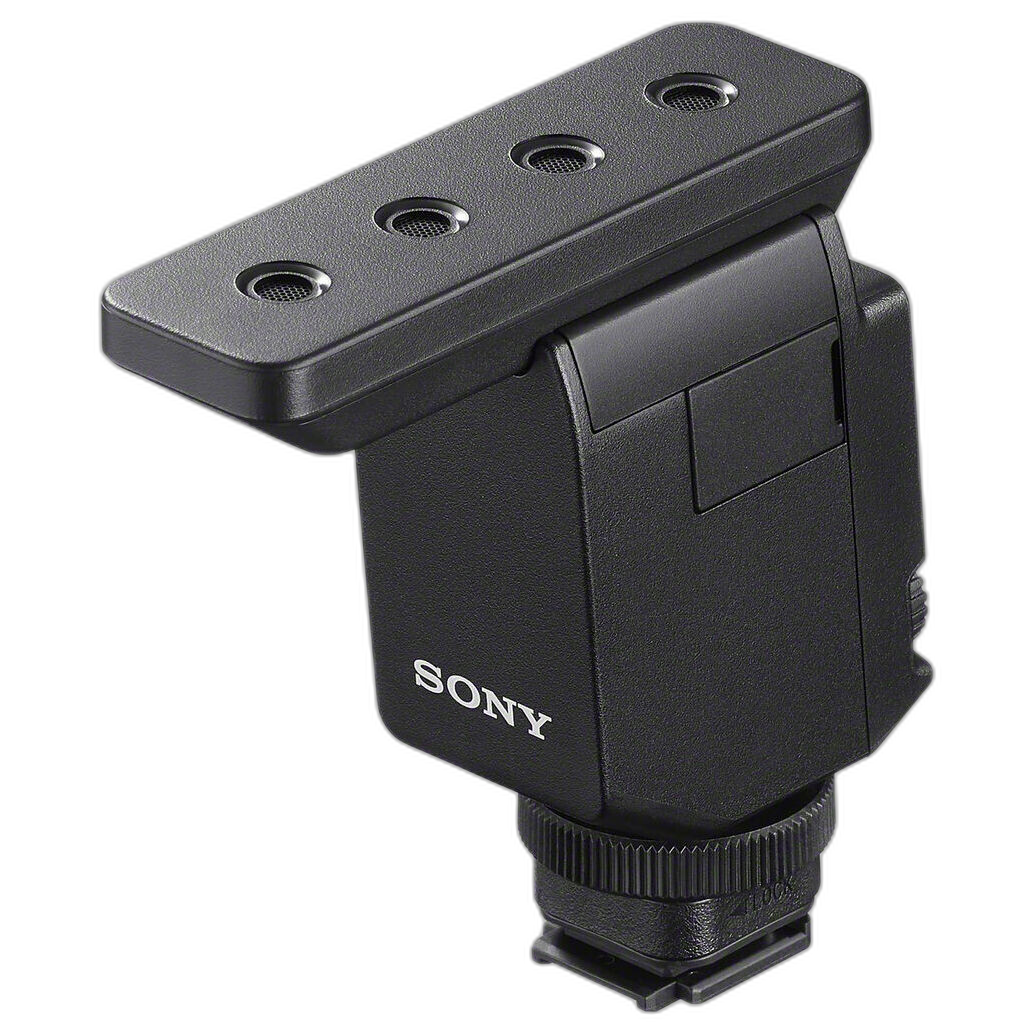

Sony ECM-B10 Compact Camera-Mount Digital Shotgun Microphone

---

OVERVIEW

Advanced Beamforming Technology

Digital signal processing using beamforming technology achieves super-directivity, ideal for interviews and selfies, where the sound collection is focused on a narrow range in front of the camera.

Compact and Portable

Even at only 3.122” (79.3mm) in length, the ECM-B10 offers impressive directional audio capture. Its small size gives you plenty of clearance for wide-angle lenses, viewfinder use, and great integrated audio even in gimbal and grip-mounted shots.

Simple Switching Operation

Choose the most suitable pickup pattern with an easy-to-reach switch A simple three-way switch on the rear panel of the microphone lets you quickly switch back and forth among the three pickup patterns, giving you the flexibility to adapt to your shooting requirements.

• Super-Directional:Ideal for interviews or selfies, the super-directional pattern collects sound from a focused area in front of the microphone, effectively suppressing sounds from off-axis and behind the camera.
• Uni-Directional:Perfect for multi-person conversations, the unidirectional pattern captures sound from a wide field in front of the microphone while minimizing pickup from behind.
• Omni-Directional:The omnidirectional pattern picks up audio equally from all directions, useful for recording environmental sounds or the voice of the camera operator.

Digital Signal Processing

Sony's proprietary algorithms enable noise reduction as well as directivity The ECM-B10 converts analogue sound to digital within the microphone body and performs digital signal processing using Sony's unique algorithms, enabling three directional pickup patterns as well as noise reduction. In-body digital conversion also helps to reduce noise inside the microphone.

High Efficient Noise Filters

Noise cut filter using digital signal processing The ECM-B10's noise cut filter is very effective at reducing extraneous ambient noises through the use of digital signal processing algorithms, maximizing audio quality at the recording stage and reducing the need for complex post processing.

Digital Audio Transmission

No audio degradation during transmission When used in combination with a camera equipped with a Multi Interface (MI) Shoe that supports a digital audio interface, the ECM-B10 transmits audio directly as a digital signal, delivering high-quality sound without degradation.

Convenient, Reliable Operation

• Cable-Free Connection:No cables are required for connection to a wide range of Sony cameras equipped with an MI Shoe, reducing interference, noise and complexity.
• Battery-Free Operation:Power is also supplied via the MI Shoes in compatible cameras, so you don't need to worry about microphone batteries running out of charge during a shoot.
• Intuitive, Easily Visible Rear Panel:Controls for audio level, pickup pattern, filters and other functions are within easy reach on the rear panel, visible at a glance for reassurance and quick adjustments during shoots.
• Supplied Wind Screen:The ECM-B10 is supplied with an effective fur-type wind screen, easily detachable, that can reduce wind noise when shooting outdoors.
• Designed to Minimize Vibration Noise:The ECM-B10 has been designed to efficiently suppress noises caused by shock and vibrations, while the cable-free design eliminates the possibility of noise caused by cable movement.
• Dust and Moisture-Resistant Design:Complementing Similarly dust and moisture-resistant camera bodies and lenses, the microphone is designed for worry-free outdoor shooting.
